Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P2011SWITCH TOGGLE SPST 10A 125V |
4,920 |
|
Datasheet |
P | Bulk | Obsolete | Panel Mount | SPST | 10A (AC) | 125 V | - | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M6 x 0.75 | Circular - 6.35mm Dia | White Cap | -10°C ~ 85°C |
|

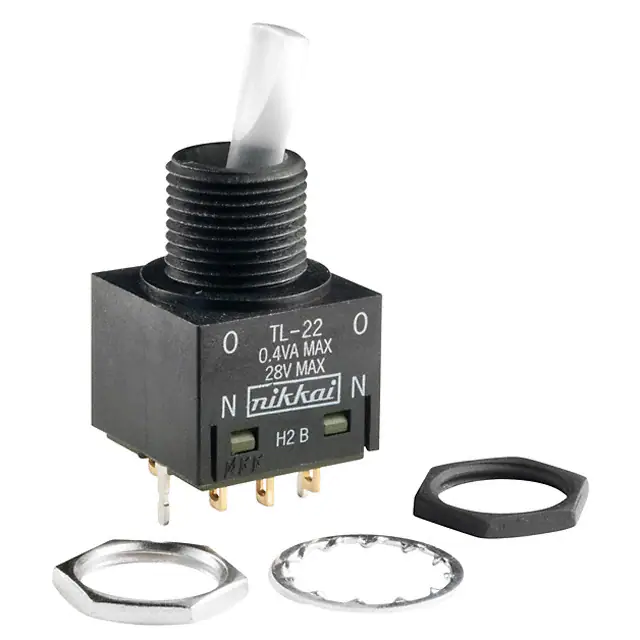

TL22SNAG016GSWITCH TOGGLE DPDT 0.4VA 28V |
1,434 |
|
Datasheet |
TL | Tray | Obsolete | Panel Mount | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Flatted | 11.00mm | Illuminated | LED, Blue | 3.6 VDC | IP65 - Dust Tight, Water Resistant | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -10°C ~ 55°C |
|

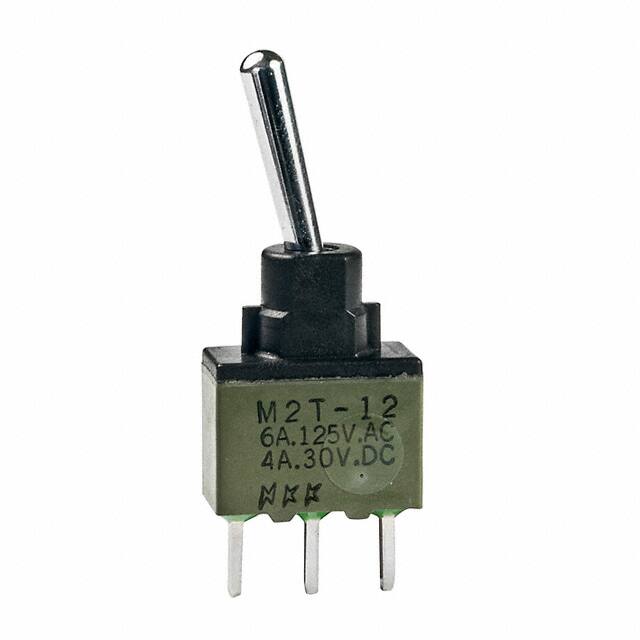

M2T12SA5W03SWITCH TOGGLE SPDT 6A 125V |
3,411 |
|
Datasheet |
M2 | Tray | Obsolete | Through Hole | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 12.70mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
M2T12SA5W13SWITCH TOGGLE SPDT 6A 125V |
3,754 |
|
Datasheet |
M2 | Tray | Obsolete | Through Hole | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 12.70mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
M2015SS2A13SWITCH TOGGLE SPDT 6A 125V |
3,537 |
|
Datasheet |
M | Tray | Obsolete | Through Hole | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2T18SA5A13SWITCH TOGGLE SPDT 6A 125V |
1,424 |
|
Datasheet |
M2 | Tray | Obsolete | Through Hole | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 12.70mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2012E2A2G30SWITCH TOGGLE SPDT 0.4VA 28V |
3,507 |
|
Datasheet |
M | Tray | Obsolete | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Flatted | 6.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

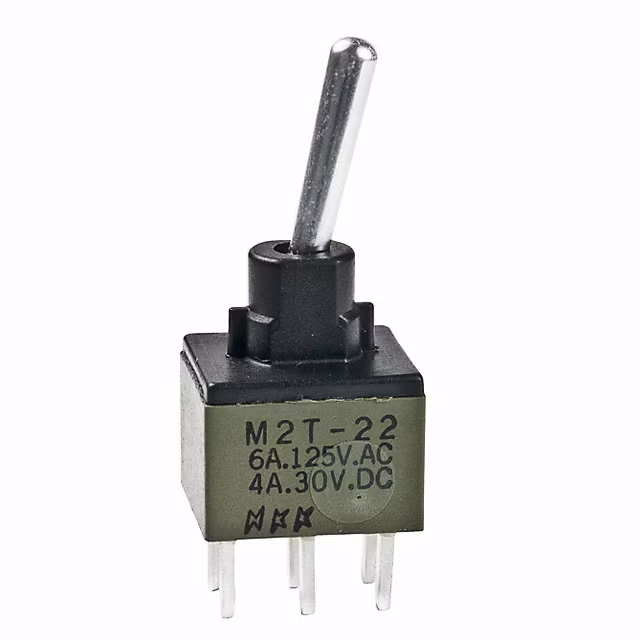

M2T22SA5W03SWITCH TOGGLE DPDT 6A 125V |
4,266 |
|
Datasheet |
M2 | Tray | Obsolete | Through Hole | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 12.70mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2T15S4A5G13SWITCH TOGGLE SPDT 0.4VA 28V |
1,807 |
|
Datasheet |
M2 | Tray | Obsolete | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Mom | Standard Round | 7.62mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|

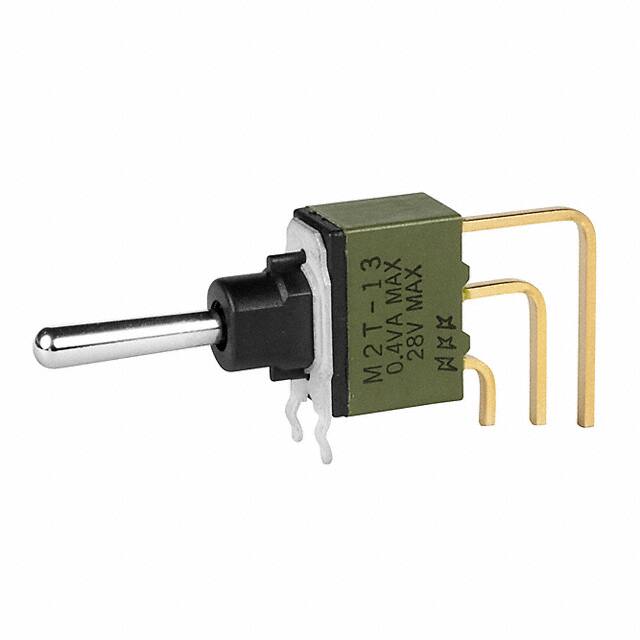

M2T13SA5G40SWITCH TOGGLE SPDT 0.4VA 28V |
3,239 |
|
Datasheet |
M2 | Tray | Obsolete | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Standard Round | 12.70mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
M2T19SA5W03SWITCH TOGGLE SPDT 6A 125V |
1,774 |
|
Datasheet |
M2 | Tray | Obsolete | Through Hole | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-Mom | Standard Round | 12.70mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|

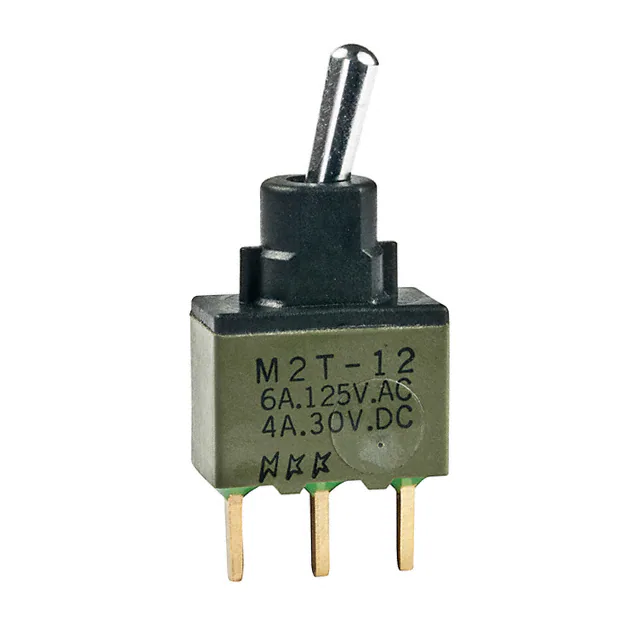

M2T12S4A5A03SWITCH TOGGLE SPDT 6A 125V |
2,152 |
|
Datasheet |
M2 | Tray | Obsolete | Through Hole | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 7.62mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
M2022S2A2G45SWITCH TOGGLE DPDT 0.4VA 28V |
4,439 |
|
Datasheet |
M | Tray | Obsolete | Through Hole, Right Angle, Vertical | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2T28SA5G03SWITCH TOGGLE DPDT 0.4VA 28V |
2,741 |
|
Datasheet |
M2 | Tray | Obsolete | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Standard Round | 12.70mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2T25SA5G03SWITCH TOGGLE DPDT 0.4VA 28V |
3,387 |
|
Datasheet |
M2 | Tray | Obsolete | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Mom | Standard Round | 12.70mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|

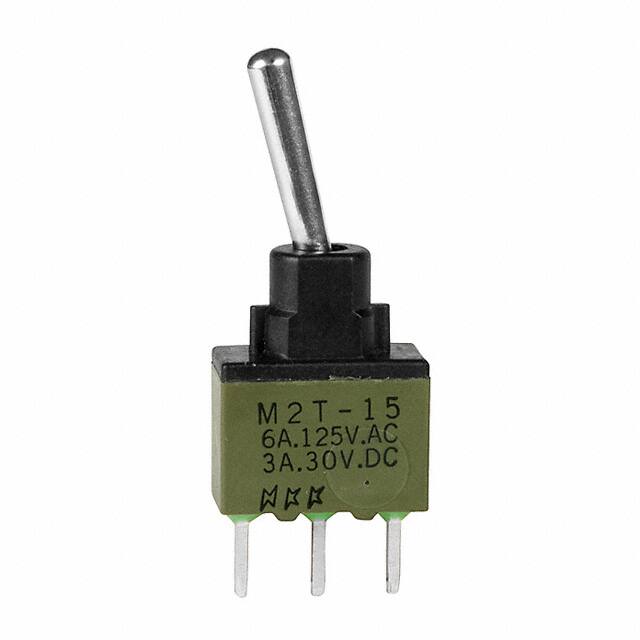

M2T15SA5W03/UCSWITCH TOGGLE SPDT 6A 125V |
3,714 |
|
Datasheet |
M2 | Tray | Obsolete | Through Hole | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Mom | Standard Round | 12.70mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
M2T22SA5A13SWITCH TOGGLE DPDT 6A 125V |
3,410 |
|
Datasheet |
M2 | Tray | Obsolete | Through Hole | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 12.70mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2T23S4A5G30SWITCH TOGGLE DPDT 0.4VA 28V |
4,906 |
|
Datasheet |
M2 | Tray | Obsolete | Through Hole, Right Angle | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Standard Round | 7.62mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
A13EB-GBSWITCH TOGGLE SPDT 0.4VA 28V |
1,303 |
|
Datasheet |
A | Tray | Obsolete | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Flatted with Cap | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | White Cap | -30°C ~ 85°C |
|
|
M2012SS2G13-BCSWITCH TOGGLE SPDT 0.4VA 28V |
2,795 |
|
Datasheet |
M | Tray | Obsolete | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Red Cap | -30°C ~ 85°C |
