Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2012SS2G30SWITCH TOGGLE SPDT 0.4VA 28V |
1,066 |
|
Datasheet |
M | Tray | Obsolete | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2012SS2G13-BESWITCH TOGGLE SPDT 0.4VA 28V |
3,948 |
|
Datasheet |
M | Tray | Obsolete | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Yellow Cap | -30°C ~ 85°C |
|

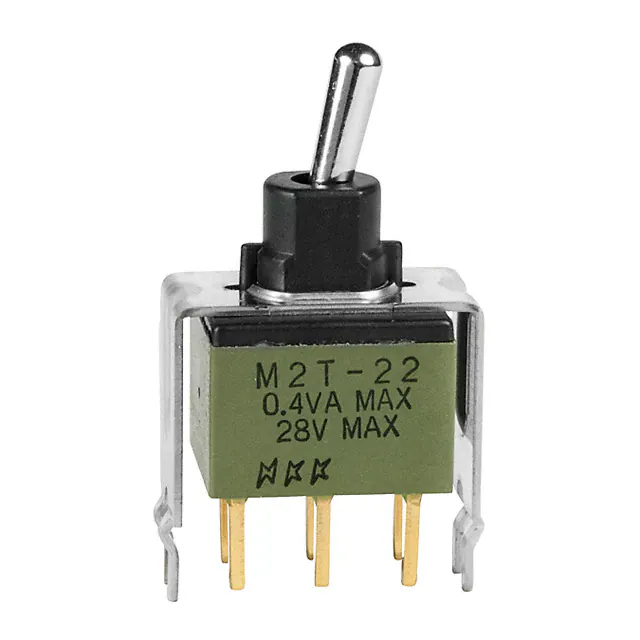

M2T22S4A5G13SWITCH TOGGLE DPDT 0.4VA 28V |
3,541 |
|
Datasheet |
M2 | Tray | Obsolete | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 7.62mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
M2022S2A2W40SWITCH TOGGLE DPDT 6A 125V |
4,861 |
|
Datasheet |
M | Tray | Obsolete | Through Hole, Right Angle, Vertical | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2013QS2G03SWITCH TOGGLE SPDT 0.4VA 28V |
4,684 |
|
Datasheet |
M | Tray | Obsolete | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Standard Round | 14.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2T22SA5A03SWITCH TOGGLE DPDT 6A 125V |
3,835 |
|
Datasheet |
M2 | Tray | Obsolete | Through Hole | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 12.70mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|

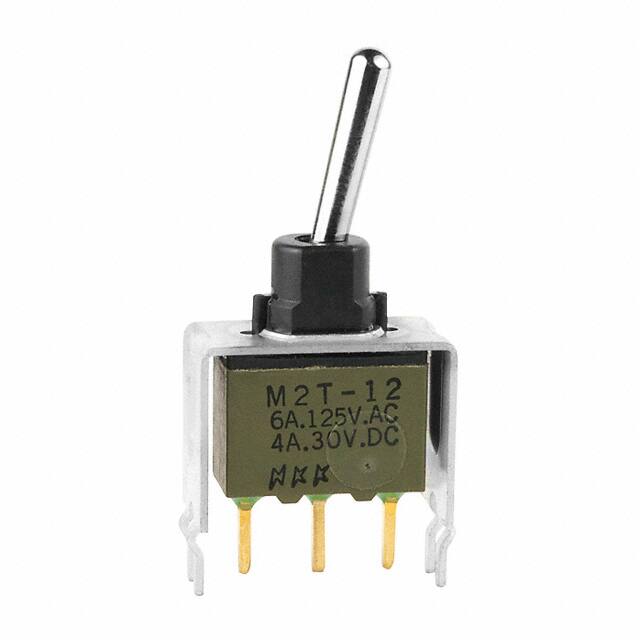

M2T12SA5A13SWITCH TOGGLE SPDT 6A 125V |
4,124 |
|
Datasheet |
M2 | Tray | Obsolete | Through Hole | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 12.70mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2013SS2G30SWITCH TOGGLE SPDT 0.4VA 28V |
4,117 |
|
Datasheet |
M | Tray | Obsolete | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2012S2A2G15SWITCH TOGGLE SPDT 0.4VA 28V |
3,214 |
|
Datasheet |
M | Tray | Obsolete | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2T12S4A5W30SWITCH TOGGLE SPDT 6A 125V |
2,720 |
|
Datasheet |
M2 | Tray | Obsolete | Through Hole, Right Angle | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 7.62mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2012SS2W13-BCSWITCH TOGGLE SPDT 6A 125V |
2,958 |
|
Datasheet |
M | Tray | Obsolete | Through Hole | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Red Cap | -30°C ~ 85°C |
|
|
M2T29S4A5G30SWITCH TOGGLE DPDT 0.4VA 28V |
1,628 |
|
Datasheet |
M2 | Tray | Obsolete | Through Hole, Right Angle | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-Mom | Standard Round | 7.62mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
M2T12SA5G13SWITCH TOGGLE SPDT 0.4VA 28V |
2,270 |
|
Datasheet |
M2 | Tray | Obsolete | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 12.70mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2024SS2G13SWITCH TOGGLE SP3T 0.4VA 28V |
1,464 |
|
Datasheet |
M | Tray | Obsolete | Through Hole | SP3T | 0.4VA (AC/DC) | 28 V | 28 V | On-On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
M2T12S4A5W40SWITCH TOGGLE SPDT 6A 125V |
3,513 |
|
Datasheet |
M2 | Tray | Obsolete | Through Hole, Right Angle, Vertical | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 7.62mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2T12S4A5G13SWITCH TOGGLE SPDT 0.4VA 28V |
4,173 |
|
Datasheet |
M2 | Tray | Obsolete | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 7.62mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|

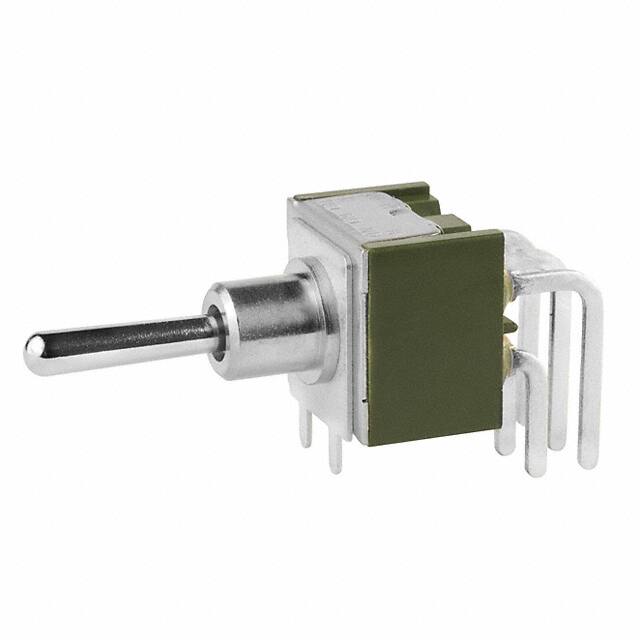

M2026SA2W30SWITCH TOGGLE SP3T 6A 125V |
1,327 |
|
Datasheet |
M | Tray | Obsolete | Through Hole, Right Angle | SP3T | 6A (AC), 3A (DC) | 125 V | 30 V | Mom-On-Mom | Standard Round | 12.28mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
M2022SS2W23/UCSWITCH TOGGLE DPDT 6A 125V |
1,117 |
|
Datasheet |
M | Tray | Obsolete | Through Hole | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1-1825142-0SWITCH TOGGLE SPDT 5A 120V |
4,604 |
|
Datasheet |
Gemini AE | Bulk | Obsolete | Through Hole | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 7.62mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
2-1825138-9SWITCH TOGGLE DPDT 5A 120V |
2,671 |
|
Datasheet |
Gemini A | Bulk | Obsolete | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 12.37mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.00mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
