Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2-1825142-1SWITCH TOGGLE SPDT 5A 120V |
2,544 |
|
Datasheet |
Gemini AE | Bulk | Obsolete | Through Hole | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 12.70mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
2-1825143-2SWITCH TOGGLE DPDT 5A 120V |
3,706 |
|
Datasheet |
Gemini AE | Bulk | Obsolete | Through Hole | DPDT | 5A (AC/DC) | 120 V | 28 V | Mom-Off-Mom | Standard Round | 12.70mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
A127L02CWZBSWITCH TOGGLE SPDT 0.5VA 28V |
1,899 |
|
Datasheet |
A | Bulk | Active | Panel Mount | SPDT | 0.5VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Standard Round | 21.34mm | Non-Illuminated | - | - | Splash Proof | Solder Lug | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A227M1D9AGSWITCH TOGGLE DPDT 6A 125V |
1,378 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle | DPDT | 6A (AC/DC) | 125 V | 28 V | Mom-Off-Mom | Standard Round | 5.08mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A432P41DZQSWITCH TOGGLE DP3T 6A 125V |
4,194 |
|
Datasheet |
A | Bulk | Active | Panel Mount | DP3T | 6A (AC/DC) | 125 V | 28 V | On-On-On | Flatted | 6.35mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 90°C |
|

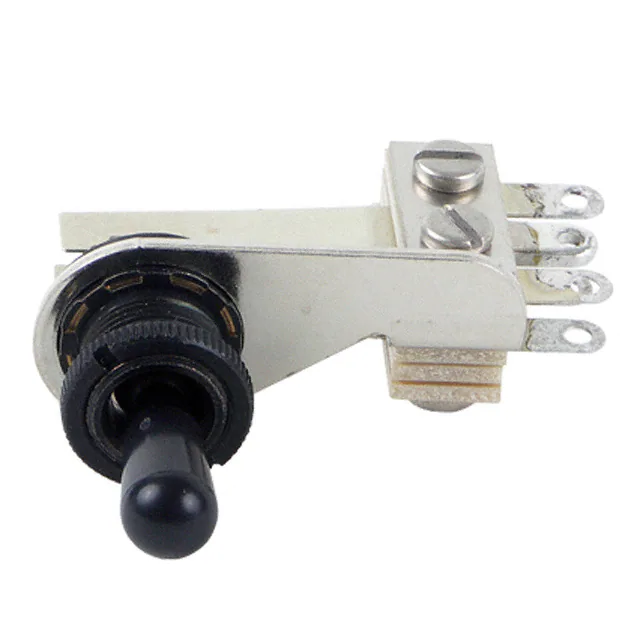

12014XSWITCH TOGGLE 3POS R/A 1B/1B |
3,837 |
|
Datasheet |
12000 | Bulk | Active | Panel Mount, Right Angle | - | - | - | - | - | Standard Round | 22.22mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | - | - | - |
|
|
41206XSWITCH TOGGLE 2A 125V |
1,602 |
|
Datasheet |
41000 | Bulk | Active | Panel Mount | - | 2A (AC) | 125 V | - | - | Flatted | - | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.70mm Dia | - | -30°C ~ 70°C |
|
41206LSWITCH TOGGLE 2A 125V |
3,501 |
|
Datasheet |
41000 | Bulk | Active | Panel Mount | - | 2A (AC) | 125 V | - | - | Locking Lever | - | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.70mm Dia | - | -30°C ~ 70°C |
|
|
41212XSWITCH TOGGLE 2A 125V |
3,698 |
|
Datasheet |
41000 | Bulk | Active | Panel Mount | - | 2A (AC) | 125 V | - | - | Flatted | - | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.70mm Dia | - | -30°C ~ 70°C |
|
41212LXSWITCH TOGGLE 2A 125V |
2,988 |
|
Datasheet |
41000 | Bulk | Active | Panel Mount | - | 2A (AC) | 125 V | - | - | Locking Lever | - | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.70mm Dia | - | -30°C ~ 70°C |
|
|
41312LXSWITCH TOGGLE 2A 125V |
2,848 |
|
Datasheet |
41000 | Bulk | Active | Panel Mount | - | 2A (AC) | 125 V | - | - | Locking Lever | - | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.70mm Dia | - | -30°C ~ 70°C |
|
|
41312XSWITCH TOGGLE 2A 125V |
4,275 |
|
Datasheet |
41000 | Bulk | Active | Panel Mount | - | 2A (AC) | 125 V | - | - | Flatted | - | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.70mm Dia | - | -30°C ~ 70°C |
|
|
16006SWITCH TOGGLE 2A 30V |
3,833 |
|
Datasheet |
16000 | Bulk | Active | Panel Mount | - | 2A (DC) | - | 30 V | - | Standard Round | - | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 11.91mm Dia | - | -30°C ~ 70°C |
|
7101SYCME2SWITCH TOGGLE SPDT 0.4VA 20V |
1,341 |
|
Datasheet |
7000 | Bulk | Obsolete | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 10.67mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Black Actuator | -30°C ~ 85°C |
|
|
1825226-4SWITCH TOGGLE DPDT 0.4VA 20V |
2,205 |
|
Datasheet |
TT | Bulk | Active | Panel Mount, Right Angle | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Flatted | 11.61mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.40mm Dia | - | -30°C ~ 85°C |
|

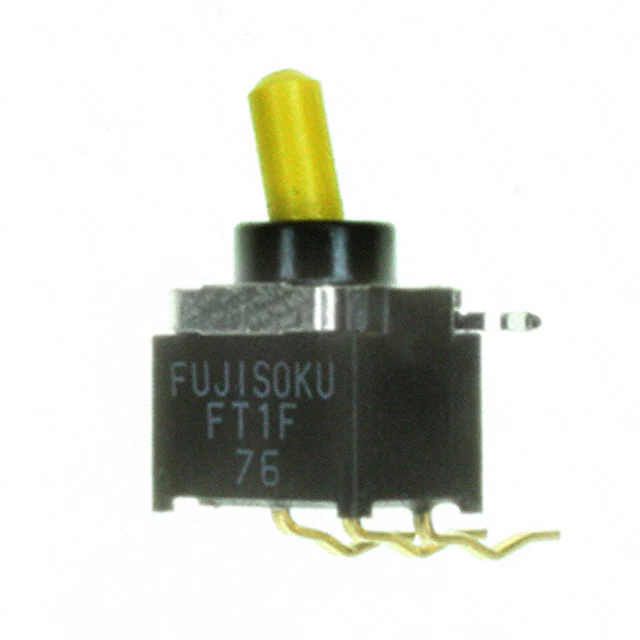

FT1F-5M-ZSWITCH TOGGLE SPDT 0.4VA 28V |
2,002 |
|
Datasheet |
FT | Bulk | Obsolete | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Mom | Standard Round | 3.80mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Washable, Yellow Actuator | -40°C ~ 85°C |
|
ATE2E-5M3-10-ZSWITCH TOGGLE DPDT 50MA 48V |
2,396 |
|
Datasheet |
ATE | Tray | Obsolete | Through Hole, Right Angle | DPDT | 50mA (AC/DC) | 48 V | 48 V | On-Off-On | Standard Round | 6.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Washable | -20°C ~ 85°C |
|
|
8GA1022-ZSWITCH TOGGLE SPDT 6A 125V |
4,974 |
|
Datasheet |
8GA | Bulk | Obsolete | Through Hole | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Washable | -20°C ~ 85°C |
|
|
8GA1024-ZSWITCH TOGGLE SPDT 6A 125V |
4,684 |
|
Datasheet |
8GA | Bulk | Obsolete | Through Hole, Right Angle | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Washable | -20°C ~ 85°C |
|
|
ST11F1S2A1BSWITCH TOGGLE SPDT 0.4VA 20V |
3,499 |
|
Datasheet |
ST | Bulk | Obsolete | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Flatted | 11.43mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
