Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

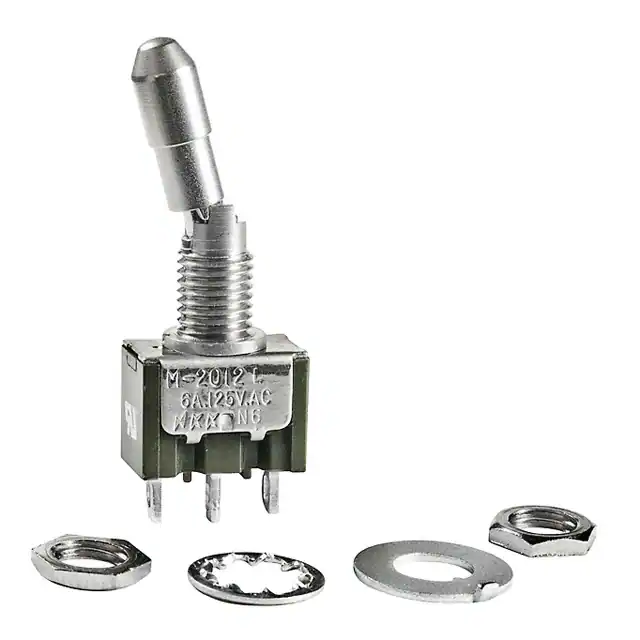

M2012LL4W01/USWITCH TOGGLE SPDT 6A 125V |
3,802 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Locking Lever | 16.50mm | Non-Illuminated | - | - | - | Solder Lug | M6 x 0.75 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
S3900BESWITCH TOGGLE SPST 20A 125V |
3,941 |
|
Datasheet |
3900 | Bulk | Active | Panel Mount | SPST | 20A (AC), 14A (DC) | 125 V | 36 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Screw Terminal | 15/32-32 | Circular - 12.70mm Dia | - | - |
|
|
A22AP-GASWITCH TOGGLE DPDT 0.4VA 28V |
3,300 |
|
Datasheet |
A | Bulk | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round with Cap | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Black Cap | -30°C ~ 85°C |
|
M2012ES1W01/3SWITCH TOGGLE SPDT 6A 125V |
248 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Flatted | 11.40mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Black Actuator | -30°C ~ 85°C |
|

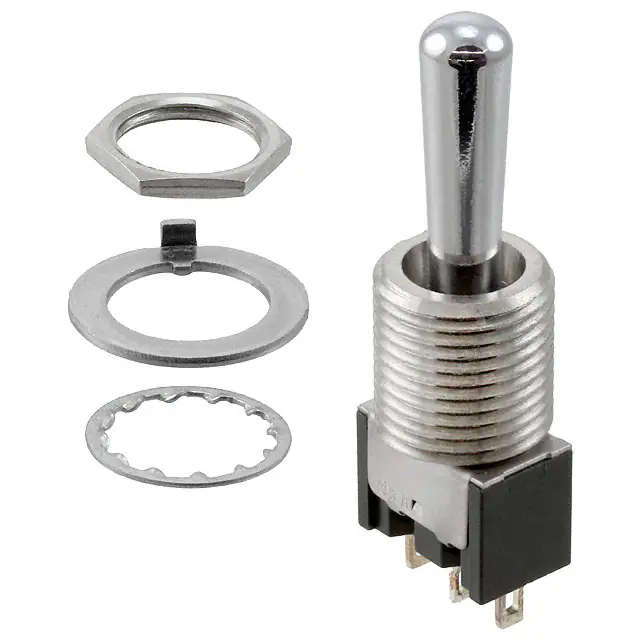

M2019B2B1W01SWITCH TOGGLE SPDT 6A 125V |
140 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34CMDP15B1M7RTSWITCH TOGGLE DPDT 0.4VA 20V |
3,677 |
|
Datasheet |
34C | Bulk | Active | Panel Mount, Right Angle, Vertical | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 7.88mm | Non-Illuminated | - | - | - | PC Pin | 10-48 | Circular - 4.95mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2024BB1W01SWITCH TOGGLE SP3T 6A 125V |
3,483 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SP3T | 6A (AC), 3A (DC) | 125 V | 30 V | On-On-On | Standard Round | 11.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
M2012SS2G13-BFSWITCH TOGGLE SPDT 0.4VA 28V |
181 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Green Cap | -30°C ~ 85°C |
|
|
M2012LL4W01SWITCH TOGGLE SPDT 6A 125V |
1,388 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Locking Lever | 16.50mm | Non-Illuminated | - | - | - | Solder Lug | M6 x 0.75 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2013SD3W01-BASWITCH TOGGLE SPDT 6A 125V |
3,488 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round with Cap | 10.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Black Cap | -30°C ~ 85°C |
|
7101P3D9V3BE2SWITCH TOGGLE SPDT 0.4VA 20V |
514 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Flat Anti-Rotation | 13.21mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Black Actuator | -30°C ~ 85°C |
|
A18KP-AFSWITCH TOGGLE SPDT 0.4VA 28V |
136 |
|
Datasheet |
A | Tray | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Snap On Paddle | 9.40mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Green Actuator | -30°C ~ 85°C |
|
|
A22AH-GASWITCH TOGGLE DPDT 0.4VA 28V |
4,280 |
|
Datasheet |
A | Tray | Active | Through Hole, Right Angle | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round with Cap | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Black Cap | -30°C ~ 85°C |
|
M2015ES2G45SWITCH TOGGLE SPDT 0.4VA 28V |
240 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Mom | Flatted | 11.40mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2018EA1G01SWITCH TOGGLE SPDT 0.4VA 28V |
806 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Flatted | 13.21mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2022SS1W40SWITCH TOGGLE DPDT 6A 125V |
108 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Right Angle, Vertical | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2019SS1W01-BGSWITCH TOGGLE SPDT 6A 125V |
1,934 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-Mom | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Blue Cap | -30°C ~ 85°C |
|
|
M2019SS1W01-BASWITCH TOGGLE SPDT 6A 125V |
3,831 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off-Mom | Standard Round with Cap | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Black Cap | -30°C ~ 85°C |
|
|
M2019SS1W01-BBSWITCH TOGGLE SPDT 6A 125V |
4,355 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-Mom | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | White Cap | -30°C ~ 85°C |
|
|
S301F/UC-AT401SSWITCH TOGGLE SPST 15A 125V |
1,280 |
|
Datasheet |
S | Bulk | Obsolete | Panel Mount | SPST | 15A (AC), 20A (DC) | 125 V | 30 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder, Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
