Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A18JV1SWITCH TOGGLE SPDT 0.4VA 28V |
1,981 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Standard Round | 6.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
M2022SS4G03SWITCH TOGGLE DPDT 0.4VA 28V |
144 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | M6 x 0.75 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
A19AVSWITCH TOGGLE SPDT 0.4VA 28V |
2,474 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-Mom | Standard Round | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|

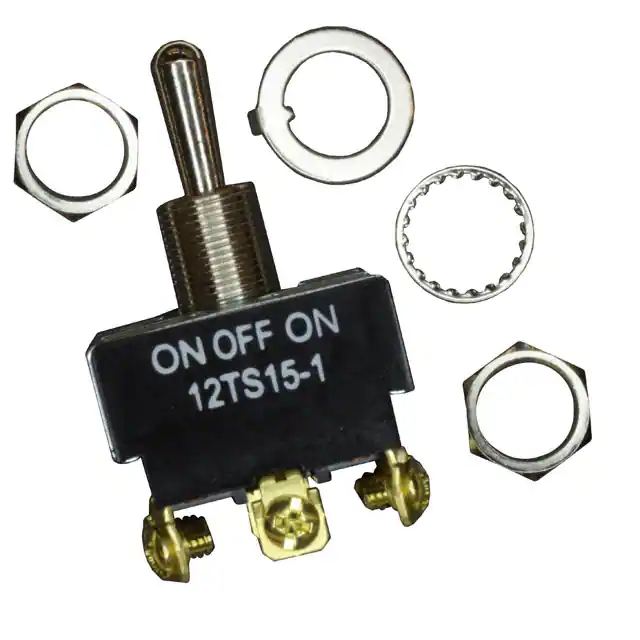

12TS15-1SWITCH TOGGLE DPDT 20A 125V |
169 |
|
Datasheet |
TS | Bulk | Obsolete | Panel Mount | DPDT | 20A (AC) | 125 V | - | On-Off-On | Standard Round | 16.51mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -54°C ~ 71°C |
|
|
M2012SS1W13/CULSWITCH TOGGLE SPDT 6A 125V |
1,620 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
TB1-2B-DC-1SWITCH TOGGLE DPST-NO 20A 125V |
902 |
|
Datasheet |
TB1 | Bulk | Active | Panel Mount | DPST-NO | 20A (AC), 21A (DC) | 125 V | 14 V | Off-Mom | Standard Round | 16.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.00mm Dia | - | - |
|
|
M2018K1A1G03-GSWITCH TOGGLE SPDT 0.4VA 28V |
1,425 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Snap On Paddle | 9.40mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Blue Cap | -30°C ~ 85°C |
|
M2012SA2A13SWITCH TOGGLE SPDT 6A 125V |
4,948 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 12.28mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
A12KP-AASWITCH TOGGLE SPDT 0.4VA 28V |
2,705 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Snap On Paddle | 9.40mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Black Actuator | -30°C ~ 85°C |
|
|
A12KP-BASWITCH TOGGLE SPDT 0.4VA 28V |
4,252 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Snap On Paddle | 14.20mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Black Actuator | -30°C ~ 85°C |
|
M2023LL1W01SWITCH TOGGLE DPDT 6A 125V |
4,144 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Locking Lever | 16.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2013SA2W03/CULSWITCH TOGGLE M2 |
2,967 |
|
Datasheet |
M | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
M2012ES1W01/USWITCH TOGGLE SPDT 6A 125V |
1,401 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Flatted | 11.40mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2012ES1W01/CULSWITCH TOGGLE SPDT 6A 125V |
1,104 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Flatted | 11.40mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
B23JBSWITCH TOGGLE DPDT 0.4VA 28V |
4,317 |
|
Datasheet |
B | Bulk | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Standard Round | 6.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2023LL1W03SWITCH TOGGLE DPDT 6A 125V |
1,274 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Locking Lever | 16.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
B23JW-JASWITCH TOGGLE DPDT 0.4VA 28V |
4,422 |
|
Datasheet |
B | Tray | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Standard Round with Cap | 6.30mm | Non-Illuminated | - | - | - | Wire Wrap | Unthreaded | - | Black Cap | -30°C ~ 85°C |
|
|
B23JP-JASWITCH TOGGLE DPDT 0.4VA 28V |
1,286 |
|
Datasheet |
B | Bulk | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Standard Round with Cap | 6.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Black Cap | -30°C ~ 85°C |
|
TB1-2G-DC-6SWITCH TOGGLE DPDT 20A 125V |
4,033 |
|
Datasheet |
TB1 | Bulk | Active | Panel Mount | DPDT | 20A (AC), 21A (DC) | 125 V | 14 V | Mom-Off-Mom | Standard Round | 16.50mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.00mm Dia | - | - |
|
TB1-2E-DC-6SWITCH TOGGLE DPDT 20A 125V |
481 |
|
Datasheet |
TB1 | Bulk | Active | Panel Mount | DPDT | 20A (AC), 21A (DC) | 125 V | 14 V | On-Mom | Standard Round | 16.50mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.00mm Dia | - | - |
