Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CF-TA-1GB4-A02SWITCH TOGGLE SPDT 50MA 48V |
266 |
|
Datasheet |
CF-TA | Bulk | Obsolete | Surface Mount, Right Angle | SPDT | 50mA (AC/DC) | 48 V | 48 V | Mom-Off-Mom | Standard Round | 6.00mm | Non-Illuminated | - | - | - | Gull Wing | Unthreaded | - | - | -40°C ~ 85°C |
|
|
CF-TA-1HB4-A12SWITCH TOGGLE SPDT 50MA 48V |
162 |
|
Datasheet |
CF-TA | Bulk | Obsolete | Surface Mount, Right Angle | SPDT | 50mA (AC/DC) | 48 V | 48 V | On-Off-Mom | Standard Round | 6.00mm | Non-Illuminated | - | - | - | Gull Wing | Unthreaded | - | - | -40°C ~ 85°C |
|
A12KPSWITCH TOGGLE SPDT 0.4VA 28V |
2,701 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Lever for Cap | 5.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|

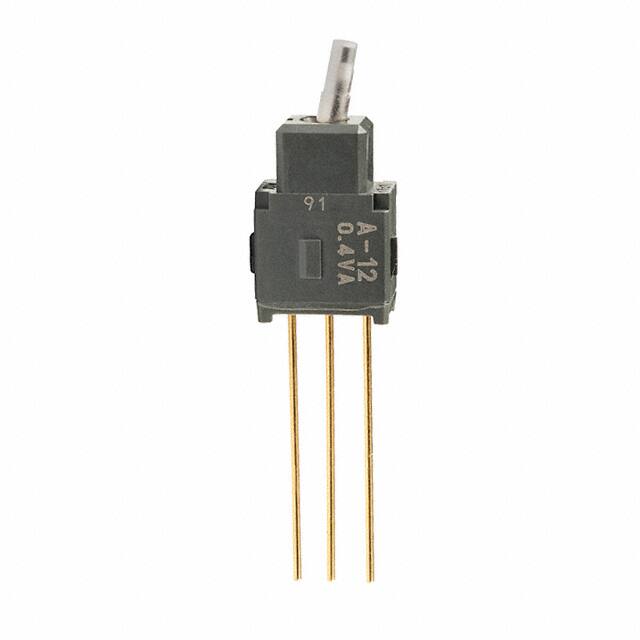

A12KWSWITCH TOGGLE SPDT 0.4VA 28V |
1,033 |
|
Datasheet |
A | Tube | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Lever for Cap | 5.00mm | Non-Illuminated | - | - | - | Wire Wrap | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
M2011BB1W01-RASWITCH TOGGLE SPST 6A 125V |
4,109 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPST | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off | Standard Round with Cap | 12.30mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | Black Cap | -30°C ~ 85°C |
|
TD1-1D-DC-3-PSWITCH TOGGLE SPDT 50A 12V |
1,982 |
|
Datasheet |
TD1 | Bulk | Active | Panel Mount | SPDT | 50A (DC) | - | 12 V | On-On | Flatted | 28.80mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 0.75 | Circular - 12.20mm Dia | - | -20°C ~ 85°C |
|
M2T12S4A5A30SWITCH TOGGLE SPDT 6A 125V |
1,614 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole, Right Angle | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 7.62mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
A12AH-GASWITCH TOGGLE SPDT 0.4VA 28V |
4,062 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round with Cap | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Black Cap | -30°C ~ 85°C |
|
B22AWSWITCH TOGGLE DPDT 0.4VA 28V |
4,212 |
|
Datasheet |
B | Bulk | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 10.00mm | Non-Illuminated | - | - | - | Wire Wrap | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
A12JH-JASWITCH TOGGLE SPDT 0.4VA 28V |
3,872 |
|
Datasheet |
A | Tray | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round with Cap | 6.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Black Cap | -30°C ~ 85°C |
|

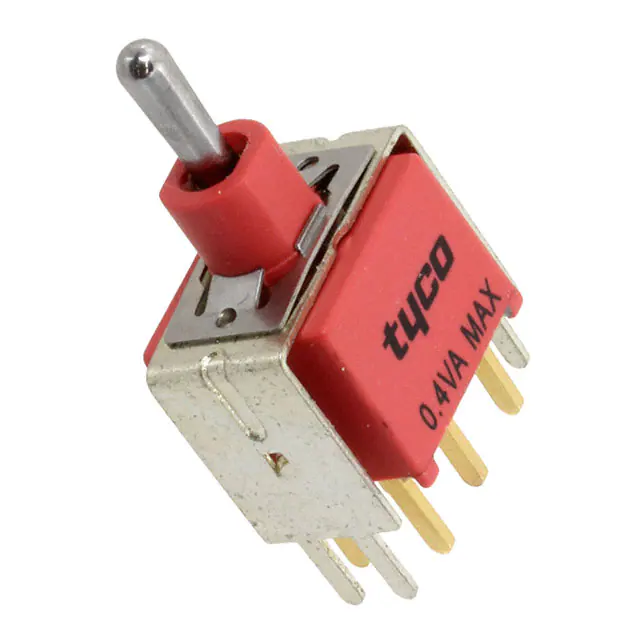

2-1825143-7SWITCH TOGGLE SP3T 0.4VA 20V |
1,727 |
|
Datasheet |
Gemini AE | Bulk | Obsolete | Through Hole | SP3T | 0.4VA (AC/DC) | 20 V | 20 V | On-On-On | Standard Round | 7.62mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|

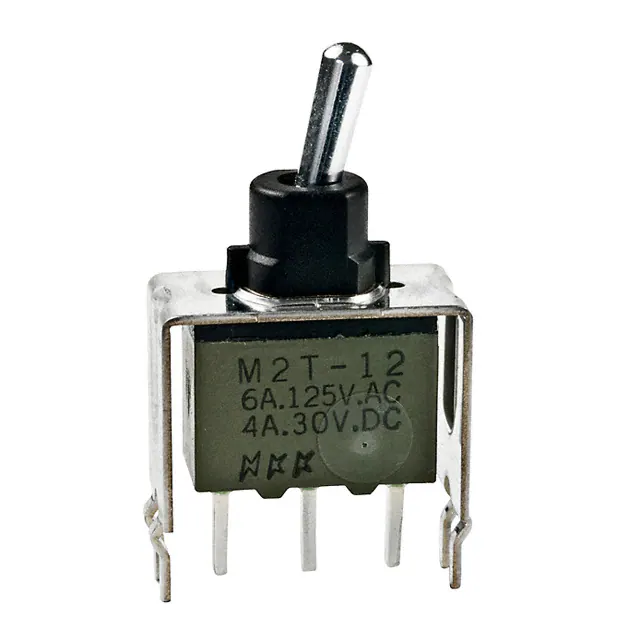

M2T12S4A5W13SWITCH TOGGLE SPDT 6A 125V |
4,020 |
|
Datasheet |
M2 | Tray | Obsolete | Through Hole | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 7.62mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|

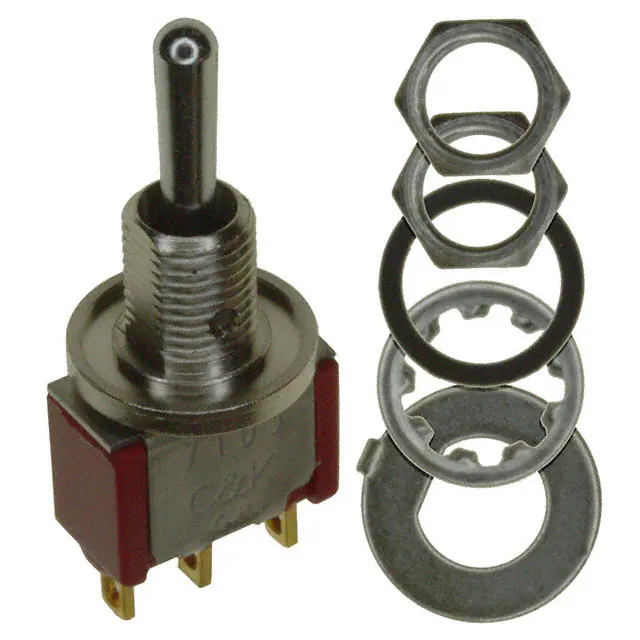

7103SPCWZGESWITCH TOGGLE SPDT 5A 120V |
163 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Anti-Rotation | 10.67mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

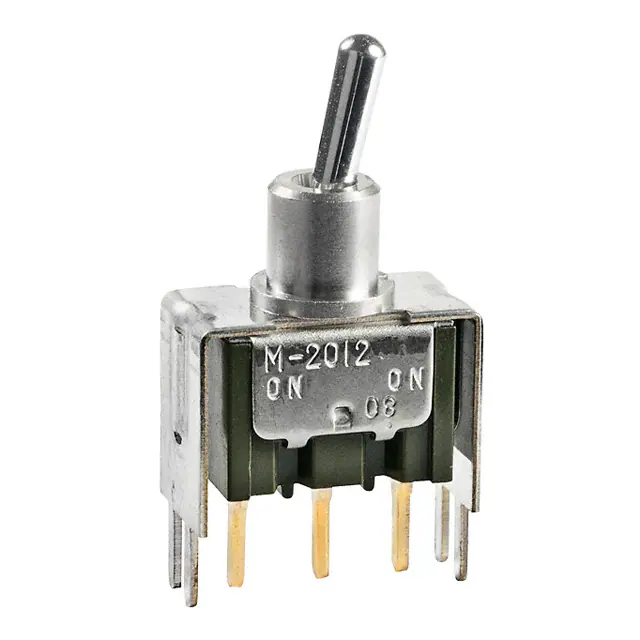

M2012S3A2G13SWITCH TOGGLE SPDT 0.4VA 28V |
549 |
|
Datasheet |
M | Tray | Obsolete | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 8.28mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
A12AV1-GASWITCH TOGGLE SPDT 0.4VA 28V |
1,919 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round with Cap | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Black Cap | -30°C ~ 85°C |
|
|
A12JV-JASWITCH TOGGLE SPDT 0.4VA 28V |
4,533 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round with Cap | 6.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Black Cap | -30°C ~ 85°C |
|
TB1-2D-DC-1SWITCH TOGGLE DPDT 20A 125V |
2,016 |
|
Datasheet |
TB1 | Bulk | Active | Panel Mount | DPDT | 20A (AC), 21A (DC) | 125 V | 14 V | On-On | Standard Round | 16.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.00mm Dia | - | - |
|
TB1-2D-DC-5SWITCH TOGGLE DPDT 20A 125V |
429 |
|
Datasheet |
TB1 | Bulk | Active | Panel Mount | DPDT | 20A (AC), 21A (DC) | 125 V | 14 V | On-On | Standard Round | 16.50mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.00mm Dia | - | - |
|
|
CF-TA-1GB4-A12SWITCH TOGGLE SPDT 50MA 48V |
285 |
|
Datasheet |
CF-TA | Bulk | Obsolete | Surface Mount, Right Angle | SPDT | 50mA (AC/DC) | 48 V | 48 V | Mom-Off-Mom | Standard Round | 6.00mm | Non-Illuminated | - | - | - | Gull Wing | Unthreaded | - | - | -40°C ~ 85°C |
|
TD1-1F-DC-3-PSWITCH TOGGLE SPDT 50A 12V |
133 |
|
Datasheet |
TD1 | Bulk | Active | Panel Mount | SPDT | 50A (DC) | - | 12 V | On-Off-On | Flatted | 29.30mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 0.75 | Circular - 12.20mm Dia | - | -20°C ~ 85°C |
