Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A12AP-GASWITCH TOGGLE SPDT 0.4VA 28V |
4,000 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round with Cap | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Black Cap | -30°C ~ 85°C |
|
TA2-1B-DC-6SWITCH TOGGLE SPST-NO 20A 125V |
368 |
|
Datasheet |
TA2 | Bulk | Active | Panel Mount | SPST-NO | 20A (AC), 21A (DC) | 125 V | 14 V | Off-Mom | Standard Round | 16.50mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.00mm Dia | - | -20°C ~ 85°C |
|
|
A12JP-JASWITCH TOGGLE SPDT 0.4VA 28V |
3,387 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round with Cap | 6.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Black Cap | -30°C ~ 85°C |
|
M2011LL1W01-CSWITCH TOGGLE SPST 6A 125V |
3,934 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPST | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off | Locking Lever | 16.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Red Cap | -30°C ~ 85°C |
|
|
A11JB1-JASWITCH TOGGLE SPST 0.4VA 28V |
4,510 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPST | 0.4VA (AC/DC) | 28 V | 28 V | On-Off | Standard Round with Cap | 6.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Black Cap | -30°C ~ 85°C |
|
|
A11AB1-GASWITCH TOGGLE SPST 0.4VA 28V |
1,749 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPST | 0.4VA (AC/DC) | 28 V | 28 V | On-Off | Standard Round with Cap | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Black Cap | -30°C ~ 85°C |
|
|
A11AB-GCSWITCH TOGGLE SPST 0.4VA 28V |
2,214 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPST | 0.4VA (AC/DC) | 28 V | 28 V | On-Off | Standard Round with Cap | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Red Cap | -30°C ~ 85°C |
|
|
B15AV-GASWITCH TOGGLE SPDT 0.4VA 28V |
4,825 |
|
Datasheet |
B | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Mom | Standard Round with Cap | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Black Cap | -30°C ~ 85°C |
|
|
B15AV-GBSWITCH TOGGLE SPDT 0.4VA 28V |
4,482 |
|
Datasheet |
B | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Mom | Standard Round with Cap | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | White Cap | -30°C ~ 85°C |
|
M2018SS1W01SWITCH TOGGLE SPDT 6A 125V |
797 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2011SS1G01SWITCH TOGGLE SPST 0.4VA 28V |
144 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPST | 0.4VA (AC/DC) | 28 V | 28 V | On-Off | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2022S2A2W40/UCSWITCH TOGGLE DPDT 6A 125V |
2,936 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle, Vertical | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

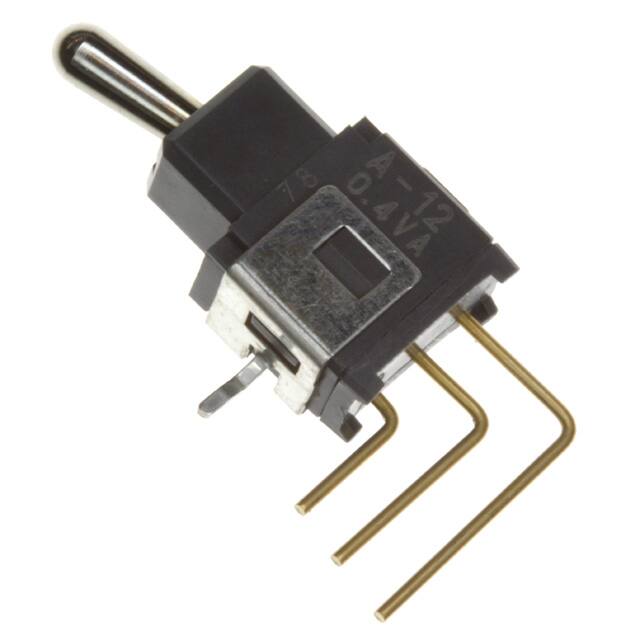

A12JV1SWITCH TOGGLE SPDT 0.4VA 28V |
4,234 |
|
Datasheet |
A | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 6.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
TB2-2G-DC-1SWITCH TOGGLE DPDT 20A 12V |
932 |
|
Datasheet |
TB2 | Bulk | Active | Panel Mount | DPDT | 20A (DC) | - | 12 V | Mom-Off-Mom | Standard Round | 18.40mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 0.75 | Circular - 12.20mm Dia | - | 0°C ~ 55°C |
|
|
B13KHSWITCH TOGGLE SPDT 0.4VA 28V |
3,364 |
|
Datasheet |
B | Bulk | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Lever for Cap | 5.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
TA2-1A-DC-6-OSWITCH TOGGLE SPST 20A 125V |
636 |
|
Datasheet |
TA2 | Bulk | Active | Panel Mount | SPST | 20A (AC), 21A (DC) | 125 V | 14 V | On-Off | Standard Round | 16.50mm | Non-Illuminated | - | - | IP55 - Dust Protected, Water Resistant | Screw Terminal | 15/32-32 | Circular - 12.00mm Dia | - | -20°C ~ 85°C |
|
|
34ASP13B4M6RTSWITCH TOGGLE SPDT 0.4VA 20V |
3,117 |
|
Datasheet |
34A | Bulk | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 13.97mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|
|
34ASP21B3M6RTSWITCH TOGGLE SPDT 0.4VA 20V |
4,496 |
|
Datasheet |
34A | Bulk | Active | Panel Mount, Right Angle | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Mom | Standard Round | 12.19mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
|
|
B18AVSWITCH TOGGLE SPDT 0.4VA 28V |
4,127 |
|
Datasheet |
B | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Standard Round | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
B18AV1SWITCH TOGGLE SPDT 0.4VA 28V |
2,148 |
|
Datasheet |
B | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Standard Round | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
