Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A11AP-GASWITCH TOGGLE SPST 0.4VA 28V |
2,648 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPST | 0.4VA (AC/DC) | 28 V | 28 V | Off-Mom | Standard Round with Cap | 10.01mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | - | -30°C ~ 85°C |
|
|
B12EBSWITCH TOGGLE SPDT 0.4VA 28V |
3,691 |
|
Datasheet |
B | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Flatted | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
8J1022-ZSWITCH TOGGLE SPDT 6A 125V |
151 |
|
Datasheet |
8J | Bulk | Active | Through Hole | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 6.80mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | - | -30°C ~ 85°C |
|
TB2-2H-DC-1SWITCH TOGGLE DPDT 20A 12V |
467 |
|
Datasheet |
TB2 | Bulk | Active | Panel Mount | DPDT | 20A (DC) | - | 12 V | On-Off-Mom | Standard Round | 18.40mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 0.75 | Circular - 12.20mm Dia | - | 0°C ~ 55°C |
|
|
34ASP12B8M1RTSWITCH TOGGLE SPDT 0.4VA 20V |
1,513 |
|
Datasheet |
34A | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 5.08mm | Non-Illuminated | - | - | - | Solder Lug | M6 x 0.75 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
|
|
B13AH-GASWITCH TOGGLE SPDT 0.4VA 28V |
3,490 |
|
Datasheet |
B | Bulk | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Standard Round with Cap | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Black Cap | -30°C ~ 85°C |
|
|
2-1825143-6SWITCH TOGGLE SP3T 0.4VA 20V |
3,911 |
|
Datasheet |
Gemini AE | Bulk | Active | Through Hole | SP3T | 0.4VA (AC/DC) | 20 V | 20 V | On-On-On | Standard Round | 7.62mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
TA2-1A-DC-6SWITCH TOGGLE SPST 20A 125V |
492 |
|
Datasheet |
TA2 | Bulk | Active | Panel Mount | SPST | 20A (AC), 21A (DC) | 125 V | 14 V | On-Off | Standard Round | 16.50mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.00mm Dia | - | -20°C ~ 85°C |
|

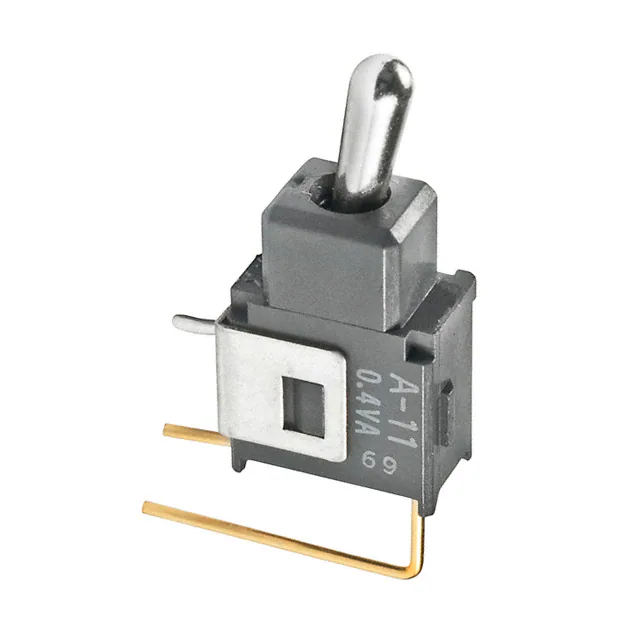

A11JV1SWITCH TOGGLE SPST 0.4VA 28V |
4,088 |
|
Datasheet |
A | Tray | Active | Through Hole, Right Angle, Vertical | SPST | 0.4VA (AC/DC) | 28 V | 28 V | On-Off | Standard Round | 6.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
M2021SS1W01SWITCH TOGGLE DPST 6A 125V |
3,705 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPST | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
A11AVSWITCH TOGGLE SPST 0.4VA 28V |
1,264 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle, Vertical | SPST | 0.4VA (AC/DC) | 28 V | 28 V | On-Off | Standard Round | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
|
A11AV1SWITCH TOGGLE SPST 0.4VA 28V |
2,204 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle, Vertical | SPST | 0.4VA (AC/DC) | 28 V | 28 V | On-Off | Standard Round | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
M2021SS1W03SWITCH TOGGLE DPST 6A 125V |
2,230 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPST | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34ASP53B4V2QTSWITCH TOGGLE SPDT 5A 125V |
3,536 |
|
Datasheet |
34A | Bulk | Active | Through Hole | SPDT | 5A (AC/DC) | 125 V | 28 V | On-Off-Mom | Standard Round | 13.97mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|
M2019SS1W03SWITCH TOGGLE SPDT 6A 125V |
1,255 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2019SS1W01SWITCH TOGGLE SPDT 6A 125V |
268 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2022S2A2W30/CULSWITCH TOGGLE DPDT 6A 125V |
1,992 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34ASP22B3M7RTSWITCH TOGGLE SPDT 0.4VA 20V |
2,352 |
|
Datasheet |
34A | Bulk | Active | Panel Mount, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Mom | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
|
|
B12EVSWITCH TOGGLE SPDT 0.4VA 28V |
4,785 |
|
Datasheet |
B | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Flatted | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1825142-5SWITCH TOGGLE SPDT 0.4VA 20V |
3,871 |
|
Datasheet |
Gemini AE | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 7.62mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
