Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

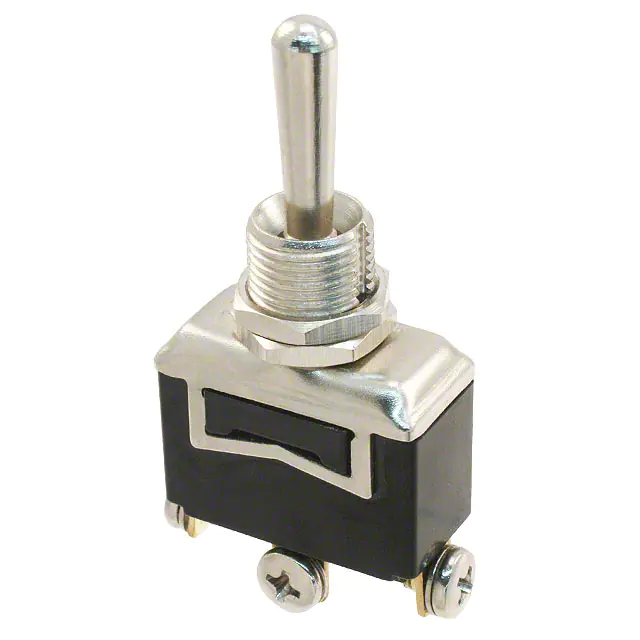

ST165D00SWITCH TOGGLE SPDT 20A 125V |
409 |
|
Datasheet |
ST1 | Bulk | Active | Panel Mount | SPDT | 20A (AC) | 125 V | - | On-Off-On | Standard Round | 19.50mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 1 | Circular - 12.00mm Dia | - | 0°C ~ 85°C |
|
A12JWSWITCH TOGGLE SPDT 0.4VA 28V |
2,808 |
|
Datasheet |
A | Tube | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 6.30mm | Non-Illuminated | - | - | - | Wire Wrap | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
M2011BB1W01SWITCH TOGGLE SPST 6A 125V |
1,168 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPST | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off | Standard Round | 11.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
2-1825138-2SWITCH TOGGLE DPDT 0.4VA 20V |
4,613 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount, Right Angle | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
TB2-2D-DC-1SWITCH TOGGLE DPDT 20A 12V |
523 |
|
Datasheet |
TB2 | Bulk | Active | Panel Mount | DPDT | 20A (DC) | - | 12 V | On-On | Standard Round | 17.70mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 0.75 | Circular - 12.20mm Dia | - | 0°C ~ 55°C |
|
|
A11JBSWITCH TOGGLE SPST 0.4VA 28V |
1,644 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPST | 0.4VA (AC/DC) | 28 V | 28 V | On-Off | Standard Round | 6.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|
|
B12AB1-GASWITCH TOGGLE SPDT 0.4VA 28V |
1,382 |
|
Datasheet |
B | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round with Cap | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Black Cap | -30°C ~ 85°C |
|
|
B12AB-GBSWITCH TOGGLE SPDT 0.4VA 28V |
4,979 |
|
Datasheet |
B | Tray | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round with Cap | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | White Cap | -30°C ~ 85°C |
|

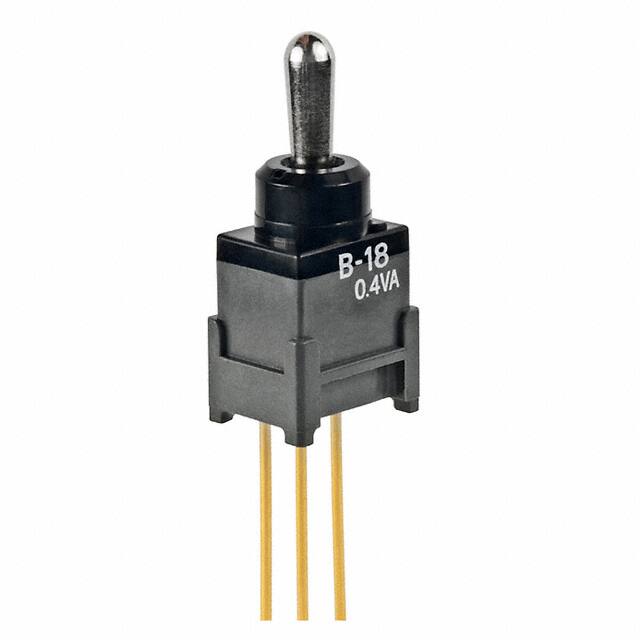

B18JWSWITCH TOGGLE SPDT 0.4VA 28V |
3,749 |
|
Datasheet |
B | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Standard Round | 6.30mm | Non-Illuminated | - | - | - | Wire Wrap | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
B19AWSWITCH TOGGLE SPDT 0.4VA 28V |
2,809 |
|
Datasheet |
B | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-Mom | Standard Round | 10.00mm | Non-Illuminated | - | - | - | Wire Wrap | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
A11AB1SWITCH TOGGLE SPST 0.4VA 28V |
1,799 |
|
Datasheet |
A | Tray | Active | Through Hole | SPST | 0.4VA (AC/DC) | 28 V | 28 V | On-Off | Standard Round | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
|
B13KWSWITCH TOGGLE SPDT 0.4VA 28V |
3,566 |
|
Datasheet |
B | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Lever for Cap | 5.00mm | Non-Illuminated | - | - | - | Wire Wrap | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
B15AVSWITCH TOGGLE SPDT 0.4VA 28V |
3,435 |
|
Datasheet |
B | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Mom | Standard Round | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
B18AWSWITCH TOGGLE SPDT 0.4VA 28V |
1,477 |
|
Datasheet |
B | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Standard Round | 10.00mm | Non-Illuminated | - | - | - | Wire Wrap | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7105SD9V3KESWITCH TOGGLE SPDT 0.4VA 20V |
291 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | Mom-Off-Mom | Standard Round | 12.45mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34CMSP12B1M1RTSWITCH TOGGLE SPDT 0.4VA 20V |
4,081 |
|
Datasheet |
34C | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 5.33mm | Non-Illuminated | - | - | - | Solder Lug | 10-48 | Circular - 4.95mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34BWSP12B1M2RTSWITCH TOGGLE SPDT 0.4VA 20V |
2,973 |
|
Datasheet |
34B | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 5.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
TA2-1A-DC-1-LSWITCH TOGGLE SPST 20A 125V |
675 |
|
Datasheet |
TA2 | Bulk | Active | Panel Mount | SPST | 20A (AC), 21A (DC) | 125 V | 14 V | On-Off | Standard Round | 34.80mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.00mm Dia | - | 0°C ~ 65°C |
|
|
34CMDP12B1V3RTSWITCH TOGGLE DPDT 0.4VA 20V |
1,623 |
|
Datasheet |
34C | Bulk | Active | Panel Mount | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 5.33mm | Non-Illuminated | - | - | - | PC Pin | 10-48 | Circular - 4.95mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2-1825139-5SWITCH TOGGLE DPDT 5A 120V |
2,198 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-Mom | Standard Round | 12.37mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.00mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
