Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2011SS1W01SWITCH TOGGLE SPST 6A 125V |
1,013 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPST | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
A103SYZB04SWITCH TOGGLE SPDT |
777 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
B12JWSWITCH TOGGLE SPDT 0.4VA 28V |
1,410 |
|
Datasheet |
B | Tray | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 6.30mm | Non-Illuminated | - | - | - | Wire Wrap | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
B12AWSWITCH TOGGLE SPDT 0.4VA 28V |
3,375 |
|
Datasheet |
B | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 10.00mm | Non-Illuminated | - | - | - | Wire Wrap | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2018SS1W03SWITCH TOGGLE SPDT 6A 125V |
3,648 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2011S3S4W05SWITCH TOGGLE SPST 6A 125V |
3,116 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPST | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off | Standard Round | 6.50mm | Non-Illuminated | - | - | - | Wire Wrap | M6 x 0.75 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34CMDP11B1M1QTSWITCH TOGGLE DPDT 3A 125V |
3,636 |
|
Datasheet |
34C | Bulk | Active | Panel Mount | DPDT | 3A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 9.40mm | Non-Illuminated | - | - | - | Solder Lug | 10-48 | Circular - 4.95mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2021SS1W01-BBSWITCH TOGGLE DPST 6A 125V |
3,831 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPST | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | White Cap | -30°C ~ 85°C |
|
|
M2021SS1W01-BCSWITCH TOGGLE DPST 6A 125V |
3,247 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPST | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Red Cap | -30°C ~ 85°C |
|
M2021SS1W01-BGSWITCH TOGGLE DPST 6A 125V |
3,744 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPST | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Blue Cap | -30°C ~ 85°C |
|
|
M2021SS1W01-BFSWITCH TOGGLE DPST 6A 125V |
3,981 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPST | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Green Cap | -30°C ~ 85°C |
|

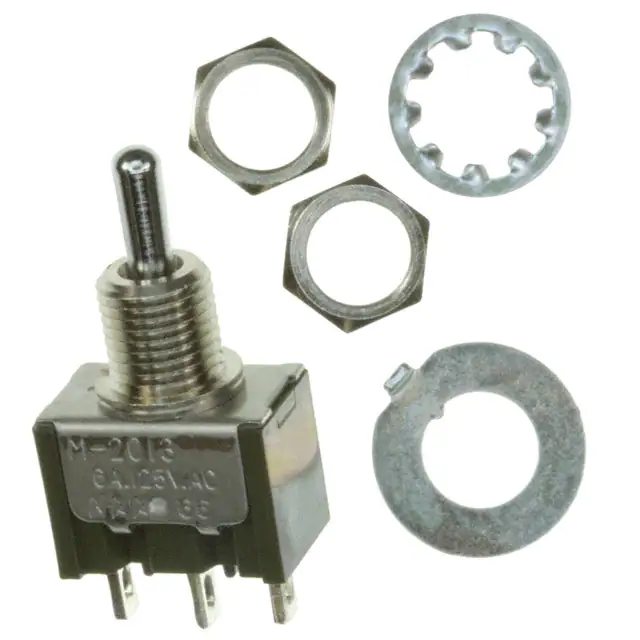

M2013S2A1W01SWITCH TOGGLE SPDT 6A 125V |
3,101 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2015ES1W01SWITCH TOGGLE SPDT 6A 125V |
3,673 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Mom | Flatted | 11.40mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34BWDP31B4M7QTSWITCH TOGGLE DPDT 5A 125V |
1,420 |
|
Datasheet |
34B | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | 5A (AC/DC) | 125 V | 28 V | On-Off-On | Standard Round | 12.60mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34BWDP12B1M2RTSWITCH TOGGLE DPDT 0.4VA 20V |
3,083 |
|
Datasheet |
34B | Bulk | Active | Panel Mount | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 5.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2022ES1W01/USWITCH TOGGLE DPDT 6A 125V |
2,155 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Flatted | 11.40mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34CMDP12B3M2QTSWITCH TOGGLE DPDT 3A 125V |
4,527 |
|
Datasheet |
34C | Bulk | Active | Panel Mount | DPDT | 3A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 5.33mm | Non-Illuminated | - | - | - | PC Pin | 10-48 | Circular - 4.95mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2013SS1W03SWITCH TOGGLE SPDT 6A 125V |
4,734 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2013SS1W01SWITCH TOGGLE SPDT 6A 125V |
4,738 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
B13AWSWITCH TOGGLE SPDT 0.4VA 28V |
3,170 |
|
Datasheet |
B | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Standard Round | 10.00mm | Non-Illuminated | - | - | - | Wire Wrap | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
