Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

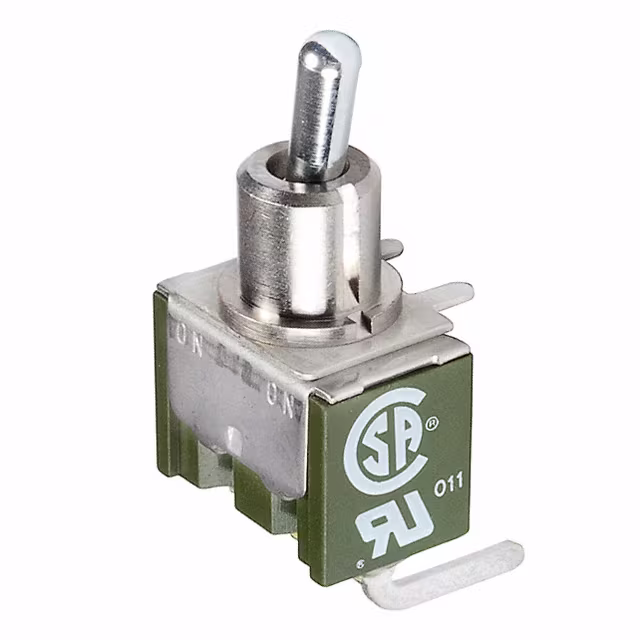

M2012S2A2W30/UCSWITCH TOGGLE SPDT 6A 125V |
1,932 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
34BWSP11B4M7RTSWITCH TOGGLE SPDT 0.4VA 20V |
4,727 |
|
Datasheet |
34B | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 12.60mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
TA2-1D-DC-6SWITCH TOGGLE SPDT 20A 125V |
335 |
|
Datasheet |
TA2 | Bulk | Active | Panel Mount | SPDT | 20A (AC), 21A (DC) | 125 V | 14 V | On-On | Standard Round | 16.50mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.00mm Dia | - | -20°C ~ 85°C |
|
1-1825143-7SWITCH TOGGLE DPDT 0.4VA 20V |
4,843 |
|
Datasheet |
Gemini AE | Bulk | Obsolete | Through Hole, Right Angle, Vertical | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 12.70mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2012SS1W13SWITCH TOGGLE SPDT 6A 125V |
1,034 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
TA2-1D-DC-1-OSWITCH TOGGLE SPDT 20A 125V |
720 |
|
Datasheet |
TA2 | Bulk | Active | Panel Mount | SPDT | 20A (AC), 21A (DC) | 125 V | 14 V | On-On | Standard Round | 16.50mm | Non-Illuminated | - | - | IP55 - Dust Protected, Water Resistant | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.00mm Dia | - | -20°C ~ 85°C |
|
TA2-1G-DC-5SWITCH TOGGLE SPDT 20A 125V |
416 |
|
Datasheet |
TA2 | Bulk | Active | Panel Mount | SPDT | 20A (AC), 21A (DC) | 125 V | 14 V | Mom-Off-Mom | Standard Round | 16.50mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.00mm Dia | - | -20°C ~ 85°C |
|
TA2-1G-DC-1SWITCH TOGGLE SPDT 20A 125V |
201 |
|
Datasheet |
TA2 | Bulk | Active | Panel Mount | SPDT | 20A (AC), 21A (DC) | 125 V | 14 V | Mom-Off-Mom | Standard Round | 16.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.00mm Dia | - | -20°C ~ 85°C |
|
M2012SS1W06SWITCH TOGGLE SPDT 6A 125V |
1,641 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Wire Wrap | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
TA2-1F-DC-6SWITCH TOGGLE SPDT 20A 125V |
1,101 |
|
Datasheet |
TA2 | Bulk | Active | Panel Mount | SPDT | 20A (AC), 21A (DC) | 125 V | 14 V | On-Off-On | Standard Round | 16.50mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.00mm Dia | - | -20°C ~ 85°C |
|
M2019BB1W03SWITCH TOGGLE SPDT 6A 125V |
12,014 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-Mom | Standard Round | 11.50mm | Non-Illuminated | - | - | - | PC Pin | M12 x 1 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

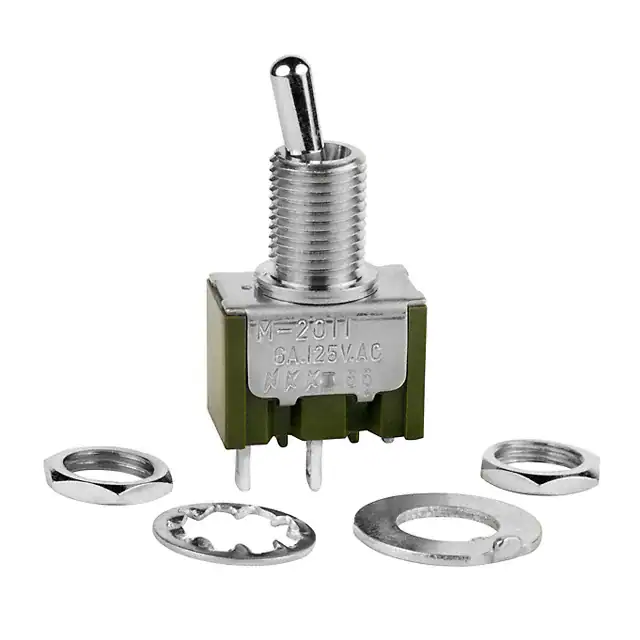

M2011S3S1W01SWITCH TOGGLE SPST 6A 125V |
4,159 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPST | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off | Standard Round | 6.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2022S3S4W01SWITCH TOGGLE DPDT 6A 125V |
186 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 6.50mm | Non-Illuminated | - | - | - | Solder Lug | M6 x 0.75 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
TA2-1F-DC-1-OSWITCH TOGGLE SPDT 20A 125V |
501 |
|
Datasheet |
TA2 | Bulk | Active | Panel Mount | SPDT | 20A (AC), 21A (DC) | 125 V | 14 V | On-Off-On | Standard Round | 16.50mm | Non-Illuminated | - | - | IP55 - Dust Protected, Water Resistant | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.00mm Dia | - | -20°C ~ 85°C |
|
TD1-1A-DC-3-PSWITCH TOGGLE SPST 50A 12V |
302 |
|
Datasheet |
TD1 | Bulk | Active | Panel Mount | SPST | 50A (DC) | - | 12 V | On-Off | Flatted | 28.80mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 0.75 | Circular - 12.20mm Dia | - | -20°C ~ 85°C |
|
M2018SD3G01SWITCH TOGGLE SPDT 0.4VA 28V |
1,257 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
TB2-2A-DC-4SWITCH TOGGLE DPST 20A 12V |
236 |
|
Datasheet |
TB2 | Bulk | Active | Panel Mount | DPST | 20A (DC) | - | 12 V | On-Off | Standard Round | 17.70mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 0.75 | Circular - 12.20mm Dia | - | 0°C ~ 55°C |
|
M2012SS2G13SWITCH TOGGLE SPDT 0.4VA 28V |
4,104 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
TA2-1D-DC-6-OSWITCH TOGGLE SPDT 20A 125V |
1,948 |
|
Datasheet |
TA2 | Bulk | Active | Panel Mount | SPDT | 20A (AC), 21A (DC) | 125 V | 14 V | On-On | Standard Round | 16.50mm | Non-Illuminated | - | - | IP55 - Dust Protected, Water Resistant | Screw Terminal | 15/32-32 | Circular - 12.00mm Dia | - | -20°C ~ 85°C |
|
TA2-1G-DC-6SWITCH TOGGLE SPDT 20A 125V |
935 |
|
Datasheet |
TA2 | Bulk | Active | Panel Mount | SPDT | 20A (AC), 21A (DC) | 125 V | 14 V | Mom-Off-Mom | Standard Round | 16.50mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.00mm Dia | - | -20°C ~ 85°C |
