Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
34CMSP12B2M2QTSWITCH TOGGLE SPDT 3A 125V |
4,812 |
|
Datasheet |
34C | Bulk | Active | Through Hole | SPDT | 3A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 5.33mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34DWMSP15B4M2RTSWITCH TOGGLE SPDT 0.4VA 20V |
3,997 |
|
Datasheet |
34D | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 10.70mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1825142-1SWITCH TOGGLE SPDT 0.4VA 20V |
4,549 |
|
Datasheet |
Gemini AE | Bulk | Obsolete | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 7.62mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
34ASP12B5M2QTSWITCH TOGGLE SPDT 5A 125V |
1,755 |
|
Datasheet |
34A | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 5.08mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
|
|
34ASP11B3M2QTSWITCH TOGGLE SPDT 5A 125V |
2,127 |
|
Datasheet |
34A | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 12.19mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
|
|
34ASP12B5M1QTSWITCH TOGGLE SPDT 5A 125V |
4,373 |
|
Datasheet |
34A | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 5.08mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
|
|
34ASP12B4M2QTSWITCH TOGGLE SPDT 5A 125V |
2,484 |
|
Datasheet |
34A | Bulk | Active | Through Hole | SPDT | 5A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 5.08mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|
TC-1A-DC-6-2SWITCH TOGGLE SPST 6A 125V |
1,035 |
|
Datasheet |
TC | Bulk | Active | Panel Mount | SPST | 6A (AC), 6A (DC) | 125 V | 12 V | On-Off | Standard Round | 11.10mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 0.75 | Circular - 12.20mm Dia | - | -20°C ~ 85°C |
|
|
34BWSP52B1M2QTSWITCH TOGGLE SPDT 5A 125V |
2,300 |
|
Datasheet |
34B | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 125 V | 28 V | On-Off-Mom | Standard Round | 5.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2012SS1W03/UCSWITCH TOGGLE SPDT 6A 125V |
833 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34CMSP12B2M7QTSWITCH TOGGLE SPDT 3A 125V |
3,049 |
|
Datasheet |
34C | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 3A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 5.33mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

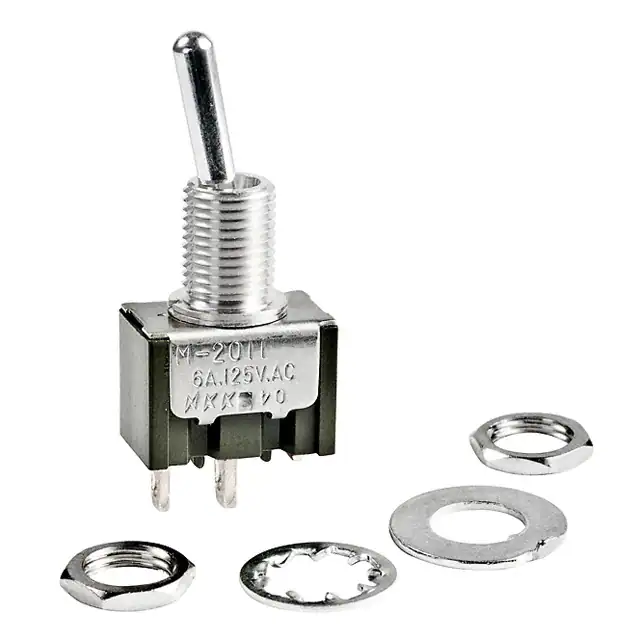

M2011SS1W01/CULSWITCH TOGGLE SPST 6A 125V |
3,346 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPST | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34CMSP53B5M2RTSWITCH TOGGLE SPDT 0.4VA 20V |
2,584 |
|
Datasheet |
34C | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-Mom | Standard Round | 5.08mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2012SS1W01SWITCH TOGGLE SPDT 6A 125V |
1,881 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1825136-9SWITCH TOGGLE SPDT 5A 120V |
4,654 |
|
Datasheet |
Gemini A | Bulk | Obsolete | Through Hole | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 18.03mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34CMSP21B4M2RTSWITCH TOGGLE SPDT 0.4VA 20V |
4,626 |
|
Datasheet |
34C | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Mom | Standard Round | 9.40mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34CMSP52B1M2RTSWITCH TOGGLE SPDT 0.4VA 20V |
4,168 |
|
Datasheet |
34C | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-Mom | Standard Round | 5.33mm | Non-Illuminated | - | - | - | PC Pin | 10-48 | Circular - 4.95mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
TB2-2B-DC-1SWITCH TOGGLE DPST-NO 20A 12V |
360 |
|
Datasheet |
TB2 | Bulk | Active | Panel Mount | DPST-NO | 20A (DC) | - | 12 V | Off-Mom | Standard Round | 17.70mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 0.75 | Circular - 12.20mm Dia | - | 0°C ~ 55°C |
|
TE4-1A-DC-1-GLSWITCH TOGGLE SPST 20A 12V |
936 |
|
Datasheet |
TE4 | Bulk | Active | Panel Mount | SPST | 20A (DC) | - | 12 V | On-Off | Standard Round | 25.00mm | Illuminated | LED, Green | 12 VDC | - | Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.20mm Dia | - | -25°C ~ 85°C |
|
TE4-1A-DC-1-RLSWITCH TOGGLE SPST 20A 12V |
880 |
|
Datasheet |
TE4 | Bulk | Active | Panel Mount | SPST | 20A (DC) | - | 12 V | On-Off | Standard Round | 25.00mm | Illuminated | LED, Red | 12 VDC | - | Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.20mm Dia | - | -25°C ~ 85°C |
