Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TE5-1A-DC-1-RLSWITCH TOGGLE SPST 20A 12V |
247 |
|
Datasheet |
TE5 | Bulk | Active | Panel Mount | SPST | 20A (DC) | - | 12 V | On-Off | Flatted | 25.00mm | Illuminated | LED, Red | 12 VDC | - | Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.20mm Dia | - | -25°C ~ 85°C |
|
A203SYCB04SWITCH TOGGLE DPDT |
1,265 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
11TS115-2SWITCH TOGGLE SPST 20A 125V |
565 |
|
Datasheet |
TS | Bulk | Obsolete | Panel Mount | SPST | 20A (AC) | 125 V | - | On-Off | Standard Round | 16.51mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.40mm Dia | - | -54°C ~ 71°C |
|
TA1-1D-DC-4SWITCH TOGGLE SPDT 20A 12V |
376 |
|
Datasheet |
TA1 | Bulk | Active | Panel Mount | SPDT | 20A (DC) | - | 12 V | On-On | Standard Round | 15.90mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 0.75 | Circular - 12.20mm Dia | - | 0°C ~ 65°C |
|
|
A108P3YZQSWITCH TOGGLE SPDT 5A 120V |
4,078 |
|
Datasheet |
Gemini A | Bulk | Obsolete | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Mom | Flatted | 12.29mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -20°C ~ 85°C |
|
|
M2012SD1W01-BASWITCH TOGGLE SPDT 6A 125V |
3,967 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Black Cap | -30°C ~ 85°C |
|
TC-1A-DC-W-1SWITCH TOGGLE SPST 6A 12V |
756 |
|
Datasheet |
TC | Bulk | Active | Panel Mount | SPST | 6A (DC) | - | 12 V | On-Off | Ball Tip | 9.00mm | Non-Illuminated | - | - | - | Wire Leads | 15/32-32 | Circular - 12.20mm Dia | - | -20°C ~ 85°C |
|

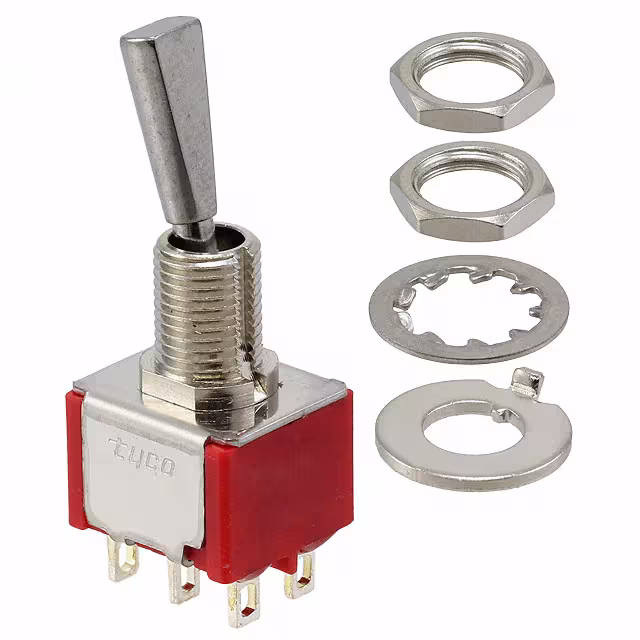

3-1825138-3SWITCH TOGGLE DPDT 5A 120V |
2,604 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-Mom | Flatted | 12.29mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
TB2-1A-DC-1SWITCH TOGGLE SPST 20A 12V |
998 |
|
Datasheet |
TB2 | Bulk | Active | Panel Mount | SPST | 20A (DC) | - | 12 V | On-Off | Standard Round | 17.70mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 0.75 | Circular - 12.20mm Dia | - | 0°C ~ 55°C |
|
|
2-1825137-6SWITCH TOGGLE SPDT 5A 120V |
4,117 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | Mom-Off-Mom | Standard Round | 5.08mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2012SS2W03SWITCH TOGGLE SPDT 6A 125V |
3,775 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
TA1-1F-DC-4SWITCH TOGGLE SPDT 20A 12V |
964 |
|
Datasheet |
TA1 | Bulk | Active | Panel Mount | SPDT | 20A (DC) | - | 12 V | On-Off-On | Standard Round | 16.50mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 0.75 | Circular - 12.20mm Dia | - | 0°C ~ 65°C |
|

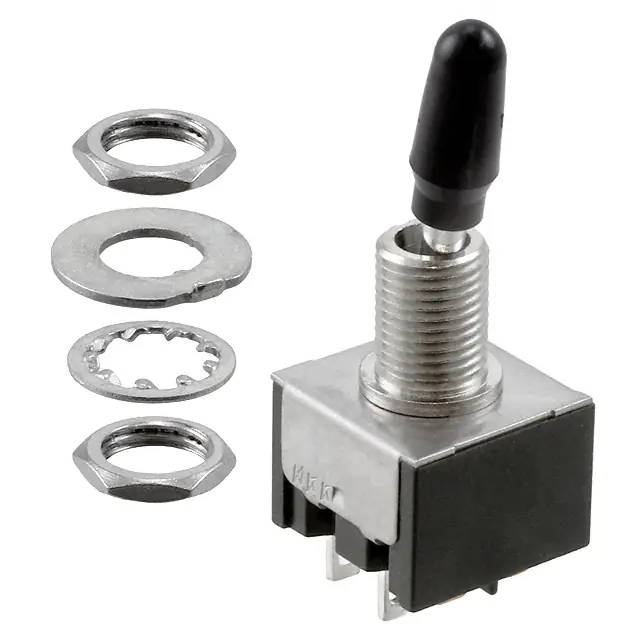

M2022SS1W01-BASWITCH TOGGLE DPDT 6A 125V |
257 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Black Cap | -30°C ~ 85°C |
|

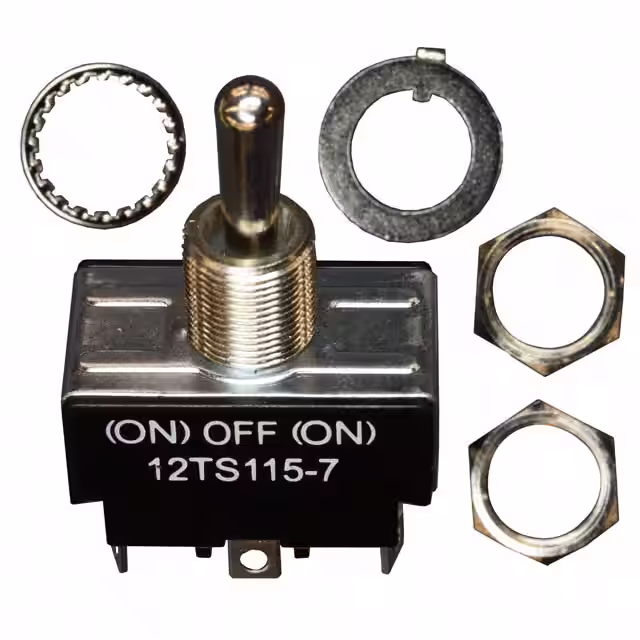

12TS115-7SWITCH TOGGLE DPDT 20A 125V |
1,526 |
|
Datasheet |
TS | Bulk | Obsolete | Panel Mount | DPDT | 20A (AC) | 125 V | - | Mom-Off-Mom | Standard Round | 16.51mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.40mm Dia | - | -54°C ~ 71°C |
|
TC-1A-DC-6-1SWITCH TOGGLE SPST 6A 125V |
394 |
|
Datasheet |
TC | Bulk | Active | Panel Mount | SPST | 6A (AC), 6A (DC) | 125 V | 12 V | On-Off | Ball Tip | 9.00mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 0.75 | Circular - 12.20mm Dia | - | -20°C ~ 85°C |
|
|
1-1825142-2SWITCH TOGGLE SPDT 5A 120V |
3,302 |
|
Datasheet |
Gemini AE | Bulk | Active | Through Hole | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 7.62mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
3-1825137-5SWITCH TOGGLE SPDT 0.4VA 20V |
2,934 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | Mom-Off-Mom | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2012SD1W01SWITCH TOGGLE SPDT 6A 125V |
4,517 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

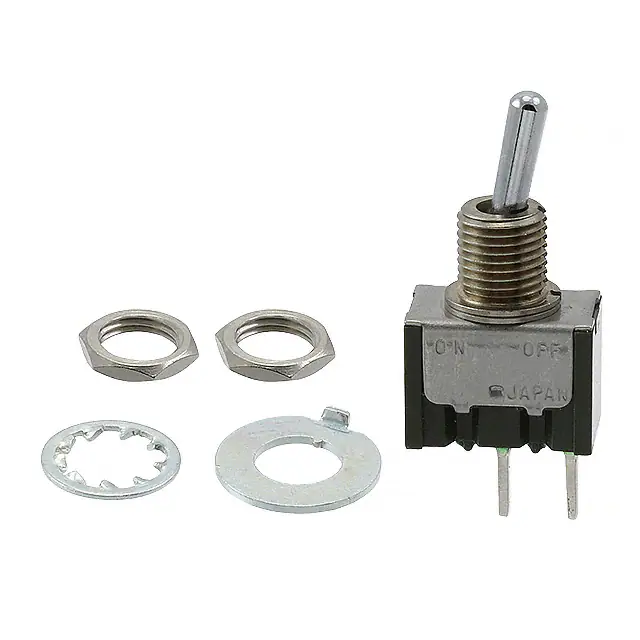

M2011S3A1W03SWITCH TOGGLE SPST 6A 125V |
3,764 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPST | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off | Standard Round | 8.28mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1571924-5SWITCH TOGGLE SPDT 6A 125V |
1,021 |
|
Datasheet |
MTE Green | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 28 V | On-Mom | Standard Round | 10.49mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.40mm Dia | Epoxy Sealed Terminals | -20°C ~ 80°C |
