Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2012S2A2G30SWITCH TOGGLE SPDT 0.4VA 28V |
1,269 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
34ASP42B4M7GTSWITCH TOGGLE SPDT 5A 125V |
3,838 |
|
Datasheet |
34A | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 5A (AC/DC) | 125 V | 28 V | Mom-Off-Mom | Standard Round | 5.08mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|

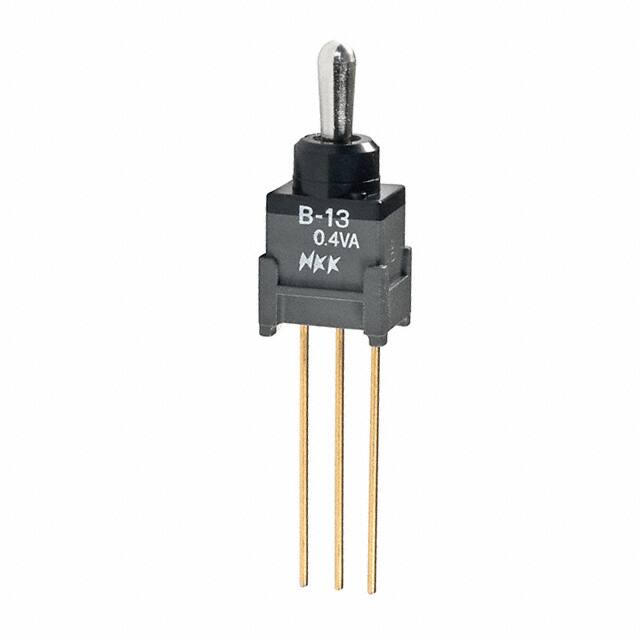

B13JWSWITCH TOGGLE SPDT 0.4VA 28V |
2,383 |
|
Datasheet |
B | Tray | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Standard Round | 6.30mm | Non-Illuminated | - | - | - | Wire Wrap | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
TE3-1A-DC-1-ULWEDGE TOGGLE OFF-ON BLUE LED |
1,673 |
|
Datasheet |
TE3 | Bulk | Active | Panel Mount | SPST | 20A (DC) | - | 12 V | On-Off | Standard Round | 19.30mm | Illuminated | LED, Blue | 12 VDC | - | Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.20mm Dia | - | -25°C ~ 85°C |
|
|
34CMSP11B1M1QTSWITCH TOGGLE SPDT 3A 125V |
3,400 |
|
Datasheet |
34C | Bulk | Active | Panel Mount | SPDT | 3A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 9.40mm | Non-Illuminated | - | - | - | Solder Lug | 10-48 | Circular - 4.95mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34CMDP34B5M2QTSWITCH TOGGLE DPDT 3A 125V |
4,853 |
|
Datasheet |
34C | Bulk | Active | Panel Mount | DPDT | 3A (AC/DC) | 125 V | 28 V | On-Off-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
A101KZQ04SWITCH TOGGLE SPDT |
120 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3-1825137-7SWITCH TOGGLE SPDT 5A 120V |
1,063 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | Mom-Off-Mom | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34ADP11B1M1QTSWITCH TOGGLE DPDT 5A 125V |
1,760 |
|
Datasheet |
34A | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
|
|
M2012SD1W01-BESWITCH TOGGLE SPDT 6A 125V |
734 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Yellow Cap | -30°C ~ 85°C |
|
TA2-1A-DC-5SWITCH TOGGLE SPST 20A 125V |
249 |
|
Datasheet |
TA2 | Bulk | Active | Panel Mount | SPST | 20A (AC), 21A (DC) | 125 V | 14 V | On-Off | Standard Round | 16.50mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.00mm Dia | - | -20°C ~ 85°C |
|
B15AWSWITCH TOGGLE SPDT 0.4VA 28V |
4,609 |
|
Datasheet |
B | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Mom | Standard Round | 10.00mm | Non-Illuminated | - | - | - | Wire Wrap | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34CMDP11B1M2RTSWITCH TOGGLE DPDT 0.4VA 20V |
4,766 |
|
Datasheet |
34C | Bulk | Active | Panel Mount | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 9.40mm | Non-Illuminated | - | - | - | PC Pin | 10-48 | Circular - 4.95mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2018BB1W01SWITCH TOGGLE SPDT 6A 125V |
1,005 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 11.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

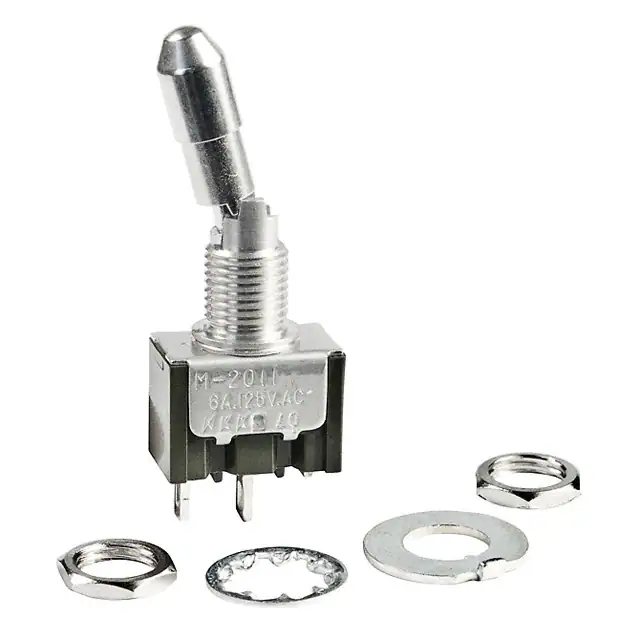

M2011LL1W01SWITCH TOGGLE SPST 6A 125V |
1,728 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPST | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off | Locking Lever | 16.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2011SS1W03-BASWITCH TOGGLE SPST 6A 125V |
3,490 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPST | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Black Cap | -30°C ~ 85°C |
|
8J1012-ZSWITCH TOGGLE SPDT 6A 125V |
126 |
|
Datasheet |
8J | Bulk | Active | Through Hole | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 6.80mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | - | -30°C ~ 85°C |
|
|
34ASP13B4M2RTSWITCH TOGGLE SPDT 0.4VA 20V |
4,624 |
|
Datasheet |
34A | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 13.97mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|
TA1A-1A-DC-1-GLSWITCH TOGGLE SPST 20A 12V |
2,078 |
|
Datasheet |
TA1A | Bulk | Active | Panel Mount | SPST | 20A (DC) | - | 12 V | On-Off | Flatted | 16.00mm | Illuminated | LED, Green | 12 VDC | - | Quick Connect - 0.250" (6.3mm) | M12 x 0.75 | Circular - 12.20mm Dia | - | -20°C ~ 85°C |
|
TA2-1A-DC-1SWITCH TOGGLE SPST 20A 125V |
1,427 |
|
Datasheet |
TA2 | Bulk | Active | Panel Mount | SPST | 20A (AC), 21A (DC) | 125 V | 14 V | On-Off | Standard Round | 16.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.00mm Dia | - | -20°C ~ 85°C |
