Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2022SS1W30SWITCH TOGGLE DPDT 6A 125V |
3,911 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
TD2-1A-DC-3-HSWITCH TOGGLE SPST 50A 12V |
1,368 |
|
Datasheet |
TD2 | Bulk | Active | Panel Mount | SPST | 50A (DC) | - | 12 V | On-Off | Flatted | 28.40mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.20mm Dia | - | -20°C ~ 85°C |
|
A12KBSWITCH TOGGLE SPDT 0.4VA 28V |
4,956 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Lever for Cap | 5.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
A18JWSWITCH TOGGLE SPDT 0.4VA 28V |
4,047 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Standard Round | 6.30mm | Non-Illuminated | - | - | - | Wire Wrap | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
A18JPSWITCH TOGGLE SPDT 0.4VA 28V |
4,368 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Standard Round | 6.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
|
A12KB1SWITCH TOGGLE SPDT 0.4VA 28V |
4,698 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Lever for Cap | 5.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
|
A19AWSWITCH TOGGLE SPDT 0.4VA 28V |
1,386 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-Mom | Standard Round | 10.00mm | Non-Illuminated | - | - | - | Wire Wrap | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
|
1-1825138-3SWITCH TOGGLE DPDT 0.4VA 20V |
3,837 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 5.08mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
TB1-2F-DC-1SWITCH TOGGLE DPDT 20A 125V |
926 |
|
Datasheet |
TB1 | Bulk | Active | Panel Mount | DPDT | 20A (AC), 21A (DC) | 125 V | 14 V | On-Off-On | Standard Round | 16.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.00mm Dia | - | - |
|
TB1-2F-DC-5SWITCH TOGGLE DPDT 20A 125V |
413 |
|
Datasheet |
TB1 | Bulk | Active | Panel Mount | DPDT | 20A (AC), 21A (DC) | 125 V | 14 V | On-Off-On | Standard Round | 16.50mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.00mm Dia | - | - |
|
M2018ES1W01SWITCH TOGGLE SPDT 6A 125V |
1,841 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | Mom-Off-Mom | Flatted | 11.40mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2011B2B1W01SWITCH TOGGLE SPST 6A 125V |
2,027 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPST | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2023SS1W30SWITCH TOGGLE DPDT 6A 125V |
1,627 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle | DPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2012LL1G01SWITCH TOGGLE SPDT 0.4VA 28V |
1,052 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Locking Lever | 16.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

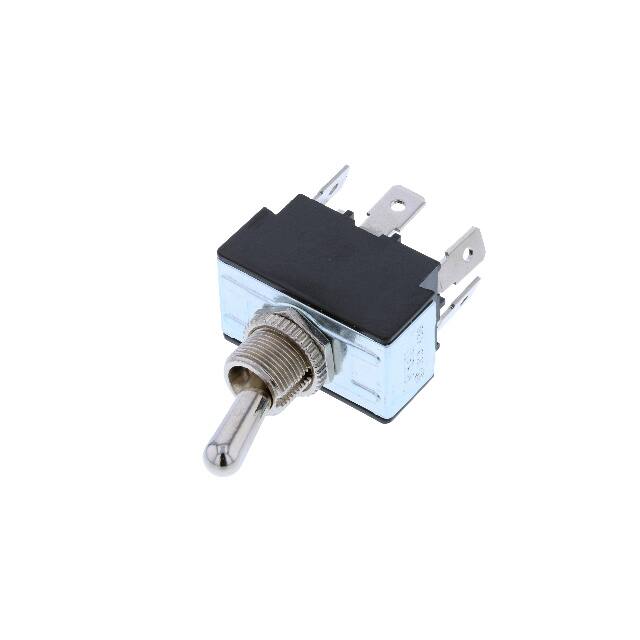

TB1-2E-DC-1SWITCH TOGGLE DPDT 20A 125V |
922 |
|
Datasheet |
TB1 | Bulk | Active | Panel Mount | DPDT | 20A (AC), 21A (DC) | 125 V | 14 V | On-Mom | Standard Round | 16.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.00mm Dia | - | - |
|
TD1-1A-DC-3-HSWITCH TOGGLE SPST 50A 12V |
878 |
|
Datasheet |
TD1 | Bulk | Active | Panel Mount | SPST | 50A (DC) | - | 12 V | On-Off | Standard Round | 40.90mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 0.75 | Circular - 12.20mm Dia | - | -20°C ~ 85°C |
|
M2025SS1W01SWITCH TOGGLE DPDT 6A 125V |
3,378 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
TB1-2H-DC-1SWITCH TOGGLE DPDT 20A 125V |
326 |
|
Datasheet |
TB1 | Bulk | Active | Panel Mount | DPDT | 20A (AC), 21A (DC) | 125 V | 14 V | On-Off-Mom | Standard Round | 16.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.00mm Dia | - | - |
|
|
34ADP12B3M3QTSWITCH TOGGLE DPDT 5A 125V |
4,737 |
|
Datasheet |
34A | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | Quick Connect - 0.062" (1.5mm) | 1/4-40 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
|

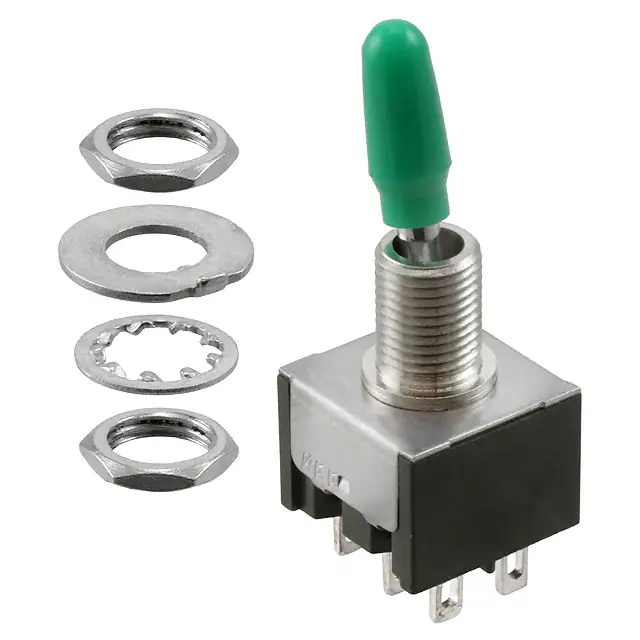

M2022SS1W01-BFSWITCH TOGGLE DPDT 6A 125V |
3,836 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Green Cap | -30°C ~ 85°C |
