Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A12KHSWITCH TOGGLE SPDT 0.4VA 28V |
4,552 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Lever for Cap | 5.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
|
A18JBSWITCH TOGGLE SPDT 0.4VA 28V |
3,550 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Standard Round | 6.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
|
A18JB1SWITCH TOGGLE SPDT 0.4VA 28V |
3,092 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Standard Round | 6.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
|
A19ABSWITCH TOGGLE SPDT 0.4VA 28V |
3,813 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-Mom | Standard Round | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
TB2-2F-DC-4SWITCH TOGGLE DPDT 20A 12V |
280 |
|
Datasheet |
TB2 | Bulk | Active | Panel Mount | DPDT | 20A (DC) | - | 12 V | On-Off-On | Standard Round | 18.40mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 0.75 | Circular - 12.20mm Dia | - | 0°C ~ 55°C |
|
|
M2011SS1W01-BBSWITCH TOGGLE SPST 6A 125V |
4,788 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPST | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | White Cap | -30°C ~ 85°C |
|
|
M2011SS1W01/CUL-BBSWITCH TOGGLE SPST 6A 125V |
3,500 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPST | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off | Standard Round with Cap | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | White Cap | -30°C ~ 85°C |
|
|
M2012SS4W01-BBSWITCH TOGGLE SPDT 6A 125V |
2,137 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | - | Solder Lug | M6 x 0.75 | Circular - 6.50mm Dia | White Cap | -30°C ~ 85°C |
|
|
B22AP-GCSWITCH TOGGLE DPDT 0.4VA 28V |
3,187 |
|
Datasheet |
B | Bulk | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round with Cap | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Red Cap | -30°C ~ 85°C |
|
B23JWSWITCH TOGGLE DPDT 0.4VA 28V |
4,525 |
|
Datasheet |
B | Tray | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Standard Round | 6.30mm | Non-Illuminated | - | - | - | Wire Wrap | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2012B2B3W01SWITCH TOGGLE SPDT 6A 125V |
4,062 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
B13KB-BASWITCH TOGGLE SPDT 0.4VA 28V |
1,735 |
|
Datasheet |
B | Tray | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Snap On Paddle | 14.20mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Black Actuator | -30°C ~ 85°C |
|
|
B13KB-AHSWITCH TOGGLE SPDT 0.4VA 28V |
3,492 |
|
Datasheet |
B | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Snap On Paddle | 9.40mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Gray Actuator | -30°C ~ 85°C |
|
M2022SD3W01SWITCH TOGGLE DPDT 6A 125V |
108 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2019S2S1A01SWITCH TOGGLE SPDT 6A 125V |
3,255 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-Mom | Standard Round | 5.08mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
TD1-1A-DC-3-MSWITCH TOGGLE SPST 50A 12V |
909 |
|
Datasheet |
TD1 | Bulk | Active | Panel Mount | SPST | 50A (DC) | - | 12 V | On-Off | Flatted | 38.40mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 0.75 | Circular - 12.20mm Dia | - | -20°C ~ 85°C |
|

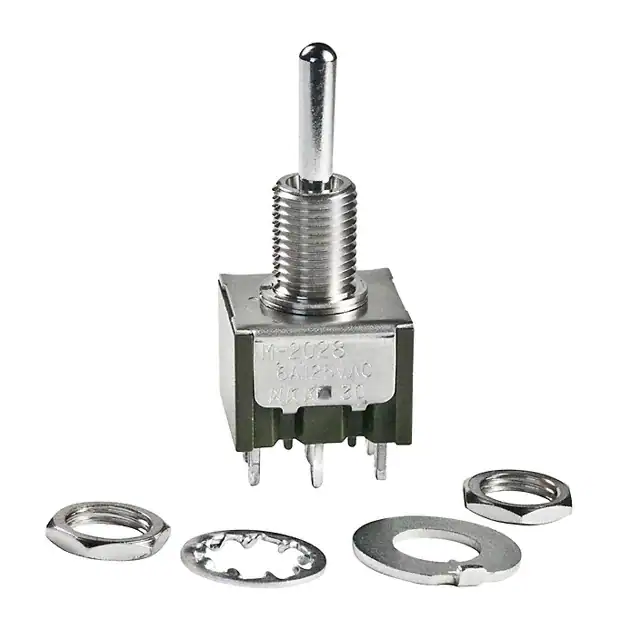

M2028SS1W01SWITCH TOGGLE DPDT 6A 125V |
4,798 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 3A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
B13KH-AASWITCH TOGGLE SPDT 0.4VA 28V |
1,225 |
|
Datasheet |
B | Bulk | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Snap On Paddle | 9.40mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Black Actuator | -30°C ~ 85°C |
|
8A1062C-ZSWITCH TOGGLE SPDT 25MA 20V |
119 |
|
Datasheet |
8A | Bulk | Obsolete | Panel Mount | SPDT | 25mA (DC) | - | 20 V | On-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Sealed - Flux Protection | -30°C ~ 85°C |
|
A18AHSWITCH TOGGLE SPDT 0.4VA 28V |
2,732 |
|
Datasheet |
A | Tray | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Standard Round | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
