Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2T13SA5A13SWITCH TOGGLE SPDT 6A 125V |
1,699 |
|
Datasheet |
M2 | Bulk | Active | Through Hole | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 12.70mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2T13SA5G13SWITCH TOGGLE SPDT 0.4VA 28V |
3,012 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Standard Round | 12.70mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|

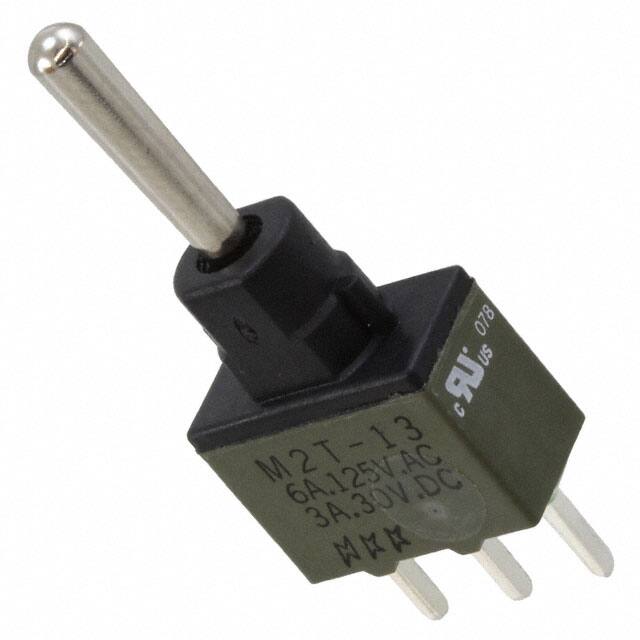

M2T13SA5W03/CULSWITCH TOGGLE SPDT 6A 125V |
4,962 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 12.70mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2T13SA5W05SWITCH TOGGLE SPDT 6A 125V |
2,773 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 12.70mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
M2T13SA5W13SWITCH TOGGLE SPDT 6A 125V |
1,982 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 12.70mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2T15S4A5G30SWITCH TOGGLE SPDT 0.4VA 28V |
4,592 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Mom | Standard Round | 7.62mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2T15S4A5G40SWITCH TOGGLE SPDT 0.4VA 28V |
4,014 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Mom | Standard Round | 7.62mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2T15S4A5W13SWITCH TOGGLE SPDT 6A 125V |
1,293 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Mom | Standard Round | 7.62mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2T18S4A5G13SWITCH TOGGLE SPDT 0.4VA 28V |
1,424 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Standard Round | 7.62mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2T18S4A5W13SWITCH TOGGLE SPDT 6A 125V |
2,240 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 7.62mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
M2T18SA5A03SWITCH TOGGLE SPDT 6A 125V |
1,928 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 12.70mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2T18SA5A13/CULSWITCH TOGGLE SPDT 6A 125V |
1,923 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 12.70mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2T18SA5G13SWITCH TOGGLE SPDT 0.4VA 28V |
2,829 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Standard Round | 12.70mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2T18SA5W13SWITCH TOGGLE SPDT 6A 125V |
3,376 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 12.70mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2T19S4A5G30SWITCH TOGGLE SPDT 0.4VA 28V |
3,393 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-Mom | Standard Round | 7.62mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2T19S4A5W13SWITCH TOGGLE SPDT 6A 125V |
1,840 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-Mom | Standard Round | 7.62mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2T19SA5G03SWITCH TOGGLE SPDT 0.4VA 28V |
2,021 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-Mom | Standard Round | 12.70mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|

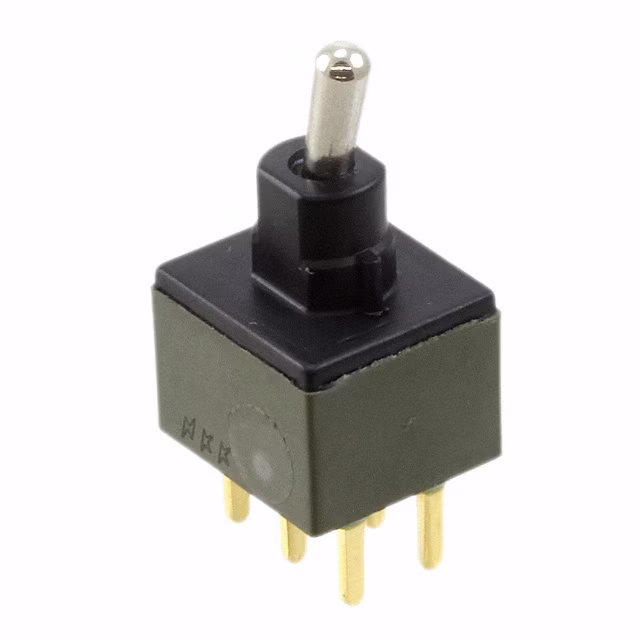

M2T22S4A5A03SWITCH TOGGLE DPDT 6A 125V |
3,585 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 7.62mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
M2T22S4A5A30SWITCH TOGGLE DPDT 6A 125V |
2,863 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole, Right Angle | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 7.62mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2T22S4A5W40SWITCH TOGGLE DPDT 6A 125V |
2,562 |
|
Datasheet |
M2 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 7.62mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
