Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

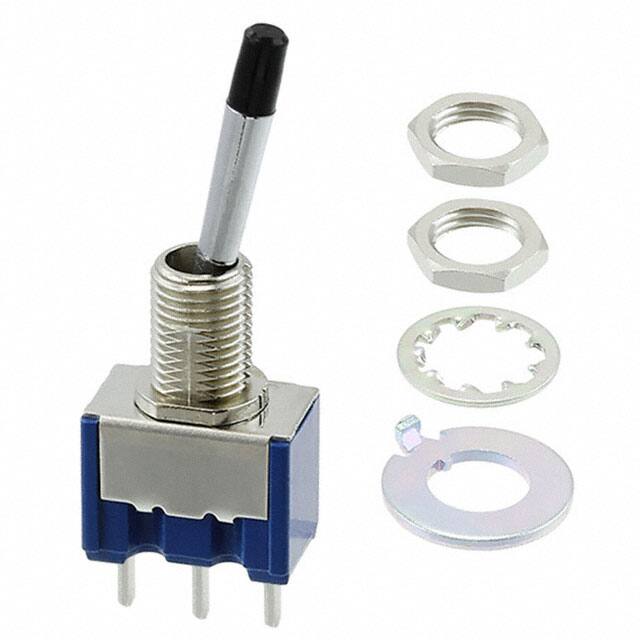

8S1012-ZSWITCH TOGGLE SPDT 6A 125V |
2,383 |
|
Datasheet |
8S | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round with Cap | 15.20mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Black Cap | -20°C ~ 85°C |
|
ATLE44E-2M3-ZSWITCH TOGGLE 4PDT 50MA 48V |
1,168 |
|
Datasheet |
ATLE4 | Tray | Obsolete | Through Hole | 4PDT | 50mA (AC/DC) | 48 V | 48 V | On-Off-On | Locking Lever | 12.70mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -20°C ~ 85°C |
|
ATE2T-2M3-10-ZSWITCH TOGGLE DPDT 50MA 48V |
1,694 |
|
Datasheet |
ATE | Tray | Obsolete | Through Hole | DPDT | 50mA (AC/DC) | 48 V | 48 V | On-Off-Mom | Standard Round | 6.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Washable | -20°C ~ 85°C |
|
ATE2F-5M3-10-ZSWITCH TOGGLE DPDT 50MA 48V |
3,964 |
|
Datasheet |
ATE | Tray | Obsolete | Through Hole, Right Angle | DPDT | 50mA (AC/DC) | 48 V | 48 V | On-Mom | Standard Round | 6.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Washable | -20°C ~ 85°C |
|

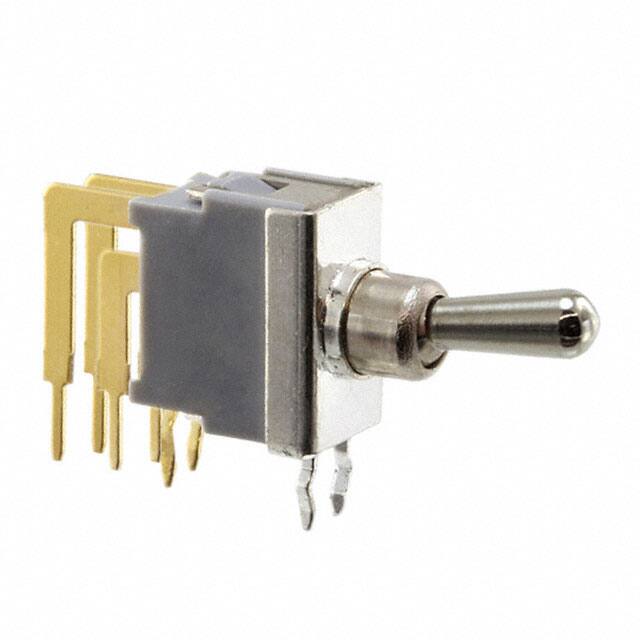

ATE2F-7M3-10-ZSWITCH TOGGLE DPDT 50MA 48V |
1,738 |
|
Datasheet |
ATE | Tray | Obsolete | Through Hole, Right Angle, Vertical | DPDT | 50mA (AC/DC) | 48 V | 48 V | On-Mom | Standard Round | 6.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Washable | -20°C ~ 85°C |
|
ATE2F-2F3-10-ZSWITCH TOGGLE DPDT 50MA 48V |
3,799 |
|
Datasheet |
ATE | Tray | Obsolete | Through Hole | DPDT | 50mA (AC/DC) | 48 V | 48 V | On-Mom | Flatted | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Washable | -20°C ~ 85°C |
|
ATE2D-7F3-10-ZSWITCH TOGGLE DPDT 50MA 48V |
4,783 |
|
Datasheet |
ATE | Tray | Obsolete | Through Hole, Right Angle, Vertical | DPDT | 50mA (AC/DC) | 48 V | 48 V | On-On | Flatted | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Washable | -20°C ~ 85°C |
|

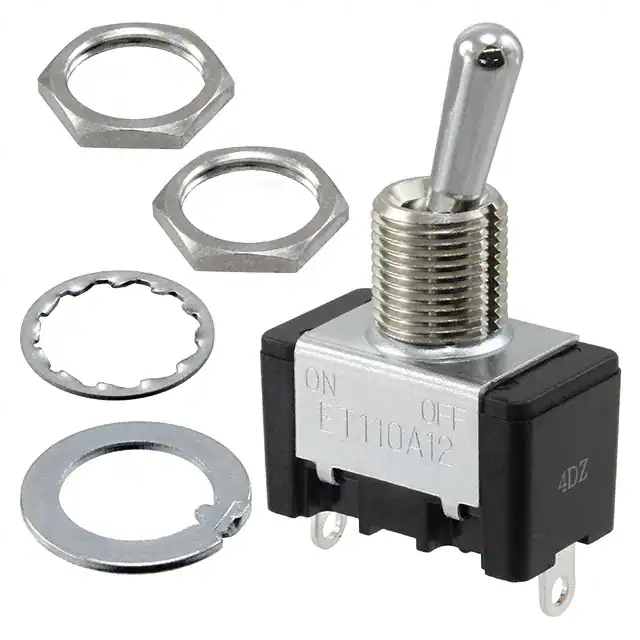

ET110F12-ZSWITCH TOGGLE SPDT 10A 125V |
3,517 |
|
Datasheet |
ET | Bulk | Obsolete | Panel Mount | SPDT | 10A (AC) | 125 V | - | On-Mom | Standard Round | 17.00mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | - |
|
ET225P10-ZSWITCH TOGGLE DPDT 25A 125V |
2,236 |
|
Datasheet |
ET | Bulk | Obsolete | Panel Mount | DPDT | 25A (AC) | 125 V | - | On-Off-On | Standard Round | 17.00mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 1 | Circular - 12.50mm Dia | - | - |
|
ET315F12-ZSWITCH TOGGLE 3PDT 15A 125V |
3,632 |
|
Datasheet |
ET | Bulk | Obsolete | Panel Mount | 3PDT | 15A (AC) | 125 V | - | On-Mom | Standard Round | 17.00mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | - |
|
ET410P12-ZSWITCH TOGGLE 4PDT 10A 125V |
2,453 |
|
Datasheet |
ET | Bulk | Obsolete | Panel Mount | 4PDT | 10A (AC) | 125 V | - | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | - |
|

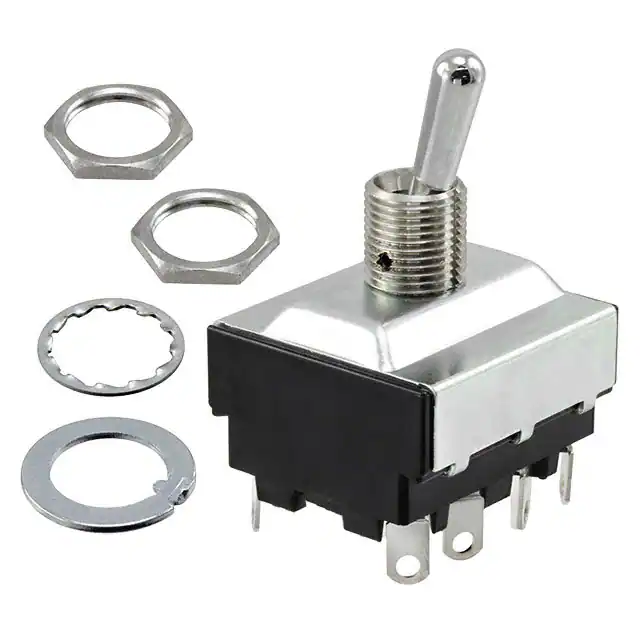

ET415K12-ZSWITCH TOGGLE 4PST 15A 125V |
4,367 |
|
Datasheet |
ET | Bulk | Obsolete | Panel Mount | 4PST | 15A (AC) | 125 V | - | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | - |
|

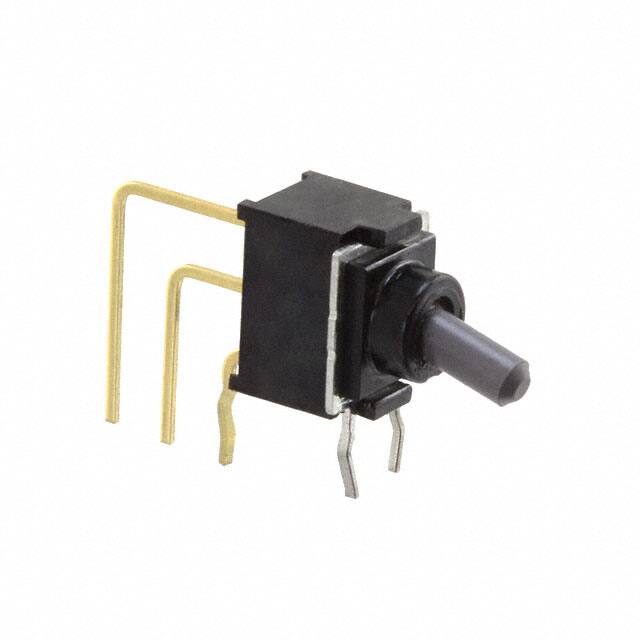

FT1F-4M-ZSWITCH TOGGLE SPDT 0.4VA 28V |
1,476 |
|
Datasheet |
FT | Tray | Obsolete | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Mom | Standard Round | 3.80mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Washable, Yellow Actuator | -40°C ~ 85°C |
|
8A1021C-ZSWITCH TOGGLE SPDT 25MA 20V |
1,279 |
|
Datasheet |
8A | Bulk | Obsolete | Panel Mount | SPDT | 25mA (DC) | - | 20 V | On-Off-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Sealed - Flux Protection | -20°C ~ 85°C |
|

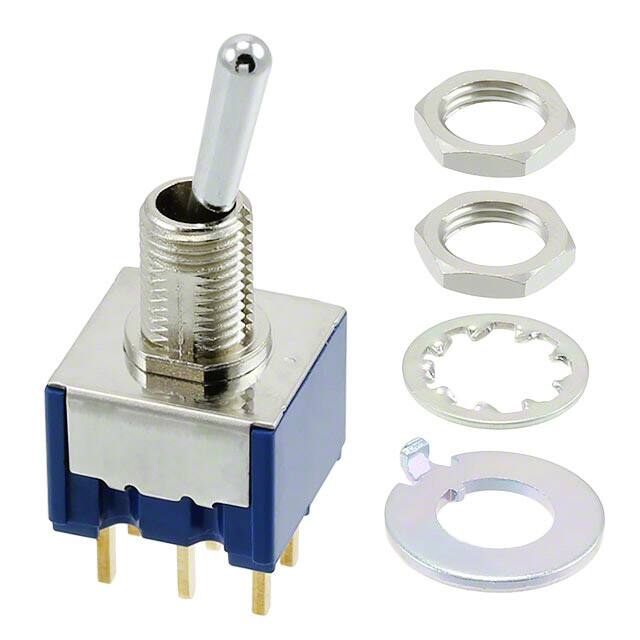

8A2012C-ZSWITCH TOGGLE DPDT 25MA 20V |
4,967 |
|
Datasheet |
8A | Bulk | Obsolete | Panel Mount | DPDT | 25mA (DC) | - | 20 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Sealed - Flux Protection | -20°C ~ 85°C |
|
8A2042-ZSWITCH TOGGLE DPDT 6A 125V |
3,998 |
|
Datasheet |
8A | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Sealed - Flux Protection | -20°C ~ 85°C |
|
8A2101-ZSWITCH TOGGLE SP3T 6A 125V |
4,092 |
|
Datasheet |
8A | Bulk | Obsolete | Panel Mount | SP3T | 6A (AC), 4A (DC) | 125 V | 30 V | On-On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Jumper needed to achieve triple throw | -20°C ~ 85°C |
|
|
8A2111-ZSWITCH TOGGLE SP3T 6A 125V |
3,464 |
|
Datasheet |
8A | Bulk | Obsolete | Panel Mount | SP3T | 6A (AC), 4A (DC) | 125 V | 30 V | On-On-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Jumper needed to achieve triple throw | -20°C ~ 85°C |
|
|
8A2121-ZSWITCH TOGGLE SP3T 6A 125V |
4,046 |
|
Datasheet |
8A | Bulk | Obsolete | Panel Mount | SP3T | 6A (AC), 4A (DC) | 125 V | 30 V | Mom-On-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Jumper needed to achieve triple throw | -20°C ~ 85°C |
|

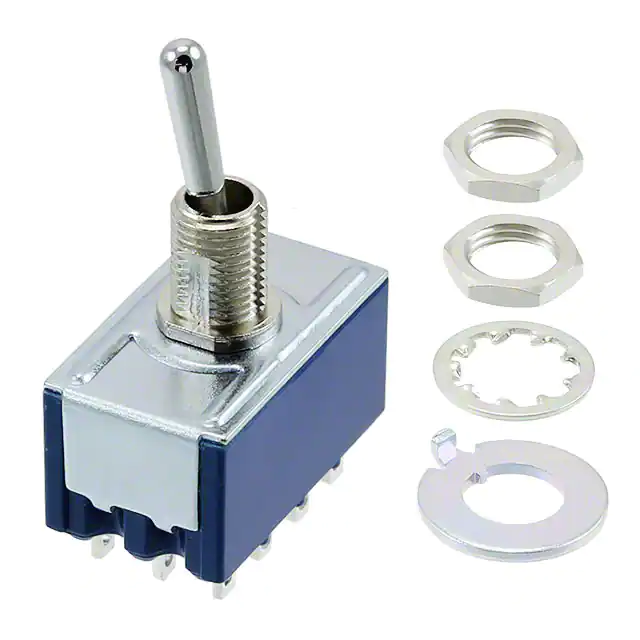

8A4061-ZSWITCH TOGGLE 4PDT 6A 125V |
4,836 |
|
Datasheet |
8A | Bulk | Obsolete | Panel Mount | 4PDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Sealed - Flux Protection | -20°C ~ 85°C |
