Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8F2051-ZSWITCH TOGGLE DPDT 6A 125V |
1,354 |
|
Datasheet |
8F | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | Splash Proof | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -20°C ~ 85°C |
|
|
8F2061-ZSWITCH TOGGLE DPDT 6A 125V |
3,826 |
|
Datasheet |
8F | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | Splash Proof | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -20°C ~ 85°C |
|
8F3011-ZSWITCH TOGGLE 3PDT 6A 125V |
2,070 |
|
Datasheet |
8F | Bulk | Obsolete | Panel Mount | 3PDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | Splash Proof | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -20°C ~ 85°C |
|
8G1014C-ZSWITCH TOGGLE SPDT 25MA 20V |
1,870 |
|
Datasheet |
8G | Bulk | Obsolete | Through Hole, Right Angle | SPDT | 25mA (DC) | - | 20 V | On-On | Standard Round | 6.80mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Washable | -25°C ~ 80°C |
|
8G1044-ZSWITCH TOGGLE SPDT 6A 125V |
2,144 |
|
Datasheet |
8G | Bulk | Obsolete | Through Hole, Right Angle | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 6.80mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Washable | -25°C ~ 80°C |
|
8G1066-ZSWITCH TOGGLE SPDT 6A 125V |
4,107 |
|
Datasheet |
8G | Bulk | Obsolete | Through Hole, Right Angle, Vertical | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Mom | Standard Round | 6.80mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Washable | -25°C ~ 80°C |
|

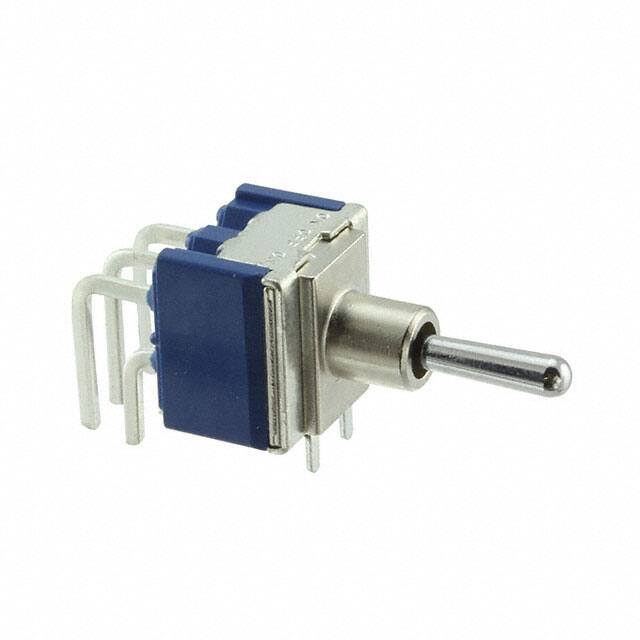

8GA2014-ZSWITCH TOGGLE DPDT 6A 125V |
1,103 |
|
Datasheet |
8GA | Bulk | Obsolete | Through Hole, Right Angle | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Washable | -20°C ~ 85°C |
|
8GA2016-ZSWITCH TOGGLE DPDT 6A 125V |
4,197 |
|
Datasheet |
8GA | Bulk | Obsolete | Through Hole, Right Angle, Vertical | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Washable | -20°C ~ 85°C |
|
8GA2022-ZSWITCH TOGGLE DPDT 6A 125V |
4,674 |
|
Datasheet |
8GA | Bulk | Obsolete | Through Hole | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Washable | -20°C ~ 85°C |
|
|
8GA2024-ZSWITCH TOGGLE DPDT 6A 125V |
1,782 |
|
Datasheet |
8GA | Bulk | Obsolete | Through Hole, Right Angle | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Washable | -20°C ~ 85°C |
|

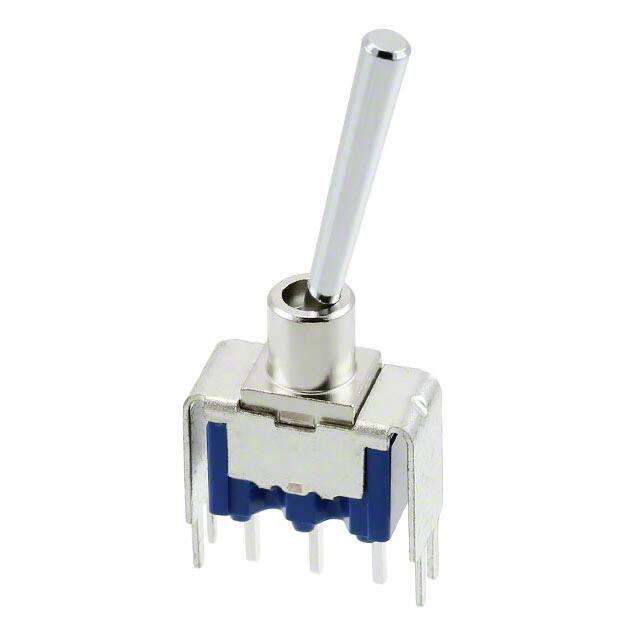

8GD1012-ZSWITCH TOGGLE SPDT 6A 125V |
1,888 |
|
Datasheet |
8GD | Bulk | Obsolete | Through Hole | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 21.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Washable | -20°C ~ 85°C |
|

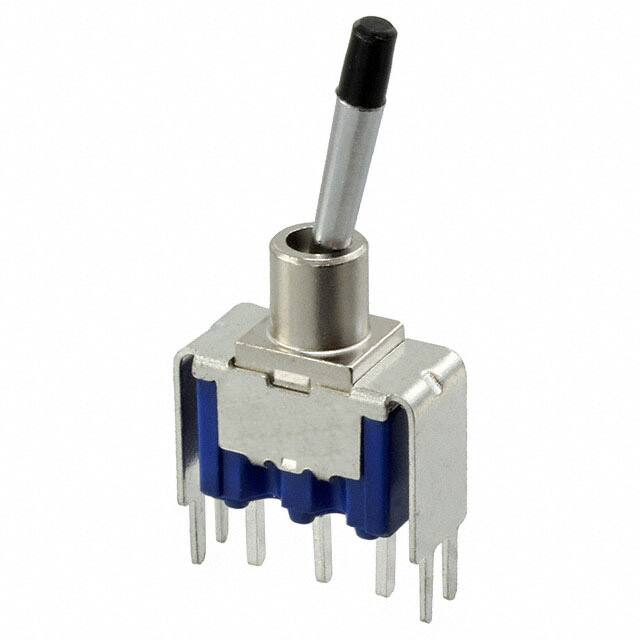

8GS1012-ZSWITCH TOGGLE SPDT 6A 125V |
3,093 |
|
Datasheet |
8GS | Bulk | Obsolete | Through Hole | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round with Cap | 15.20mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Washable | -20°C ~ 85°C |
|
8J1011C-ZSWITCH TOGGLE SPDT 25MA 20V |
4,803 |
|
Datasheet |
8J | Bulk | Obsolete | Panel Mount | SPDT | 25mA (DC) | - | 20 V | On-On | Standard Round | 6.80mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -20°C ~ 85°C |
|
8J1061-ZSWITCH TOGGLE SPDT 6A 125V |
1,737 |
|
Datasheet |
8J | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Mom | Standard Round | 6.80mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -20°C ~ 85°C |
|
8J3011-ZSWITCH TOGGLE 3PDT 6A 125V |
1,277 |
|
Datasheet |
8J | Bulk | Obsolete | Panel Mount | 3PDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 6.80mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -20°C ~ 85°C |
|

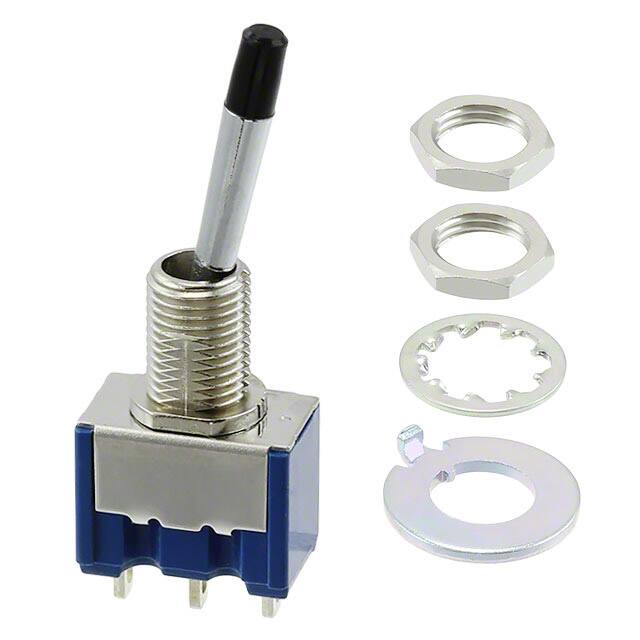

8S1011-ZSWITCH TOGGLE SPDT 6A 125V |
4,174 |
|
Datasheet |
8S | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round with Cap | 15.20mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Black Cap | -20°C ~ 85°C |
|

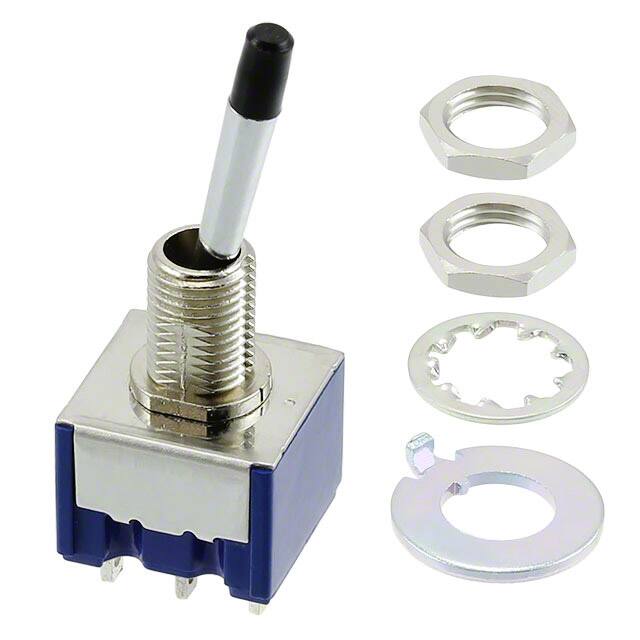

8S2011-ZSWITCH TOGGLE DPDT 6A 125V |
4,041 |
|
Datasheet |
8S | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round with Cap | 15.20mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Black Cap | -20°C ~ 85°C |
|
ET103A32-ZSWITCH TOGGLE SPST 3A 125V |
2,684 |
|
Datasheet |
ET | Bulk | Obsolete | Panel Mount | SPST | 3A (AC) | 125 V | - | On-Off | Standard Round | 17.00mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | - |
|
|
ET103V32-ZSWITCH TOGGLE SPDT 3A 125V |
4,296 |
|
Datasheet |
ET | Bulk | Obsolete | Panel Mount | SPDT | 3A (AC) | 125 V | - | On-On | Standard Round | 17.00mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | - |
|
ET110G-ZSWITCH TOGGLE SPDT 10A 125V |
4,428 |
|
Datasheet |
ET | Bulk | Obsolete | Panel Mount | SPDT | 10A (AC) | 125 V | - | Mom-Off-Mom | Standard Round | 17.00mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | - |
