Trimmers, Variable Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Capacitance Range | Adjustment Type | Dielectric Material | Q @ Freq | Size / Dimension | Voltage - Rated | Height - Seated (Max) | Operating Temperature | Mounting Style | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GWL4R550CAP TRIMMER 0.6-4.5PF 500V TH |
345 |
|
Datasheet |
PISTONCAP® | Bulk | Obsolete | 0.6 ~ 4.5pF | Side | Sapphire | 2000 @ 250MHz | 0.118" Dia (3.00mm) | 500 V | 0.310" (7.90mm) | -55°C ~ 125°C | Through Hole | General Purpose |
|
PPZN6010025 - 600PF, 16 MM TOP ADJUST, 15 |
415 |
|
Datasheet |
FILMTRIM® | Box | Active | 25 ~ 600pF | Top | Polycarbonate (PC) | 150 @ 1MHz | 0.630" Dia (16.00mm) | 150 V | 0.610" (15.49mm) | -40°C ~ 85°C | Through Hole | General Purpose |
|
GEC42000CAP TRIMMER 1-42PF 750V TH |
1,115 |
|
Datasheet |
PISTONCAP® | Bulk | Obsolete | 1 ~ 42pF | Side | Glass | 250 @ 20MHz | 0.312" Dia (7.92mm) | 750 V | 0.843" (21.41mm) | -55°C ~ 125°C | Through Hole | General Purpose |
|
|
AT10-4ECAP TRIMMER 0.8-10PF 250V PNL MT |
2,482 |
|
Datasheet |
A | Bulk | Active | 0.8 ~ 10pF | Top | Polytetrafluoroethylene (PTFE) | 2000 @ 100MHz | 0.300" Dia (7.62mm) | 250 V | 0.980" (24.89mm) | -65°C ~ 125°C | Panel Mount | General Purpose |
|
PC51H160CAP TRIMMER QPL PISTONCAP |
3,797 |
|
Datasheet |
PISTONCAP® | Bulk | Obsolete | - | - | Glass | 800 @ 20MHz | - | - | - | -55°C ~ 125°C | - | - |
|
PC50J5R5CAP TRIMMER QPL PISTONCAP |
4,730 |
|
Datasheet |
PISTONCAP® | Bulk | Obsolete | - | - | Glass | 1000 @ 20MHz | - | - | - | -55°C ~ 125°C | - | - |
|
PC52J5R5CAP TRIMMER 0.8-5.5PF 750V TH |
1,557 |
|
Datasheet |
PISTONCAP® | Bulk | Obsolete | 0.8 ~ 5.5pF | Side | Glass | 1000 @ 20MHz | 0.312" Dia (7.92mm) | 750 V | 0.656" (16.66mm) | -55°C ~ 125°C | Through Hole | Sealed |
|
SGNMNC2106NLCAP TRIM 1-10PF 6000V CHAS MNT |
3,827 |
|
Datasheet |
SGNM-Series 2 | Bulk | Obsolete | 1 ~ 10pF | - | Ceramic | 3000 @ 25MHz | 0.550" Dia (13.97mm) | 6000 V | - | -55°C ~ 125°C | Chassis Mount | Non-Magnetic, Sealed |
|
5451CAP TRIMMER 1-16PF 250V TH |
2,913 |
|
Datasheet |
- | Bulk | Active | 1 ~ 16pF | Side | Air | 3000 @ 100MHz | 0.295" Dia (7.49mm) | 250 V | - | -65°C ~ 125°C | Through Hole | Sealed |
|

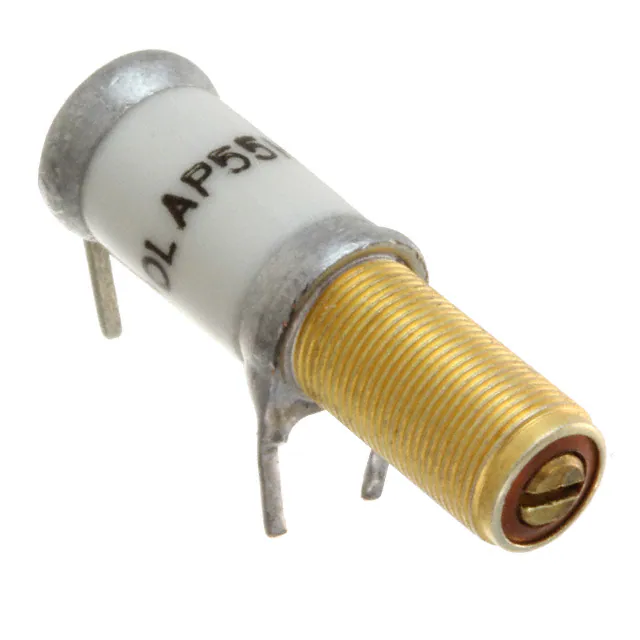

AP55HVCAP TRIMMER 1.5-55PF 600V TH |
3,126 |
|
Datasheet |
A_HV | Bulk | Active | 1.5 ~ 55pF | Side | Polytetrafluoroethylene (PTFE) | 780 @ 100MHz | 0.300" Dia (7.62mm) | 600 V | 1.000" (25.40mm) | -65°C ~ 125°C | Through Hole | General Purpose |
|
NMAM25HVCAP TRIMMER 1-23PF 750V SMD |
4,986 |
|
Datasheet |
A_HV | Bulk | Active | 1 ~ 23pF | Top | Polytetrafluoroethylene (PTFE) | 2000 @ 100MHz | 0.300" Dia (7.62mm) | 750 V | 0.480" (12.19mm) | -65°C ~ 125°C | Surface Mount | Non-Magnetic |
|
NMNT10-12ECAP TRIMMER 2-10PF 6000V PNL MNT |
4,050 |
|
Datasheet |
NT | Bulk | Active | 2 ~ 10pF | Top | Polytetrafluoroethylene (PTFE) | - | 0.550" Dia (13.97mm) | 6000 V | 1.845" (46.86mm) | -65°C ~ 125°C | Panel Mount | Non-Magnetic |
|

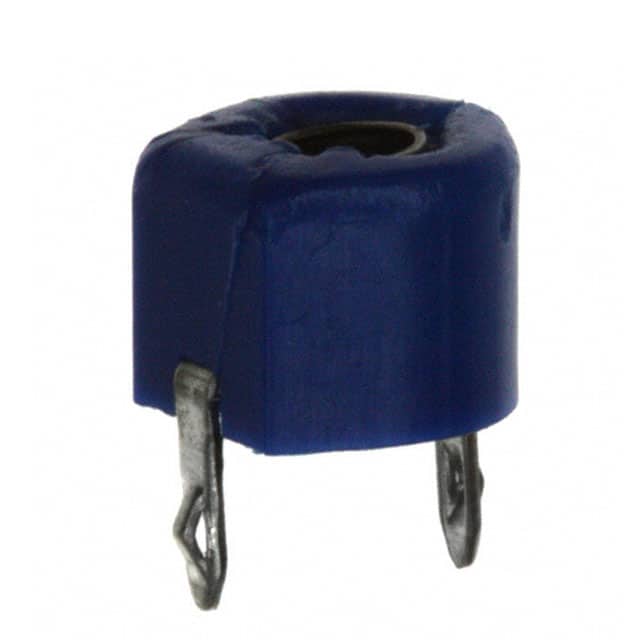

GKG5R015CAP TRIMMER 2-5PF 100V TH |
944 |
|
Datasheet |
SURFTRIM® GKG | Bulk | Active | 2 ~ 5pF | Top | Ceramic | 300 @ 1MHz | 0.236" Dia (6.00mm) | 100 V | 0.197" (5.00mm) | -25°C ~ 85°C | Through Hole | General Purpose |
|
GKG6R086-05CAP TRIM 2-6PF 100V SMD |
1,330 |
|
Datasheet |
SURFTRIM® GKG | Tape & Reel (TR) | Active | 2 ~ 6pF | Top | Ceramic | 500 @ 1MHz | - | 100 V | - | -25°C ~ 85°C | - | General Purpose |
|
BFC280823279CAP TRIMMER 4-27PF 150V TH |
2,308 |
|
Datasheet |
BFC2 808 | Bulk | Active | 4 ~ 27pF | Top and Bottom | Polypropylene (PP) | - | 0.299" Dia (7.60mm) | 150 V | 0.394" (10.00mm) | -40°C ~ 70°C | Through Hole | General Purpose |
|
|
AT55HVCAP TRIMMER 1.5-55PF 600V PNL MT |
4,603 |
|
Datasheet |
A_HV | Bulk | Active | 1.5 ~ 55pF | Top | Polytetrafluoroethylene (PTFE) | 780 @ 100MHz | 0.300" Dia (7.62mm) | 600 V | 0.980" (24.89mm) | -65°C ~ 125°C | Panel Mount | General Purpose |
|
NMA4M5HVCAP TRIMMER 0.6-5PF 500V SMD |
1,387 |
|
Datasheet |
A4_HV | Bulk | Active | 0.6 ~ 5pF | Top | Polytetrafluoroethylene (PTFE) | 2000 @ 100MHz | 0.120" Dia (3.05mm) | 500 V | 0.325" (8.26mm) | -65°C ~ 125°C | Surface Mount | Non-Magnetic |
|
NMKM10HVCAP TRIMMER 1-9PF 1000V SMD |
1,132 |
|
Datasheet |
K_HV | Bulk | Active | 1 ~ 9pF | Top | Polytetrafluoroethylene (PTFE) | 2000 @ 100MHz | 0.230" Dia (5.84mm) | 1000 V | 0.470" (11.94mm) | -65°C ~ 125°C | Surface Mount | Non-Magnetic |
|
|
NMTM120CVARI CAP |
2,711 |
|
Datasheet |
- | Bulk | Active | 2 ~ 120pF | Side | - | 600 @ 100MHz | 0.310" Dia (7.87mm) | 1000 V | 1.760" (44.70mm) | -55°C ~ 125°C | Panel Mount | General Purpose |
|
|
NMNT100-4CAP TRIM 2-95PF 2500V PNL MNT |
4,326 |
|
Datasheet |
NMNT | Bulk | Active | 2 ~ 95pF | Top | Polytetrafluoroethylene (PTFE) | - | 0.310" Dia (7.87mm) | 2500 V | 4.250" (107.95mm) | - | Panel Mount | Non-Magnetic |
