Trimmers, Variable Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Capacitance Range | Adjustment Type | Dielectric Material | Q @ Freq | Size / Dimension | Voltage - Rated | Height - Seated (Max) | Operating Temperature | Mounting Style | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
47273-11R5CAP TRIMMER SMD |
800 |
|
Datasheet |
Giga-Trim® | Tape & Reel (TR) | Active | - | - | Alumina | 3000 @ 250MHz | 0.150" Dia (3.81mm) | - | 0.330" (8.38mm) | -65°C ~ 125°C | Surface Mount | - |
|

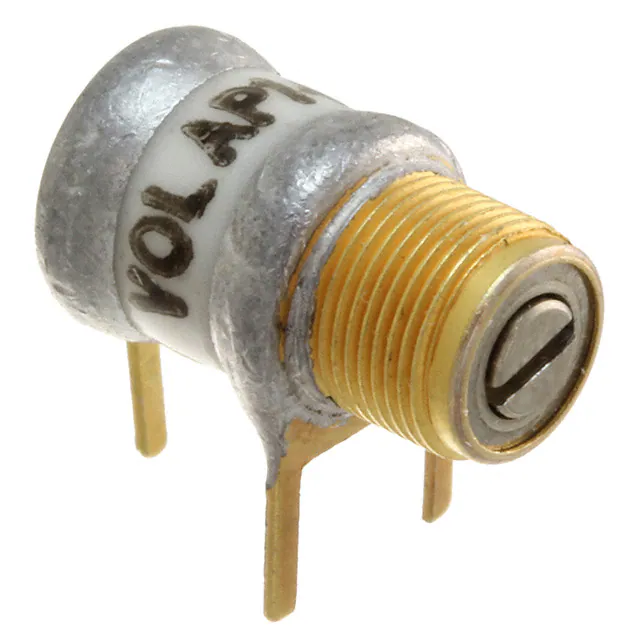

AP14CAP TRIMMER 1-14PF 125V TH |
836 |
|
Datasheet |
A | Bulk | Active | 1 ~ 14pF | Side | Air | 3000 @ 100MHz | 0.300" Dia (7.62mm) | 125 V | 0.500" (12.70mm) | -65°C ~ 125°C | Through Hole | General Purpose |
|
AM25SDCAP TRIMMER 1-23PF 125V SMD |
172 |
|
Datasheet |
- | Bulk | Active | 1 ~ 23pF | Top | Polytetrafluoroethylene (PTFE) | 2000 @ 100MHz | 0.250" Dia (6.35mm) | 125 V | 0.480" (12.19mm) | -65°C ~ 125°C | Surface Mount | General Purpose |
|
AM10HVCAP TRIMMER 1-10PF 1000V SMD |
2,944 |
|
Datasheet |
A_HV | Bulk | Active | 1 ~ 10pF | Top | Polytetrafluoroethylene (PTFE) | 2000 @ 100MHz | 0.300" Dia (7.62mm) | 1000 V | 0.480" (12.19mm) | -65°C ~ 125°C | Surface Mount | General Purpose |
|
AP10HVCAP TRIMMER 1-10PF 1000V TH |
3,324 |
|
Datasheet |
- | Bulk | Active | 1 ~ 10pF | Side | Polytetrafluoroethylene (PTFE) | 2000 @ 100MHz | 0.220" Dia (5.59mm) | 1000 V | 0.500" (12.70mm) | -65°C ~ 125°C | Through Hole | General Purpose |
|

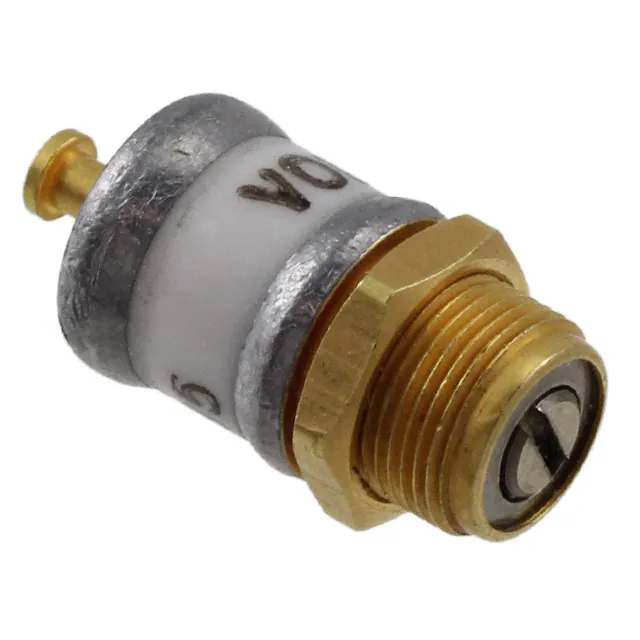

AT15HVCAP TRIMMER 1-16PF 1000V PNL MNT |
1,139 |
|
Datasheet |
- | Bulk | Active | 1 ~ 16pF | Top | Polytetrafluoroethylene (PTFE) | 2000 @ 100MHz | 0.280" Dia (7.11mm) | 1000 V | 0.480" (12.19mm) | -65°C ~ 125°C | Panel Mount | General Purpose |
|
|
BFC280823508CAP TRIMMER 1.5-5PF 150V TH |
292 |
|
Datasheet |
BFC2 808 | Bulk | Active | 1.5 ~ 5pF | Top and Bottom | Polypropylene (PP) | - | 0.299" Dia (7.60mm) | 150 V | 0.394" (10.00mm) | -40°C ~ 70°C | Through Hole | General Purpose |
|
9702-1CAP TRIMMER 1-5PF 250V SMD |
1,197 |
|
Datasheet |
Thin-Trim® | Bulk | Active | 1 ~ 5pF | Top | Ceramic | 1000 @ 100MHz | 0.145" Dia (3.68mm) | 250 V | 0.040" (1.02mm) | -55°C ~ 125°C | Surface Mount | General Purpose |
|
9402-1SL-1CAP TRIMMER 1-5PF 250V SMD |
688 |
|
Datasheet |
Thin-Trim® | Bulk | Active | 1 ~ 5pF | Top | - | 1000 @ 100MHz | 0.141" Dia (3.58mm) | 250 V | 0.040" (1.02mm) | -55°C ~ 125°C | Surface Mount | General Purpose |
|
|
9401-1SL-1CAP TRIMMER 0.5-1.3PF 250V SMD |
442 |
|
Datasheet |
Thin-Trim® | Bulk | Active | 0.5 ~ 1.3pF | Top | - | 1000 @ 100MHz | 0.150" Dia (3.81mm) | 250 V | 0.040" (1.02mm) | -55°C ~ 125°C | Surface Mount | General Purpose |
|
9410-0CAP TRIMMER 1-4.5PF 250V SMD |
238 |
|
Datasheet |
Thin-Trim® | Bulk | Active | 1 ~ 4.5pF | Top | - | 1000 @ 100MHz | 0.225" Dia (5.72mm) | 250 V | 0.060" (1.52mm) | -55°C ~ 125°C | Surface Mount | General Purpose |
|
9812SLCAP TRIMMER 4-18PF 250V SMD |
1,722 |
|
Datasheet |
Seal-Trim® | Bulk | Active | 4 ~ 18pF | Top | - | 700 @ 100MHz | 0.270" Dia (6.86mm) | 250 V | 0.110" (2.79mm) | -55°C ~ 125°C | Surface Mount | Sealed |
|
BFC280905216CAP TRIMMER 1.8-10PF 300V TH |
4,564 |
|
Datasheet |
BFC2 809 | Bulk | Active | 1.8 ~ 10pF | Top and Bottom | - | - | 0.291" L x 0.264" W (7.40mm x 6.70mm) | 300 V | 0.354" (9.00mm) | -40°C ~ 125°C | Through Hole | General Purpose |
|
|
2320-0R1CAP TRIMMER 0.6-2.5PF 250V SMD |
542 |
|
Datasheet |
Cera-Trim® | Tape & Reel (TR) | Active | 0.6 ~ 2.5pF | Top | Ceramic | 3000 @ 100MHz | 0.180" L x 0.167" W (4.57mm x 4.24mm) | 250 V | 0.086" (2.18mm) | -55°C ~ 125°C | Surface Mount | Sealed |
|
9622SLCAP TRIMMER 2.5-10PF 250V SMD |
387 |
|
Datasheet |
Seal-Trim® | Bulk | Active | 2.5 ~ 10pF | Top | - | 1000 @ 100MHz | 0.180" Dia (4.57mm) | 250 V | 0.085" (2.16mm) | -55°C ~ 125°C | Surface Mount | Sealed |
|
27275-3CAP TRIMMER 0.6-4.5PF 500V SMD |
119 |
|
Datasheet |
Giga-Trim® | Bulk | Active | 0.6 ~ 4.5pF | Top | Sapphire | 3000 @ 250MHz | 0.118" Dia (3.00mm) | 500 V | 0.314" (7.98mm) | -65°C ~ 125°C | Surface Mount | General Purpose |
|
5802CAP TRIM 0.35-3.5PF 250V PNL MNT |
115 |
|
Datasheet |
- | Bulk | Active | 0.35 ~ 3.5pF | Top | Air | 1000 @ 100MHz | 0.160" Dia (4.06mm) | 250 V | - | -65°C ~ 125°C | Panel Mount | Sealed |
|
|
BFC280907015CAP TRIMMER 7-100PF 200V TH |
208 |
|
Datasheet |
BFC2 809 | Bulk | Active | 7 ~ 100pF | Top and Bottom | - | - | 0.551" L x 0.453" W (14.00mm x 11.50mm) | 200 V | 0.378" (9.60mm) | -40°C ~ 125°C | Through Hole | General Purpose |
|
|
JR060HVCAP TRIMMER 2-6PF 350V SMD |
960 |
|
Datasheet |
JR | Bulk | Active | 2 ~ 6pF | Top | Ceramic | 500 @ 1MHz | 0.138" L x 0.122" W (3.50mm x 3.10mm) | 350 V | 0.045" (1.15mm) | -40°C ~ 85°C | Surface Mount | General Purpose |
|
|
JR030HVCAP TRIMMER 1.5-3PF 350V SMD |
955 |
|
Datasheet |
JR | Tape & Reel (TR) | Active | 1.5 ~ 3pF | Top | Ceramic | 500 @ 1MHz | 0.138" L x 0.122" W (3.50mm x 3.10mm) | 350 V | 0.045" (1.15mm) | -40°C ~ 85°C | Surface Mount | General Purpose |
