Trimmers, Variable Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Capacitance Range | Adjustment Type | Dielectric Material | Q @ Freq | Size / Dimension | Voltage - Rated | Height - Seated (Max) | Operating Temperature | Mounting Style | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TZY2Z060AC01R00CAP TRIMMER 2.5-6PF 25V SMD |
2,017 |
|
Datasheet |
TZY2 | Tape & Reel (TR) | Obsolete | 2.5 ~ 6pF | Top | Ceramic | 500 @ 1MHz | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 25 V | 0.049" (1.25mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
|
TZY2Z100AC01R00CAP TRIMMER 3-10PF 25V SMD |
4,405 |
|
Datasheet |
TZY2 | Tape & Reel (TR) | Obsolete | 3 ~ 10pF | Top | Ceramic | 500 @ 1MHz | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 25 V | 0.049" (1.25mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
|
TZY2R200AC01R00CAP TRIMMER 4.5-20PF 25V SMD |
2,976 |
|
Datasheet |
TZY2 | Tape & Reel (TR) | Obsolete | 4.5 ~ 20pF | Top | Ceramic | 500 @ 1MHz | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 25 V | 0.049" (1.25mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
|
TZY2Z030AC01R00CAP TRIMMER 1.5-3PF 25V SMD |
4,664 |
|
Datasheet |
TZY2 | Tape & Reel (TR) | Obsolete | 1.5 ~ 3pF | Top | Ceramic | 300 @ 1MHz | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 25 V | 0.049" (1.25mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
|
TZY2Z2R5AC01R00CAP TRIMMER 1-2.5PF 25V SMD |
1,393 |
|
Datasheet |
TZY2 | Tape & Reel (TR) | Obsolete | 1 ~ 2.5pF | Top | Ceramic | 200 @ 200MHz | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 25 V | 0.049" (1.25mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
TZC3P200A110R00CAP TRIMMER 5-20PF 100V SMD |
3,975 |
|
Datasheet |
TZC3 | Tape & Reel (TR) | Obsolete | 5 ~ 20pF | Top | Ceramic | 300 @ 1MHz | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 100 V | 0.067" (1.70mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
TZC3R100A110R00CAP TRIMMER 3-10PF 100V SMD |
2,693 |
|
Datasheet |
TZC3 | Cut Tape (CT) | Obsolete | 3 ~ 10pF | Top | Ceramic | 500 @ 1MHz | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 100 V | 0.067" (1.70mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|

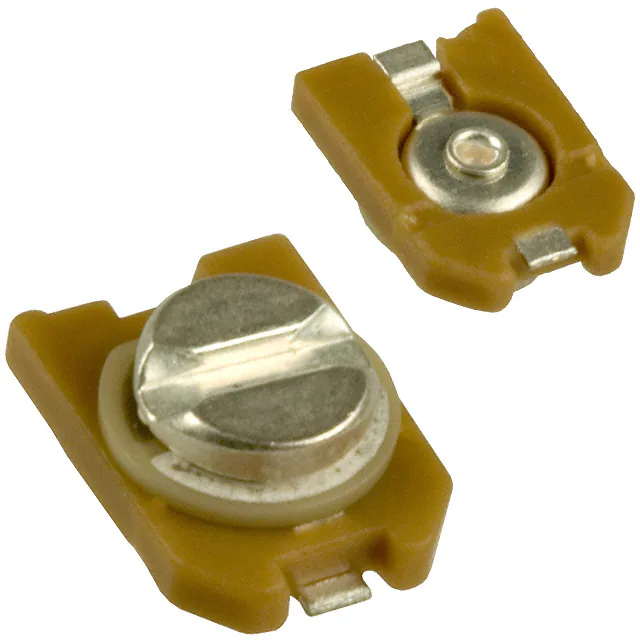

TZC3Z030A110R00CAP TRIMMER 1.4-3PF 100V SMD |
4,544 |
|
Datasheet |
TZC3 | Cut Tape (CT) | Obsolete | 1.4 ~ 3pF | Top | Ceramic | 300 @ 1MHz | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 100 V | 0.067" (1.70mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|

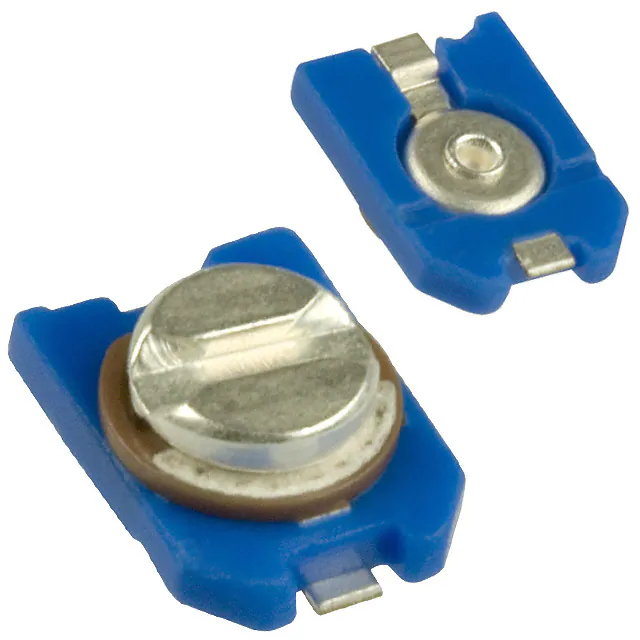

TZC3Z060A110R00CAP TRIMMER 2-6PF 100V SMD |
1,640 |
|
Datasheet |
TZC3 | Tape & Reel (TR) | Obsolete | 2 ~ 6pF | Top | Ceramic | 500 @ 1MHz | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 100 V | 0.067" (1.70mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
|
TZY2K450AC01R00CAP TRIMMER 8-45PF 25V SMD |
1,567 |
|
Datasheet |
TZY2 | Tape & Reel (TR) | Obsolete | 8 ~ 45pF | Top | Ceramic | 300 @ 1MHz | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 25 V | 0.049" (1.25mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|

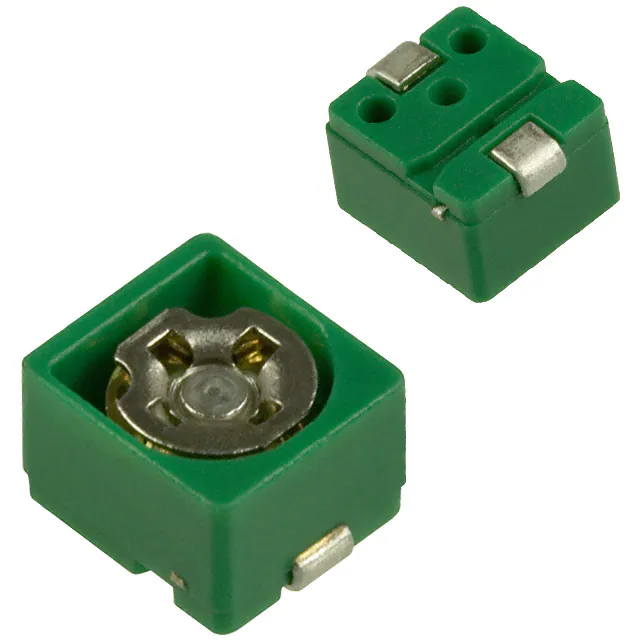

TZB4P300AA10R00CAP TRIMMER 6.5-30PF 100V SMD |
1,917 |
|
Datasheet |
TZB4 | Tape & Reel (TR) | Obsolete | 6.5 ~ 30pF | Top | Ceramic | 300 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 100 V | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
TZB4P400AA10R00CAP TRIMMER 8.5-40PF 100V SMD |
3,885 |
|
Datasheet |
TZB4 | Tape & Reel (TR) | Obsolete | 8.5 ~ 40pF | Top | Ceramic | 300 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 100 V | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|

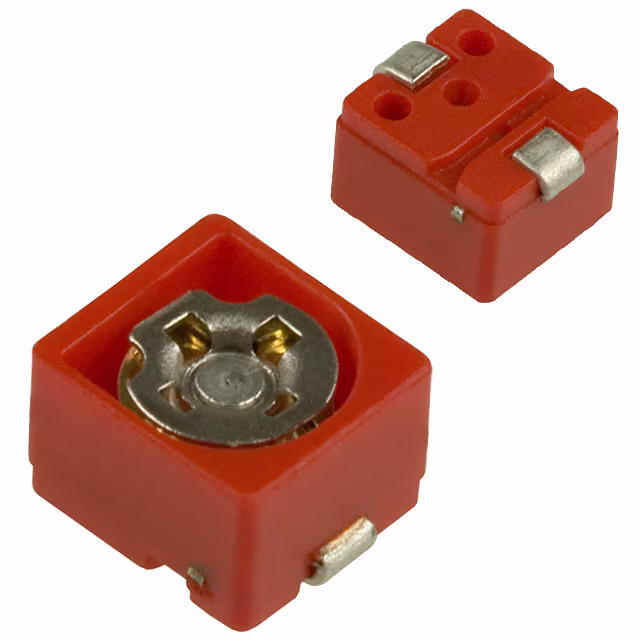

TZB4R200AA10R00CAP TRIMMER 4.5-20PF 100V SMD |
4,672 |
|
Datasheet |
TZB4 | Tape & Reel (TR) | Obsolete | 4.5 ~ 20pF | Top | Ceramic | 500 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 100 V | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|

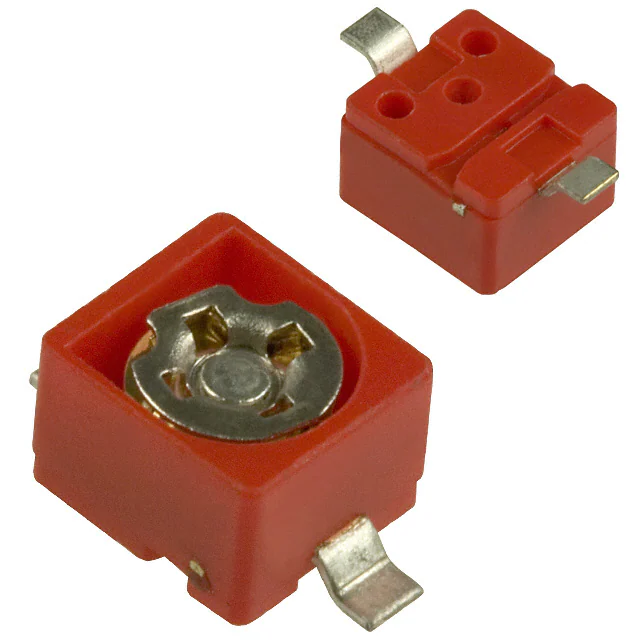

TZB4R200BA10R00CAP TRIMMER 4.5-20PF 100V SMD |
2,708 |
|
Datasheet |
TZB4 | Tape & Reel (TR) | Obsolete | 4.5 ~ 20pF | Top | Ceramic | 500 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 100 V | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|

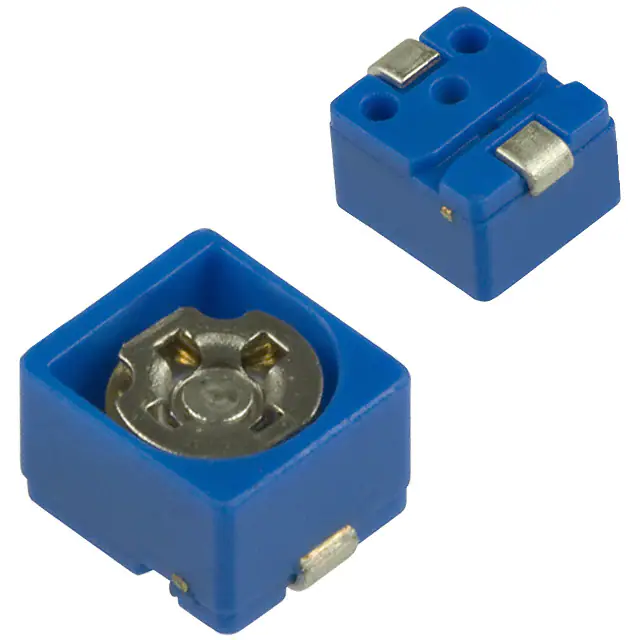

TZB4Z060AA10R00CAP TRIMMER 2-6PF 100V SMD |
2,523 |
|
Datasheet |
TZB4 | Tape & Reel (TR) | Obsolete | 2 ~ 6pF | Top | Ceramic | 500 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 100 V | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|

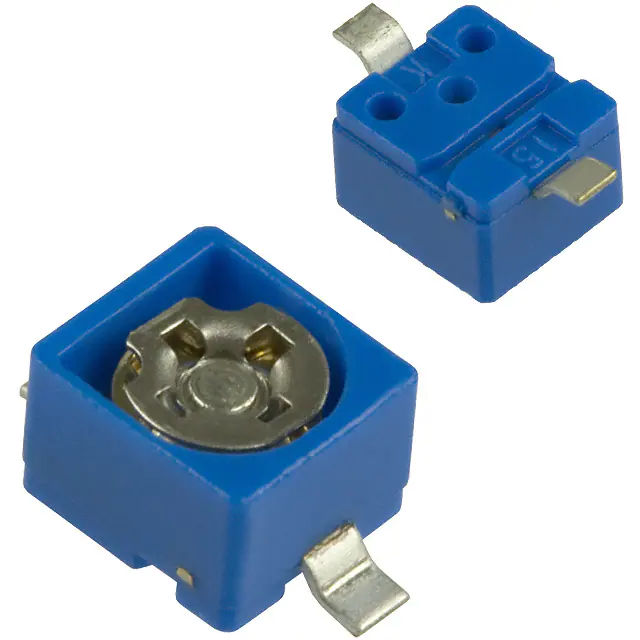

TZB4Z060BA10R00CAP TRIMMER 2-6PF 100V SMD |
3,490 |
|
Datasheet |
TZB4 | Tape & Reel (TR) | Obsolete | 2 ~ 6pF | Top | Ceramic | 500 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 100 V | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
TZB4Z100AA10R00CAP TRIMMER 3-10PF 100V SMD |
4,885 |
|
Datasheet |
TZB4 | Tape & Reel (TR) | Obsolete | 3 ~ 10pF | Top | Ceramic | 500 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 100 V | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
TZC3P300A310R00CAP TRIMMER 6.5-30PF 100V SMD |
4,952 |
|
Datasheet |
TZC3 | Cut Tape (CT) | Obsolete | 6.5 ~ 30pF | Top | Ceramic | 300 @ 1MHz | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 100 V | 0.067" (1.70mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
TZB4P300AB10R00CAP TRIMMER 6.5-30PF 100V SMD |
1,107 |
|
Datasheet |
TZB4 | Tape & Reel (TR) | Obsolete | 6.5 ~ 30pF | Top | Ceramic | 300 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 100 V | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|

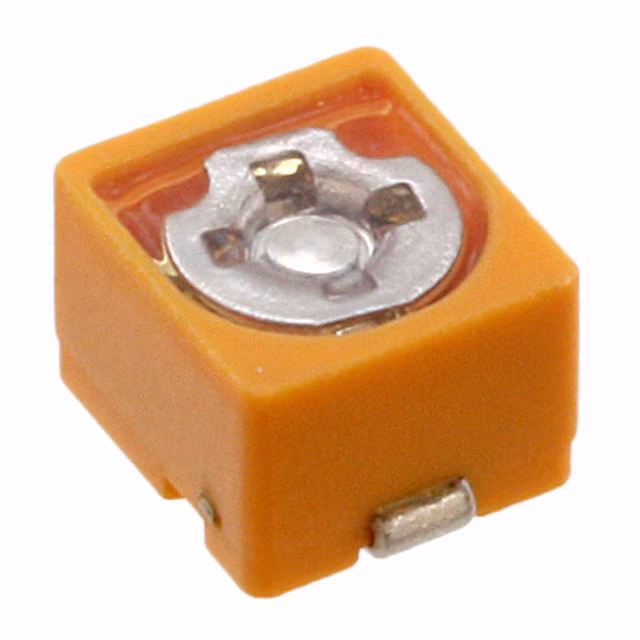

TZB4P400AB10R00CAP TRIMMER 8.5-40PF 100V SMD |
1,681 |
|
Datasheet |
TZB4 | Tape & Reel (TR) | Obsolete | 8.5 ~ 40pF | Top | Ceramic | 300 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 100 V | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
