Trimmers, Variable Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Capacitance Range | Adjustment Type | Dielectric Material | Q @ Freq | Size / Dimension | Voltage - Rated | Height - Seated (Max) | Operating Temperature | Mounting Style | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

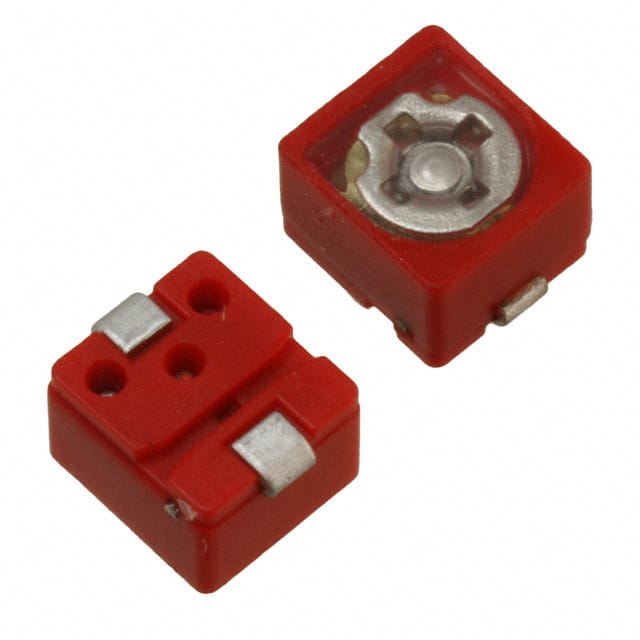

TZB4R200AB10R00CAP TRIMMER 4.5-20PF 100V SMD |
4,086 |
|
Datasheet |
TZB4 | Tape & Reel (TR) | Obsolete | 4.5 ~ 20pF | Top | Ceramic | 500 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 100 V | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
TZB4R200BB10R00CAP TRIMMER 4.5-20PF 100V SMD |
2,384 |
|
Datasheet |
TZB4 | Tape & Reel (TR) | Obsolete | 4.5 ~ 20pF | Top | Ceramic | 500 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 100 V | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
TZB4Z030AB10R00CAP TRIMMER 1.4-3PF 100V SMD |
2,662 |
|
Datasheet |
TZB4 | Tape & Reel (TR) | Obsolete | 1.4 ~ 3pF | Top | Ceramic | 300 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 100 V | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|

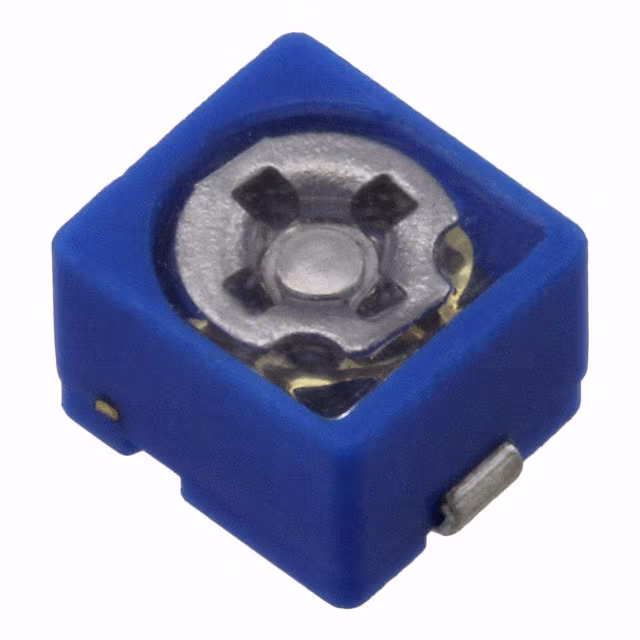

TZB4Z060AB10R00CAP TRIMMER 2-6PF 100V SMD |
1,160 |
|
Datasheet |
TZB4 | Tape & Reel (TR) | Obsolete | 2 ~ 6pF | Top | Ceramic | 500 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 100 V | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
TZB4Z060BB10R00CAP TRIMMER 2-6PF 100V SMD |
4,814 |
|
Datasheet |
TZB4 | Tape & Reel (TR) | Obsolete | 2 ~ 6pF | Top | Ceramic | 500 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 100 V | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
TZB4Z100AB10R00CAP TRIMMER 3-10PF 100V SMD |
3,591 |
|
Datasheet |
TZB4 | Tape & Reel (TR) | Obsolete | 3 ~ 10pF | Top | Ceramic | 500 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 100 V | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
JZL250CAP TRIMMER CERM SMD |
2,513 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - |
|
|
JZL200CAP CER TRIM SMD |
4,791 |
|
Datasheet |
JZ | Bulk | Active | 4.5 ~ 20pF | Top | Ceramic | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 125 V | 0.059" (1.50mm) | -40°C ~ 85°C | Surface Mount | General Purpose |
|
|
JZL100CAP CER TRIM SMD |
3,417 |
|
Datasheet |
JZ | Bulk | Active | 2 ~ 10pF | Top | Ceramic | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 125 V | 0.059" (1.50mm) | -40°C ~ 85°C | Surface Mount | General Purpose |
|
|
JRL250CAP CER TRIM SMD |
1,712 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - |
|
|
JRL100CAP CER TRIM SMD |
1,312 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - |
|
|
JRL200CAP CER TRIM SMD |
4,423 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - |
|

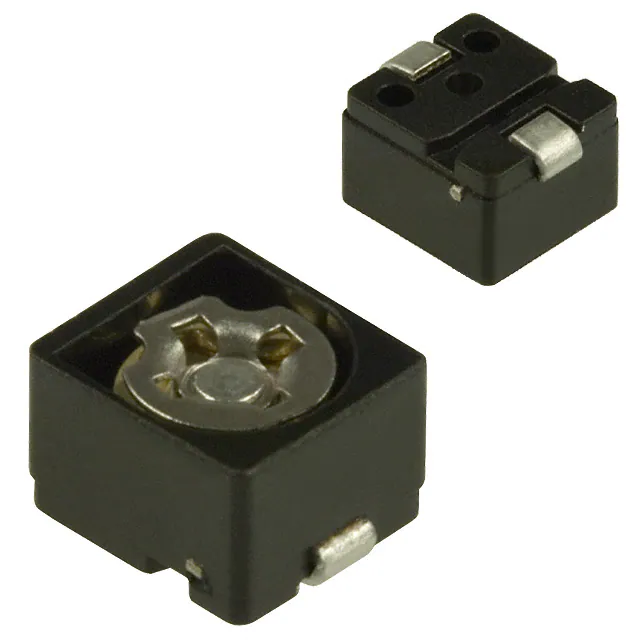

TZB4R500AA10R00CAP TRIMMER 7-50PF 50V SMD |
1,181 |
|
Datasheet |
TZB4 | Tape & Reel (TR) | Obsolete | 7 ~ 50pF | Top | Ceramic | 300 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 50 V | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
TZB4Z250AA10R00CAP TRIMMER 4-25PF 50V SMD |
3,637 |
|
Datasheet |
TZB4 | Tape & Reel (TR) | Obsolete | 4 ~ 25pF | Top | Ceramic | 300 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 50 V | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
|
TZB4Z250AA10R01CAP TRIMMER 4-25PF 50V SMD |
1,641 |
|
Datasheet |
TZB4 | Tape & Reel (TR) | Obsolete | 4 ~ 25pF | Top | Ceramic | 300 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 50 V | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
TZC3P300A110R00CAP TRIMMER 6.5-30PF 100V SMD |
4,294 |
|
Datasheet |
TZC3 | Tape & Reel (TR) | Obsolete | 6.5 ~ 30pF | Top | Ceramic | 300 @ 1MHz | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 100 V | 0.067" (1.70mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
|
TZB4Z250AB10R00CAP TRIMMER 4-25PF 50V SMD |
3,548 |
|
Datasheet |
TZB4 | Tape & Reel (TR) | Obsolete | 4 ~ 25pF | Top | Ceramic | 300 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 50 V | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
|
TZB4R500AB10R00CAP TRIMMER 7-50PF 50V SMD |
3,859 |
|
Datasheet |
TZB4 | Tape & Reel (TR) | Obsolete | 7 ~ 50pF | Top | Ceramic | 300 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 50 V | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
|
BFC280820508CAP TRIMMER 1.5-5PF 150V TH |
3,651 |
|
Datasheet |
BFC2 808 | Bulk | Active | 1.5 ~ 5pF | Top | Polypropylene (PP) | - | 0.299" Dia (7.60mm) | 150 V | 0.394" (10.00mm) | -40°C ~ 70°C | Through Hole | General Purpose |
|
|
BFC280811159CAP TRIMMER 2-15PF 250V TH |
1,677 |
|
Datasheet |
BFC2 808 | Bulk | Active | 2 ~ 15pF | Top and Bottom | Polypropylene (PP) | - | 0.299" Dia (7.60mm) | 250 V | 0.394" (10.00mm) | -40°C ~ 70°C | Through Hole | General Purpose |
