Automotive Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Coil Type | Coil Current | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Style | Operating Temperature | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AZ971E-1A-12DRELAY AUTOMOTIVE SPST 45A 12V |
4,109 |
|
Datasheet |
AZ971E | Box | Active | Non Latching | 133.3 mA | SPST-NO (1 Form A) | 45 A | 75VDC - Max | 12VDC | 6.8 VDC | 0.7 VDC | 5 ms | 3 ms | - | Through Hole | -40°C ~ 125°C | PC Pin |
|
|
AZ971-1A-12DRELAY AUTOMOTIVE SPST 45A 12V |
1,572 |
|
Datasheet |
AZ971 | Box | Active | Non Latching | 133.3 mA | SPST-NO (1 Form A) | 45 A | 75VDC - Max | 12VDC | 8.4 VDC | 0.7 VDC | 5 ms | 3 ms | - | Through Hole | -40°C ~ 125°C | PC Pin |
|
|
AZ9471-1C-24DEARELAY AUTOMOTIVE SPDT 35A 24V |
2,535 |
|
Datasheet |
AZ9471 | Box | Active | Non Latching | 33.3 mA | SPDT (1 Form C) | 35 A | 16VDC - Max | 24VDC | 12.6 VDC | 1.92 VDC | 10 ms | 5 ms | - | Through Hole | -40°C ~ 85°C | PC Pin |
|
|
AZ970-1C-12DRELAY AUTOMOTIVE SPDT 30A 12V |
2,959 |
|
Datasheet |
AZ970 | Box | Active | Non Latching | 133.3 mA | SPDT (1 Form C) | 30 A | 75VDC - Max | 12VDC | 8.4 VDC | 0.7 VDC | 5 ms | 3 ms | - | Through Hole | -40°C ~ 125°C | PC Pin |
|
|
AZ970E-1C-12DRELAY AUTOMOTIVE SPDT 30A 12V |
2,190 |
|
Datasheet |
AZ970E | Box | Active | Non Latching | 133.3 mA | SPDT (1 Form C) | 30 A | 75VDC - Max | 12VDC | 6.8 VDC | 0.7 VDC | 5 ms | 3 ms | - | Through Hole | -40°C ~ 125°C | PC Pin |
|
|
AZ977-1A-12DRELAY AUTOMOTIVE SPST 20A 12V |
1,073 |
|
Datasheet |
AZ977 | Box | Active | Non Latching | 123.7 mA | SPST-NO (1 Form A) | 20 A | 150VDC - Max | 12VDC | 7.2 VDC | 1 VDC | 10 ms | 7 ms | MICRO-ISO | Socketable | -40°C ~ 115°C | Plug In, Quick Connect - Multiple Sizes |
|
A51AE24VDC1.9RELAY AUTOMOTIVE SPST 40A 24V |
1,798 |
|
Datasheet |
A5 | Tray | Active | Non Latching | 79.2 mA | SPST-NO (1 Form A) | 40 A | 380VAC, 75VDC - Max | 24VDC | 16.8 VDC | 2.4 VDC | 5 ms | 3 ms | Sealed - Fully | Through Hole | -40°C ~ 85°C | PC Pin |
|
|
A51AE12VDC1.6URELAY AUTOMOTIVE SPST 40A 12V |
4,768 |
|
Datasheet |
A5 | Tray | Active | Non Latching | 133.3 mA | SPST-NO (1 Form A) | 40 A | 380VAC, 75VDC - Max | 12VDC | 8.4 VDC | 1.2 VDC | 5 ms | 3 ms | Sealed - Fully | Through Hole | -40°C ~ 85°C | PC Pin |
|
|
A51AE12VDC1.9URELAY AUTOMOTIVE SPST 40A 12V |
1,450 |
|
Datasheet |
A5 | Tray | Active | Non Latching | 158.3 mA | SPST-NO (1 Form A) | 40 A | 380VAC, 75VDC - Max | 12VDC | 8.4 VDC | 1.2 VDC | 5 ms | 3 ms | Sealed - Fully | Through Hole | -40°C ~ 85°C | PC Pin |
|
|
A51AS12VDC1.6URELAY AUTOMOTIVE SPST 40A 12V |
3,944 |
|
Datasheet |
A5 | Tray | Active | Non Latching | 133.3 mA | SPST-NO (1 Form A) | 40 A | 380VAC, 75VDC - Max | 12VDC | 8.4 VDC | 1.2 VDC | 5 ms | 3 ms | Sealed - Fully | Through Hole | -40°C ~ 85°C | PC Pin |
|
|
A51AS12VDC1.9URELAY AUTOMOTIVE SPST 40A 12V |
2,370 |
|
Datasheet |
A5 | Tray | Active | Non Latching | 158.3 mA | SPST-NO (1 Form A) | 40 A | 380VAC, 75VDC - Max | 12VDC | 8.4 VDC | 1.2 VDC | 5 ms | 3 ms | Sealed - Fully | Through Hole | -40°C ~ 85°C | PC Pin |
|
|
A51AS24VDC1.9RELAY AUTOMOTIVE SPST 40A 24V |
3,020 |
|
Datasheet |
A5 | Tray | Active | Non Latching | 79.2 mA | SPST-NO (1 Form A) | 40 A | 380VAC, 75VDC - Max | 24VDC | 16.8 VDC | 2.4 VDC | 5 ms | 3 ms | Sealed - Fully | Through Hole | -40°C ~ 85°C | PC Pin |
|
A51CO24VDC1.6URELAY AUTOMOTIVE SPDT 40A 24V |
2,991 |
|
Datasheet |
A5 | Tray | Active | Non Latching | 66.7 mA | SPDT (1 Form C) | 40 A | 380VAC, 75VDC - Max | 24VDC | 16.8 VDC | 2.4 VDC | 5 ms | 3 ms | - | Through Hole | -40°C ~ 85°C | PC Pin |
|
|
A51CO24VDC1.9URELAY AUTOMOTIVE SPDT 40A 24V |
4,896 |
|
Datasheet |
A5 | Tray | Active | Non Latching | 79.2 mA | SPDT (1 Form C) | 40 A | 380VAC, 75VDC - Max | 24VDC | 16.8 VDC | 2.4 VDC | 5 ms | 3 ms | - | Through Hole | -40°C ~ 85°C | PC Pin |
|
|
AZ971E-1A-12DERELAY AUTOMOTIVE SPST 45A 12V |
2,508 |
|
Datasheet |
AZ971E | Box | Active | Non Latching | 133.3 mA | SPST-NO (1 Form A) | 45 A | 75VDC - Max | 12VDC | 6.8 VDC | 0.7 VDC | 5 ms | 3 ms | Sealed - Epoxy | Through Hole | -40°C ~ 125°C | PC Pin |
|
|
AZ971E-1A-24DRELAY AUTOMOTIVE SPST 45A 24V |
4,851 |
|
Datasheet |
AZ971E | Box | Active | Non Latching | 66.3 mA | SPST-NO (1 Form A) | 45 A | 75VDC - Max | 24VDC | 13.9 VDC | 1.44 VDC | 5 ms | 3 ms | - | Through Hole | -40°C ~ 125°C | PC Pin |
|
|
AZ971-1A-12DERELAY AUTOMOTIVE SPST 45A 12V |
3,733 |
|
Datasheet |
AZ971 | Box | Active | Non Latching | 133.3 mA | SPST-NO (1 Form A) | 45 A | 75VDC - Max | 12VDC | 8.4 VDC | 0.7 VDC | 5 ms | 3 ms | Sealed - Epoxy | Through Hole | -40°C ~ 125°C | PC Pin |
|
|
AZ971-1A-24DRELAY AUTOMOTIVE SPST 45A 24V |
3,113 |
|
Datasheet |
AZ971 | Box | Active | Non Latching | 66.3 mA | SPST-NO (1 Form A) | 45 A | 75VDC - Max | 24VDC | 16.8 VDC | 1.44 VDC | 5 ms | 3 ms | - | Through Hole | -40°C ~ 125°C | PC Pin |
|

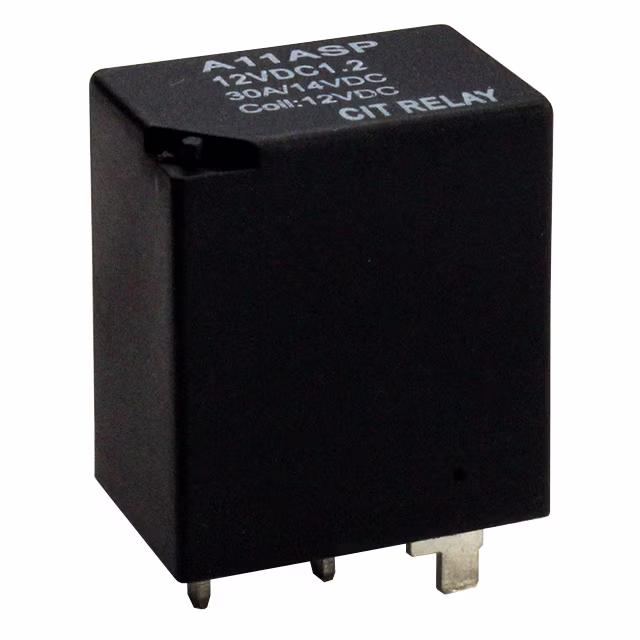

A11ASP12VDC1.2RELAY AUTOMOTIVE SPST 30A 12V |
3,367 |
|
Datasheet |
A1 | Tube | Active | Non Latching | 100 mA | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 12VDC | 8.4 VDC | 1.2 VDC | 10 ms | 7 ms | Sealed - Fully | Through Hole | -40°C ~ 85°C | PC Pin |
|
A1M1ASQ12VDCRELAY AUTOMOTIVE SPST 40A 12V |
2,494 |
|
Datasheet |
A1M | Tube | Active | Non Latching | 125 mA | SPST-NO (1 Form A) | 40 A | 28VDC - Max | 12VDC | 7.2 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Fully | Socketable | -40°C ~ 85°C | Plug In, Quick Connect - Multiple Sizes |
