| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6K 0005ESWITCH DIP 0.025A 24V |
3,619 |
|
Datasheet |
A6K | Box | Active | - | - | 24VDC | - | - | 25mA | - | - | - | - | - | -30°C ~ 80°C | - | - | No |
|
DS01-254-L-01BESWITCH SLIDE DIP SPST 0.025A 24V |
4,264 |
|
Datasheet |
DS01-254 | Tube | Active | SPST | 1 | 24VDC | Slide (Standard) | Raised | 25mA | Copper Alloy | Gold | 0.264" (6.70mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
194-4MSTSWITCH PIANO DIP SPST 0.05A 24V |
2,530 |
|
Datasheet |
194 | Tube | Active | SPST | 4 | 24VDC | Piano | Raised | 50mA | - | Gold | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|

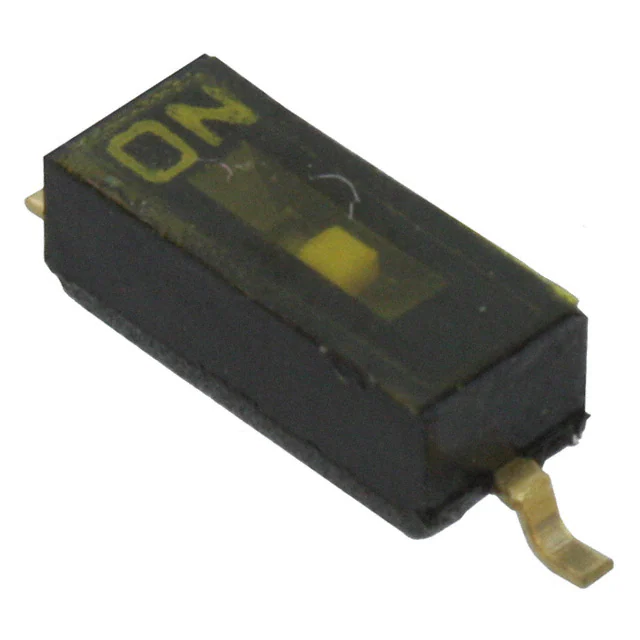

416131160801SWITCH SLIDE DIP SPST 0.025A 24V |
2,861 |
|
Datasheet |
WS-DISV | Tape & Reel (TR) | Active | SPST | 1 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | Gold | 0.098" (2.50mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|

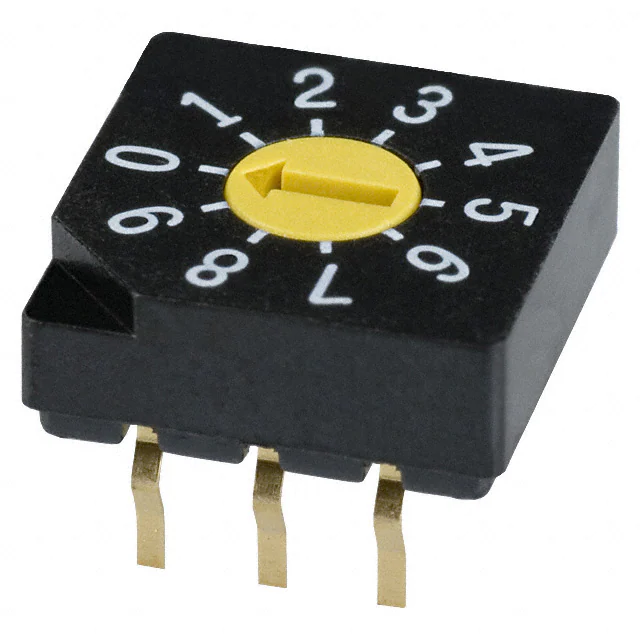

SD-2010SWITCH ROTARY DIP BCD 0.1A 5V |
1,716 |
|
Datasheet |
SD-2000 | Bulk | Active | BCD | 10 | 5VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.154" (3.90mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
MRSSV1DR16SMGWTRSWITCH ROTARY DIP HEX 0.4VA 20V |
2,997 |
|
Datasheet |
MRSS | Tape & Reel (TR) | Active | Hexadecimal | 16 | 20VAC/DC | Rotary for Tool | Flush, Recessed | 0.4VA | Copper Alloy | Gold | 0.122" (3.10mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
A6KS-164RFSWITCH ROTARY DIP HEX 0.025A 24V |
4,838 |
|
Datasheet |
A6KS | Tube | Active | Hexadecimal | 16 | 24VDC | Rotary for Tool | Flush, Recessed | 25mA | - | Gold | 0.118" (3.00mm) | Surface Mount | Gull Wing | -30°C ~ 80°C | 0.050" (1.27mm), Half | - | No |
|
DS01C-254-S-03BESWITCH SLIDE DIP SPST 0.025A 24V |
2,199 |
|
Datasheet |
DS01-254 | Tube | Active | SPST | 3 | 24VDC | Slide (Standard) | Raised | 25mA | Copper Alloy | Gold | 0.264" (6.70mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
DS04-254-2-03BK-SMTSWITCH SLIDE DIP SPST 0.025A 24V |
3,482 |
|
Datasheet |
DS04-254-SMT | Tube | Active | SPST | 3 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.167" (4.25mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
DS01C-254-L-04BESWITCH SLIDE DIP SPST 0.025A 24V |
1,812 |
|
Datasheet |
DS01-254 | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Raised | 25mA | Copper Alloy | Gold | 0.264" (6.70mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
DS04-254-1L-05BKSWITCH SLIDE DIP SPST 0.025A 24V |
1,616 |
|
Datasheet |
DS04-254 | Tube | Active | SPST | 5 | 24VDC | Slide (Standard) | Raised | 25mA | Copper Alloy | Gold | 0.166" (4.21mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
209-3MSSWITCH SLIDE DIP SPST 0.1A 20V |
1,643 |
|
Datasheet |
209 | Tube | Active | SPST | 3 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
DS01C-254-S-08BESWITCH SLIDE DIP SPST 0.025A 24V |
2,367 |
|
Datasheet |
DS01-254 | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Raised | 25mA | Copper Alloy | Gold | 0.264" (6.70mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

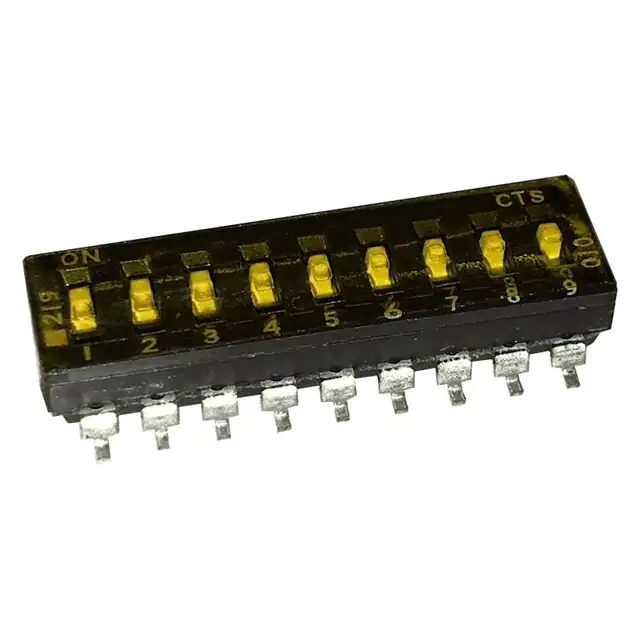

219-9MSTSWITCH SLIDE DIP SPST 0.1A 20V |
1,905 |
|
Datasheet |
219 | Tube | Active | SPST | 9 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
CFS-0101TBSWITCH SLIDE DIP SPST 0.1A 6V |
1,428 |
|
Datasheet |
CFS | Tape & Reel (TR) | Active | SPST | 1 | 6VDC | Slide (Standard) | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
KAE01TGGRSWITCH SLIDE DIP SPST 0.025A 24V |
3,555 |
|
Datasheet |
KAE | Tape & Reel (TR) | Active | SPST | 1 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper | Gold | 0.120" (3.05mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|

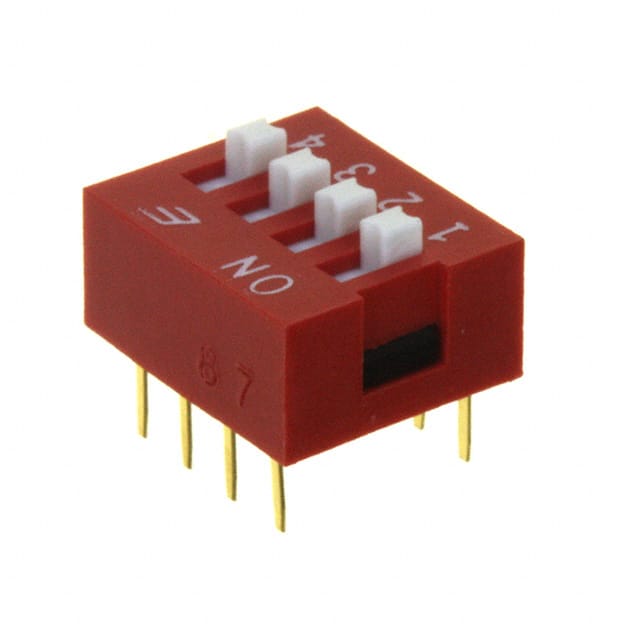

KAS1104ESWITCH SLIDE DIP SPST 0.025A 24V |
1,123 |
|
Datasheet |
KAS | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Raised | 25mA | Phosphor Bronze | Gold | 0.275" (6.99mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

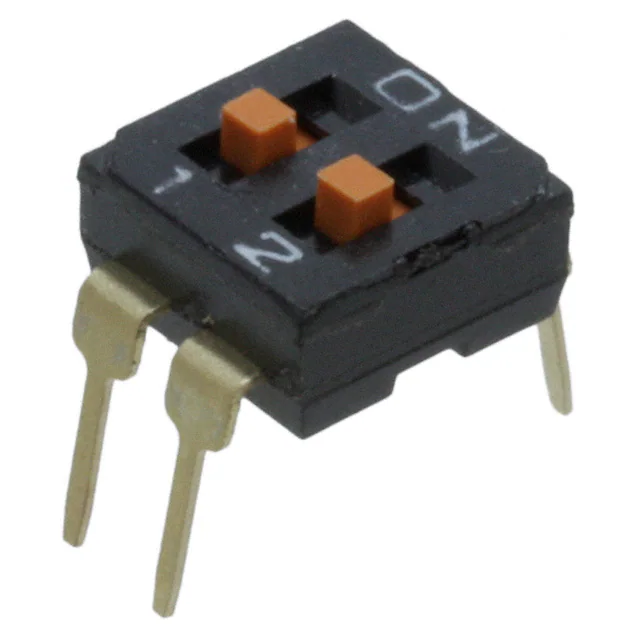

A6T-2104SWITCH SLIDE DIP SPST 0.025A 24V |
4,423 |
|
Datasheet |
A6T | Tube | Active | SPST | 2 | 24VDC | Slide (Standard) | Raised | 25mA | - | - | 0.165" (4.20mm) | Through Hole | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|
A6S-1102-PHSWITCH SLIDE DIP SPST 0.025A 24V |
4,830 |
|
Datasheet |
A6S-H | Tape & Reel (TR) | Active | SPST | 1 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|

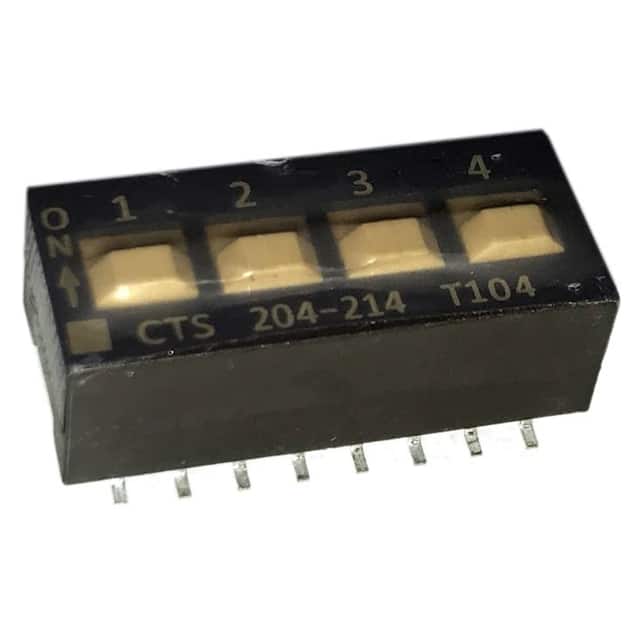

204-214STSWITCH SLIDE DIP DPST 0.05A 24V |
3,977 |
|
Datasheet |
204 | Tube | Active | DPST | 4 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
