| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFS-0401MASWITCH SLIDE DIP SPST 0.1A 6V |
3,244 |
|
Datasheet |
CFS | Tube | Active | SPST | 4 | 6VDC | Slide (Standard) | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.154" (3.90mm) | Surface Mount | J Lead | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
CFS-0300MBSWITCH SLIDE DIP SPST 0.1A 6V |
1,886 |
|
Datasheet |
CFS | Tube | Active | SPST | 3 | 6VDC | Slide (Standard) | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|

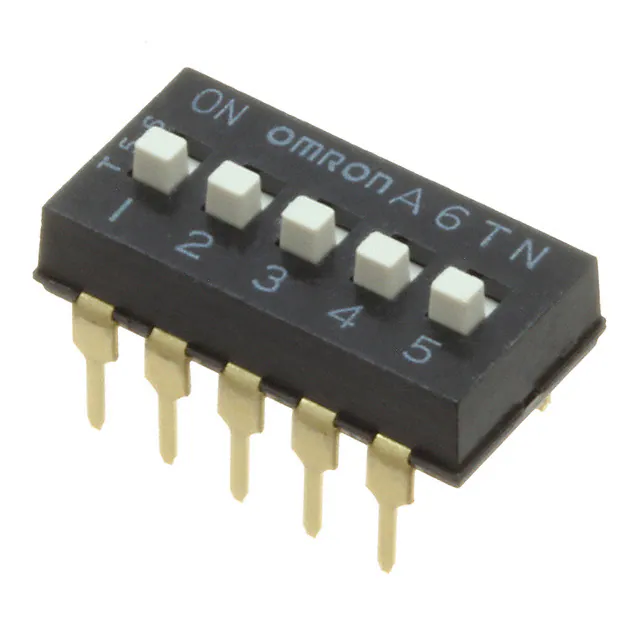

A6TN-5104SWITCH SLIDE DIP SPST 0.025A 24V |
4,266 |
|
Datasheet |
A6TN | Tube | Active | SPST | 5 | 24VDC | Slide (Standard) | Raised | 25mA | - | - | 0.228" (5.80mm) | Through Hole | PC Pin | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
418117170912SWITCH SLIDE DIP SPST 0.025A 24V |
1,509 |
|
Datasheet |
WS-DITV | Tube | Active | SPST | 12 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | Gold | 0.224" (5.70mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

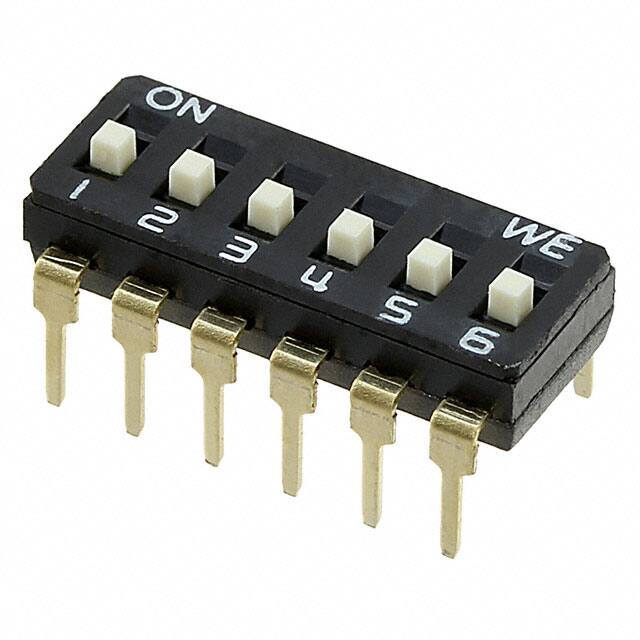

418127270906SWITCH SLIDE DIP SPST 0.025A 24V |
3,552 |
|
Datasheet |
WS-DITV | Tube | Active | SPST | 6 | 24VDC | Slide (Standard) | Raised | 25mA | - | Gold | 0.173" (4.40mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
A6T-6102SWITCH SLIDE DIP SPST 0.025A 24V |
2,674 |
|
Datasheet |
A6T | Tray | Active | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | - | 0.142" (3.60mm) | Through Hole | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
A6T-3102SWITCH SLIDE DIP SPST 0.025A 24V |
3,354 |
|
Datasheet |
A6T | Tube | Active | SPST | 3 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | - | 0.142" (3.60mm) | Through Hole | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
418127160908SWITCH SLIDE DIP SPST 0.025A 24V |
1,616 |
|
Datasheet |
WS-DITV | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | Gold | 0.146" (3.70mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
1825006-3SWITCH SLIDE DIP SPST 0.025A 24V |
1,028 |
|
Datasheet |
GDS | Tube | Active | SPST | 2 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.114" (2.90mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
SD04H1BSWITCH SLIDE DIP SPST 0.1A 25V |
3,570 |
|
Datasheet |
SD | Tube | Active | SPST | 4 | 25VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.178" (4.52mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
CFS-0801MCSWITCH SLIDE DIP SPST 0.1A 6V |
4,830 |
|
Datasheet |
CFS | Tube | Active | SPST | 8 | 6VDC | Slide (Standard) | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.177" (4.50mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
RDS-10S-7229-S-DSWITCH ROTARY DIP BCD 0.1A 50V |
4,442 |
|
Datasheet |
RDS-7229-D | Tube | Active | BCD | 10 | 50VDC | Rotary with Shaft | Raised | 100mA | Copper Alloy | Gold | 0.232" (5.90mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | IP67 - Dust Tight, Waterproof | No |
|
RDS-4S-7229-A-SMTSWITCH ROTARY DIP BCD 0.1A 50V |
3,623 |
|
Datasheet |
RDS-7229-SMT | Tube | Active | BCD | 4 | 50VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.118" (3.00mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | IP67 - Dust Tight, Waterproof | No |
|
RDS-10S-74385-SMT-TRSWITCH ROTARY DIP BCD 0.1A 42V |
2,718 |
|
Datasheet |
RDS-74385-SMT | Tape & Reel (TR) | Active | BCD | 10 | 42VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.152" (3.85mm) | Surface Mount | Gull Wing | -60°C ~ 125°C | 0.100" (2.54mm), Full | IP67 - Dust Tight, Waterproof | No |
|
418117270912SWITCH SLIDE DIP SPST 0.025A 24V |
3,880 |
|
Datasheet |
WS-DITV | Tube | Active | SPST | 12 | 24VDC | Slide (Standard) | Raised | 25mA | - | Gold | 0.189" (4.80mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
A6RS-162RS-PSWITCH ROTARY DIP HEX 0.025A 24V |
3,267 |
|
Datasheet |
A6RS | Tape & Reel (TR) | Active | Hexadecimal | 16 | 24VDC | Rotary with Shaft | Raised | 25mA | - | - | 0.472" (12.00mm) | Surface Mount | Gull Wing | -25°C ~ 80°C | 0.100" (2.54mm), Full | - | No |
|
A6D-3100SWITCH SLIDE DIP SPST 0.03A 30V |
3,182 |
|
Datasheet |
A6D | Tube | Active | SPST | 3 | 30VDC | Slide (Standard) | Flush, Recessed | 30mA | - | Gold | 0.173" (4.40mm) | Through Hole | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | IP64 - Dust Tight, Water Resistant | Yes |
|
A6S-6101-HSWITCH SLIDE DIP SPST 0.025A 24V |
4,386 |
|
Datasheet |
A6S-H | Tube | Active | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|
A6T-0101SWITCH SLIDE DIP SPST 0.025A 24V |
3,851 |
|
Datasheet |
A6T | Tray | Active | SPST | 10 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | - | 0.142" (3.60mm) | Through Hole | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|
76RSB02TSWITCH ROCKER DIP SPST 0.15A 30V |
3,729 |
|
Datasheet |
76 | Tube | Active | SPST | 2 | 30VDC | Rocker | Flush, Recessed | 150mA | Copper Alloy | Gold | 0.292" (7.41mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
