| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6T-0104SWITCH SLIDE DIP SPST 0.025A 24V |
1,727 |
|
Datasheet |
A6T | Tube | Active | SPST | 10 | 24VDC | Slide (Standard) | Raised | 25mA | - | - | 0.165" (4.20mm) | Through Hole | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|
A6D-3103SWITCH SLIDE DIP SPST 0.03A 30V |
1,107 |
|
Datasheet |
A6D | Tube | Active | SPST | 3 | 30VDC | Slide (Standard) | Raised | 30mA | - | Gold | 0.213" (5.40mm) | Through Hole | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | IP64 - Dust Tight, Water Resistant | Yes |
|
90B08SLTSWITCH SLIDE DIP SPST 0.025A 24V |
1,798 |
|
Datasheet |
90B | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.195" (4.95mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Position Identification Line, Tape Seal | Yes |
|
A6DR-2100SWITCH PIANO DIP SPST 0.03A 30V |
2,993 |
|
Datasheet |
A6DR | Bulk | Active | SPST | 2 | 30VDC | Piano | Raised | 30mA | - | Gold | 0.292" (7.41mm) | Through Hole, Right Angle | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | IP64 - Dust Tight, Water Resistant | Yes |
|
JS0308PP4SWITCH PIANO DIP SPST 0.025A 24V |
1,120 |
|
Datasheet |
JS | Bulk | Active | SPST | 8 | 24VDC | Piano | Raised | 25mA | Phosphor Bronze | Gold | 0.362" (9.20mm) | Through Hole, Right Angle | PC Pin | -25°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|
A6S-9101-HSWITCH SLIDE DIP SPST 0.025A 24V |
2,837 |
|
Datasheet |
A6S-H | Tube | Active | SPST | 9 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|

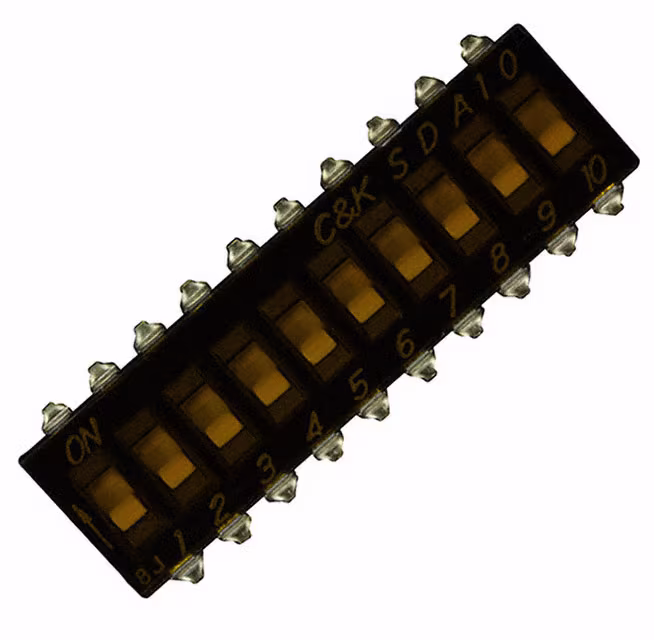

SDA10H0SBSWITCH SLIDE DIP SPST 0.025A 24V |
4,659 |
|
Datasheet |
SDA | Tube | Active | SPST | 10 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
428521420910SWITCH ROTARY DIP BCD 0.15A 24V |
4,056 |
|
Datasheet |
WS-ROSV | Tube | Active | BCD | 10 | 24VDC | Rotary with Shaft | Raised | 150mA | - | Gold | 0.555" (14.10mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | IP67 - Dust Tight, Waterproof | Yes |
|
428521420916SWITCH ROTARY DIP HEX 0.15A 24V |
2,641 |
|
Datasheet |
WS-ROSV | Tube | Active | Hexadecimal | 16 | 24VDC | Rotary with Shaft | Raised | 150mA | - | Gold | 0.555" (14.10mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | IP67 - Dust Tight, Waterproof | Yes |
|
418217270910ASWITCH SLIDE DIP SPST 0.025A 24V |
2,804 |
|
Datasheet |
WS-DITU | Tube | Active | SPST | 10 | 24VDC | Slide (Standard) | Raised | 25mA | Copper Alloy | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
A6E-8104-NSWITCH SLIDE DIP SPST 0.025A 24V |
3,602 |
|
Datasheet |
A6E-N | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Raised | 25mA | - | Gold | 0.277" (7.05mm) | Through Hole | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|
A6E-7101-NSWITCH SLIDE DIP SPST 0.025A 24V |
2,341 |
|
Datasheet |
A6E-N | Tube | Active | SPST | 7 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | Gold | 0.230" (5.85mm) | Through Hole | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|
A6HR-6104SWITCH PIANO DIP SPST 0.025A 24V |
2,060 |
|
Datasheet |
A6HR | Tube | Active | SPST | 6 | 24VDC | Piano | Raised | 25mA | - | Gold | 0.165" (4.20mm) | Surface Mount, Right Angle | Gull Wing | -30°C ~ 85°C | 0.050" (1.27mm), Half | - | No |
|
A6E-8101-NSWITCH SLIDE DIP SPST 0.025A 24V |
1,862 |
|
Datasheet |
A6E-N | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | Gold | 0.230" (5.85mm) | Through Hole | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|
FR02FC10P-SSW ROTARY DIP BCD COMP 0.1A 5V |
3,227 |
|
Datasheet |
FR02 | Tube | Active | BCD Complement | 10 | 5VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.154" (3.90mm) | Surface Mount | Gull Wing | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

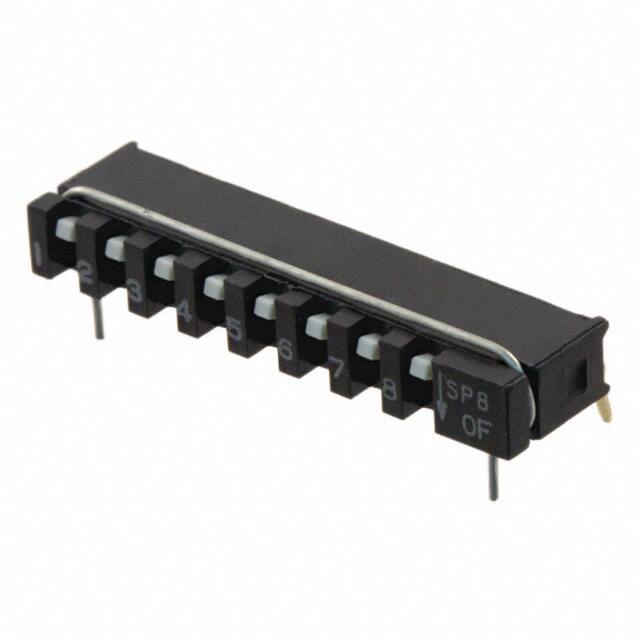

SPA08ABSWITCH SLIDE DIP SPST 0.01A 20V |
3,668 |
|
Datasheet |
SPA | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Flush, Recessed | 10mA | Beryllium Copper | Gold | 0.169" (4.30mm) | Through Hole, Right Angle | PC Pin | -30°C ~ 60°C | 0.100" (2.54mm), Full | - | Yes |
|
78H02TSWITCH SLIDE DIP 4PST 0.15A 30V |
3,212 |
|
Datasheet |
78 | Tube | Active | 4PST | 2 | 30VDC | Slide (Standard) | Raised | 150mA | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
78H02STSWITCH SLIDE DIP 4PST 0.15A 30V |
1,382 |
|
Datasheet |
78 | Tube | Active | 4PST | 2 | 30VDC | Slide (Standard) | Raised | 150mA | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
A6KV-162RSSWITCH ROTARY DIP HEX 0.025A 24V |
4,273 |
|
Datasheet |
A6K | Tube | Active | Hexadecimal | 16 | 24VDC | Rotary with Shaft | Raised | 25mA | - | Gold | 0.303" (7.70mm) | Through Hole, Right Angle | PC Pin | -30°C ~ 80°C | 0.100" (2.54mm), Full | - | No |
|
94HCB16WTSWITCH ROTARY DIP HEX 0.1A 50V |
2,670 |
|
Datasheet |
94H | Tube | Active | Hexadecimal | 16 | 50VDC | Rotary with Shaft | Raised | 100mA | Copper Alloy | Gold | 0.225" (5.72mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Sealed | Yes |
