| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EDS10SGRSTU04QSWITCH SLIDE DIP SPST 0.025A 24V |
2,265 |
|
Datasheet |
EDS | Tube | Active | SPST | 10 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.134" (3.40mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
A6SN-5101SWITCH SLIDE DIP SPST 0.025A 24V |
3,344 |
|
Datasheet |
A6SN | Tube | Active | SPST | 5 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | - | 0.175" (4.45mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
A6SN-7102-PSWITCH SLIDE DIP SPST 0.025A 24V |
1,624 |
|
Datasheet |
A6SN | Tape & Reel (TR) | Active | SPST | 7 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | - | 0.175" (4.45mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
SD12H0SBSWITCH SLIDE DIP SPST 0.1A 25V |
3,394 |
|
Datasheet |
SD | Tube | Active | SPST | 12 | 25VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
|
A6SN-7101-PSWITCH SLIDE DIP SPST 0.025A 24V |
2,736 |
|
Datasheet |
A6SN | Tape & Reel (TR) | Active | SPST | 7 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | - | 0.175" (4.45mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
SDA12H0SBSWITCH SLIDE DIP SPST 0.025A 24V |
3,619 |
|
Datasheet |
SDA | Tube | Active | SPST | 12 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
EDSP06SGRNNTU04SWITCH PIANO DIP SPST 0.025A 24V |
3,934 |
|
Datasheet |
EDSP | Tube | Active | SPST | 6 | 24VDC | Piano | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
RD07A16RVBTSWITCH ROTARY DIP HEX 0.1A 50V |
3,096 |
|
Datasheet |
RD07 | Tube | Active | Hexadecimal | 16 | 50VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.291" (7.40mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
429427520917SW ROTARY DIP HEX COMP 0.15A 24V |
4,262 |
|
Datasheet |
WS-ROTU | Tube | Active | Hexadecimal Complement | 16 | 24VDC | Rotary for Tool | Flush, Recessed | 150mA | - | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
EDSP10SGLNNTU04SWITCH PIANO DIP SPST 0.025A 24V |
3,049 |
|
Datasheet |
EDSP | Tube | Active | SPST | 10 | 24VDC | Piano | Raised | 25mA | Copper Alloy | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
A6RS-102RSSWITCH ROTARY DIP BCD 0.025A 24V |
4,302 |
|
Datasheet |
A6RS | Tube | Active | BCD | 10 | 24VDC | Rotary with Shaft | Raised | 25mA | - | - | 0.472" (12.00mm) | Surface Mount | Gull Wing | -25°C ~ 80°C | 0.100" (2.54mm), Full | - | No |
|
SMR7010C-1SWITCH ROTARY DIP BCD 0.03A 15V |
2,653 |
|
Datasheet |
SMR | Tube | Active | BCD | 10 | 15VDC | Rotary for Tool | Flush, Recessed | 30mA | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
428427520916SWITCH ROTARY DIP HEX 0.15A 24V |
1,856 |
|
Datasheet |
WS-ROTU | Tube | Active | Hexadecimal | 16 | 24VDC | Rotary for Tool | Flush, Recessed | 150mA | - | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|

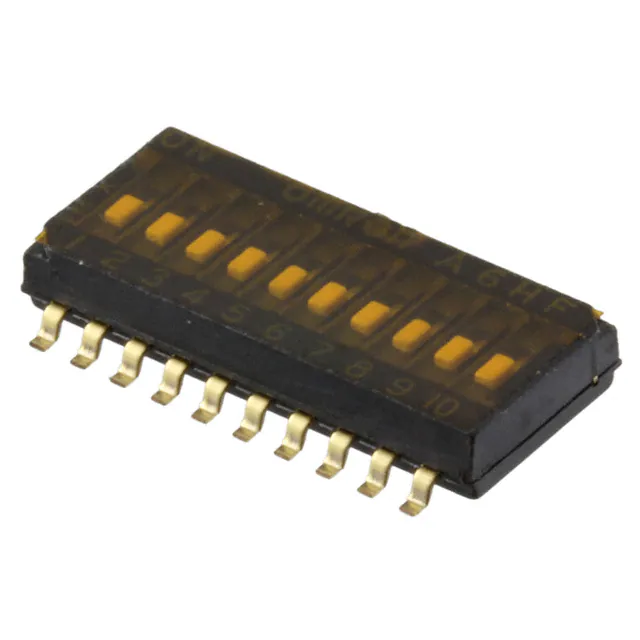

A6HF-0102SWITCH SLIDE DIP SPST 0.025A 24V |
2,814 |
|
Datasheet |
A6HF | Tube | Active | SPST | 10 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|
428527520917SW ROTARY DIP HEX COMP 0.15A 24V |
3,995 |
|
Datasheet |
WS-ROTV | Tube | Active | Hexadecimal Complement | 16 | 24VDC | Rotary for Tool | Flush, Recessed | 150mA | - | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | IP67 - Dust Tight, Waterproof | Yes |
|
FR02KC10P-RSW ROTARY DIP BCD COMP 0.1A 5V |
3,222 |
|
Datasheet |
FR02 | Tape & Reel (TR) | Active | BCD Complement | 10 | 5VDC | Rotary with Shaft | Raised | 100mA | Copper Alloy | Gold | 0.430" (10.92mm) | Surface Mount | Gull Wing | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

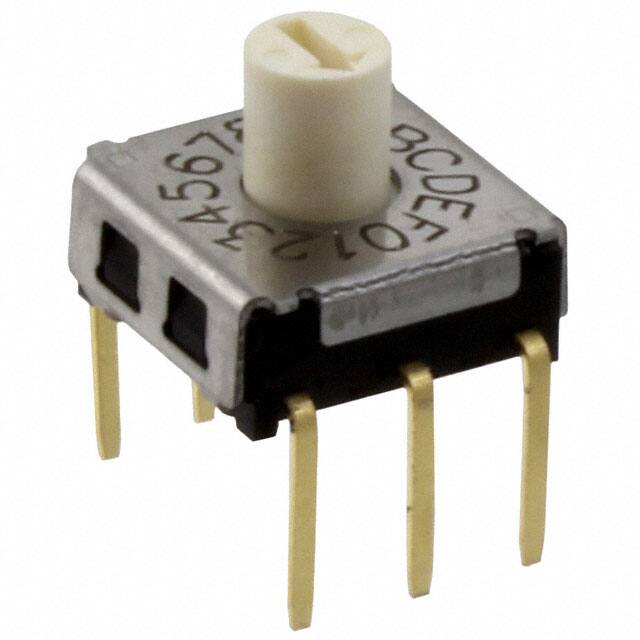

A6K-162RSSWITCH ROTARY DIP HEX 0.025A 24V |
2,202 |
|
Datasheet |
A6K | Tube | Active | Hexadecimal | 16 | 24VDC | Rotary with Shaft | Raised | 25mA | - | Gold | 0.236" (6.00mm) | Through Hole | PC Pin | -30°C ~ 80°C | 0.100" (2.54mm), Full | - | No |
|
A6HR-0104-PMSWITCH PIANO DIP SPST 0.025A 24V |
4,345 |
|
Datasheet |
A6HR | Tape & Reel (TR) | Active | SPST | 10 | 24VDC | Piano | Raised | 25mA | - | Gold | 0.165" (4.20mm) | Surface Mount, Right Angle | Gull Wing | -30°C ~ 85°C | 0.050" (1.27mm), Half | - | No |
|
A6A-10CFSW ROTARY DIP BCD COMP 0.1A 28V |
1,200 |
|
Datasheet |
A6A | Tray | Active | BCD Complement | 10 | 28VDC | Rotary for Tool | Flush, Recessed | 100mA | - | - | 0.244" (6.20mm) | Through Hole | PC Pin | -10°C ~ 70°C | 0.100" (2.54mm), Full | IP64 - Dust Tight, Water Resistant | Yes |
|
CRD16RM0SBRSWITCH ROTARY DIP HEX 0.4VA 20V |
2,121 |
|
Datasheet |
CRD | Tape & Reel (TR) | Active | Hexadecimal | 16 | 20VAC/DC | Rotary for Tool | Flush, Recessed | 0.4VA | Beryllium Copper | Gold | 0.271" (6.88mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | Process Sealed | Yes |
