| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
209-5ESFSWITCH SLIDE DIP SPST 0.1A 20V |
3,514 |
|
Datasheet |
209 | Tube | Active | SPST | 5 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
209-5ESFDSWITCH SLIDE DIP SPST 0.1A 20V |
2,301 |
|
Datasheet |
209 | Tube | Active | SPST | 5 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
209-5LPSSWITCH SLIDE DIP SPST 0.1A 20V |
3,965 |
|
Datasheet |
209 | Tube | Active | SPST | 5 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
209-5LPSDSWITCH SLIDE DIP SPST 0.1A 20V |
3,919 |
|
Datasheet |
209 | Tube | Active | SPST | 5 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
209-5LPSFSWITCH SLIDE DIP SPST 0.1A 20V |
2,703 |
|
Datasheet |
209 | Tube | Active | SPST | 5 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
209-5LPSFDSWITCH SLIDE DIP SPST 0.1A 20V |
4,759 |
|
Datasheet |
209 | Tube | Active | SPST | 5 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
209-5MSDSWITCH SLIDE DIP SPST 0.1A 20V |
2,686 |
|
Datasheet |
209 | Tube | Active | SPST | 5 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
209-5MSFSWITCH SLIDE DIP SPST 0.1A 20V |
2,151 |
|
Datasheet |
209 | Tube | Active | SPST | 5 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|

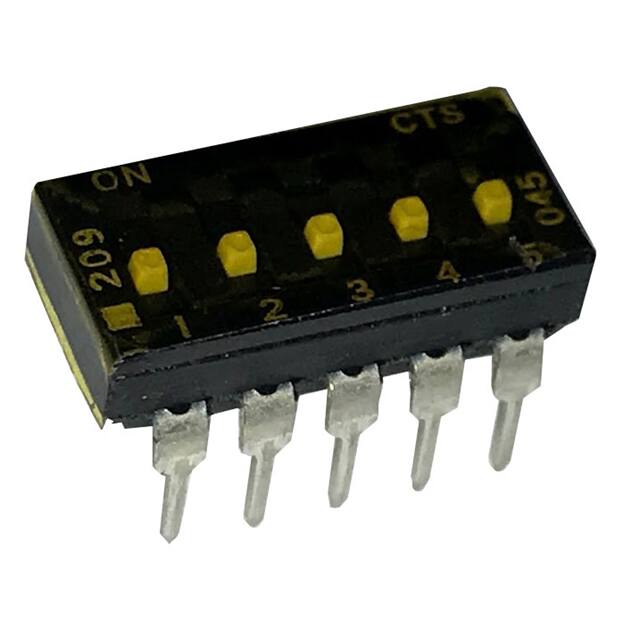

209-5MSFDSWITCH SLIDE DIP SPST 0.1A 20V |
1,699 |
|
Datasheet |
209 | Tube | Active | SPST | 5 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-2LPSTJRSWITCH SLIDE DIP SPST 0.1A 20V |
1,045 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 2 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
219-2LPSTJRFSWITCH SLIDE DIP SPST 0.1A 20V |
3,125 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 2 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
219-2MSTJRSWITCH SLIDE DIP SPST 0.1A 20V |
3,491 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 2 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
219-2MSTJRFSWITCH SLIDE DIP SPST 0.1A 20V |
3,083 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 2 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
DS01-254-S-06BESWITCH SLIDE DIP SPST 0.025A 24V |
3,939 |
|
Datasheet |
DS01-254 | Tube | Active | SPST | 6 | 24VDC | Slide (Standard) | Raised | 25mA | Copper Alloy | Gold | 0.264" (6.70mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
1-1825059-4SWITCH STANDARD DIP SPST |
1,448 |
|
Datasheet |
ADF | Tape & Reel (TR) | Active | SPST | 4 | - | Standard | Flush, Recessed | - | - | - | - | Surface Mount | - | - | - | - | Yes |
|
|
208-5SSWITCH SLIDE DIP SPST 0.05A 24V |
2,425 |
|
Datasheet |
208 | Tube | Active | SPST | 5 | 24VDC | Slide (Standard) | Raised | 50mA | - | Tin | 0.334" (8.48mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
DS04-254-2-05BK-SMT-TRSWITCH SLIDE DIP SPST 0.025A 24V |
2,780 |
|
Datasheet |
DS04-254-SMT | Tape & Reel (TR) | Active | SPST | 5 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.167" (4.25mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
219-3LPSTJSWITCH SLIDE DIP SPST 0.1A 20V |
1,624 |
|
Datasheet |
219 | Tube | Active | SPST | 3 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
219-3LPSTJFSWITCH SLIDE DIP SPST 0.1A 20V |
2,780 |
|
Datasheet |
219 | Tube | Active | SPST | 3 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
219-3MSTJSWITCH SLIDE DIP SPST 0.1A 20V |
4,032 |
|
Datasheet |
219 | Tube | Active | SPST | 3 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
