| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
219-3MSTJFSWITCH SLIDE DIP SPST 0.1A 20V |
2,818 |
|
Datasheet |
219 | Tube | Active | SPST | 3 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
QFPT06LDIP SWITCHES / SIP SWITCHES |
4,995 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
195-4MSSWITCH PIANO DIP SPST 0.05A 24V |
3,524 |
|
Datasheet |
195 | Tube | Active | SPST | 4 | 24VDC | Piano | Raised | 50mA | - | Tin | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
195-4MSNSWITCH PIANO DIP SPST 0.05A 24V |
1,632 |
|
Datasheet |
195 | Tube | Active | SPST | 4 | 24VDC | Piano | Raised | 50mA | - | Tin | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
210-8LPSTSWITCH SLIDE DIP SPST 0.1A 20V |
4,589 |
|
Datasheet |
210 | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
210-8MSTSWITCH SLIDE DIP SPST 0.1A 20V |
1,048 |
|
Datasheet |
210 | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
210-8LPSTFSWITCH SLIDE DIP SPST 0.1A 20V |
2,474 |
|
Datasheet |
210 | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
210-8MSTFSWITCH SLIDE DIP SPST 0.1A 20V |
4,229 |
|
Datasheet |
210 | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
210-8LPSTDSWITCH SLIDE DIP SPST 0.1A 20V |
4,723 |
|
Datasheet |
210 | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
210-8MSTDSWITCH SLIDE DIP SPST 0.1A 20V |
1,930 |
|
Datasheet |
210 | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|

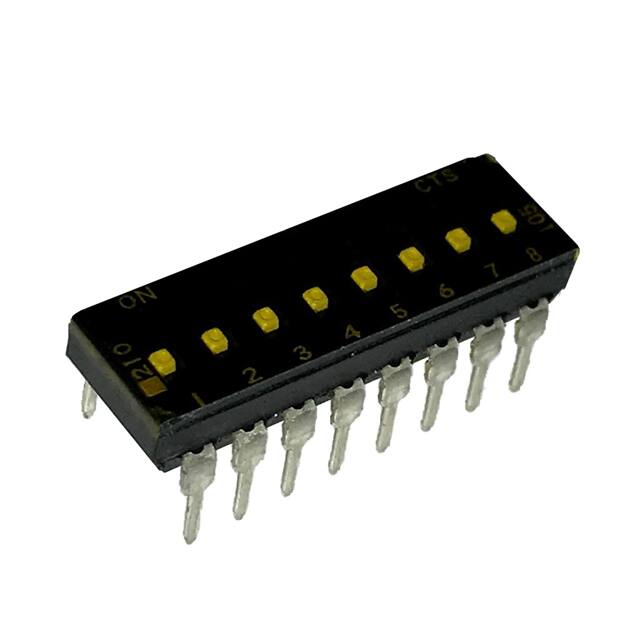

210-8LPSTFDSWITCH SLIDE DIP SPST 0.1A 20V |
2,479 |
|
Datasheet |
210 | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
210-8MSTFDSWITCH SLIDE DIP SPST 0.1A 20V |
1,605 |
|
Datasheet |
210 | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
|
CHS-01TA1SWITCH SLIDE DIP SPST 0.1A 6V |
3,590 |
|
Datasheet |
CHS | Strip | Active | SPST | 1 | 6VDC | Slide (Standard) | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | J Lead | -40°C ~ 85°C | 0.050" (1.27mm), Half | - | No |
|
|
QHPS02ERDIP SWITCHES / SIP SWITCHES |
4,137 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
208-7SWITCH SLIDE DIP SPST 0.05A 24V |
4,913 |
|
Datasheet |
208 | Tube | Active | SPST | 7 | 24VDC | Slide (Standard) | Raised | 50mA | - | Tin | 0.334" (8.48mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
CJS-1200TA1SWITCH SLIDE SPDT 100MA 6V |
3,153 |
|
Datasheet |
CJS | Tape & Reel (TR) | Active | SPDT | - | - | Flush | - | 100mA | Copper Alloy | Gold | - | Surface Mount | J Lead | -40°C ~ 85°C | - | - | - |
|
CFS-0101TASWITCH SLIDE DIP SPST 0.1A 6V |
4,029 |
|
Datasheet |
CFS | Tape & Reel (TR) | Active | SPST | 1 | 6VDC | Slide (Standard) | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.154" (3.90mm) | Surface Mount | J Lead | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
CFS-0201TASWITCH SLIDE DIP SPST 0.1A 6V |
1,685 |
|
Datasheet |
CFS | Tape & Reel (TR) | Active | SPST | 2 | 6VDC | Slide (Standard) | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.154" (3.90mm) | Surface Mount | J Lead | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

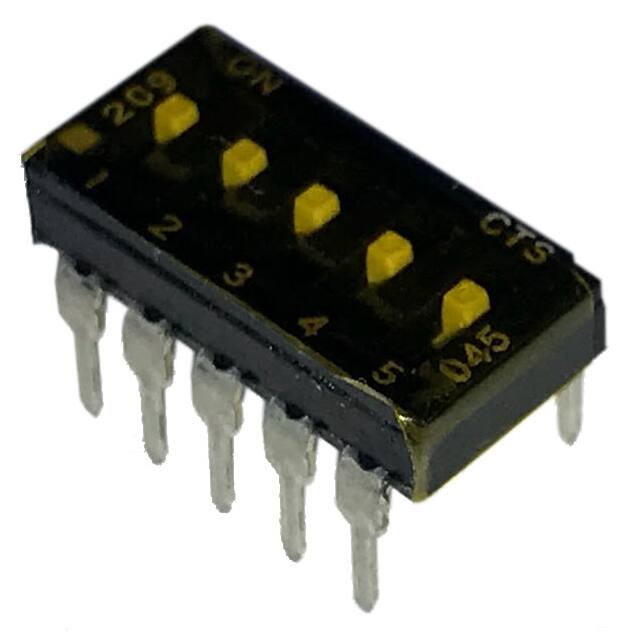

209-5MSTSWITCH SLIDE DIP SPST 0.1A 20V |
3,340 |
|
Datasheet |
209 | Tube | Active | SPST | 5 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
|
209-5LPSTDSWITCH SLIDE DIP SPST 0.1A 20V |
2,645 |
|
Datasheet |
209 | Tube | Active | SPST | 5 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
