| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
209-5LPSTFSWITCH SLIDE DIP SPST 0.1A 20V |
2,206 |
|
Datasheet |
209 | Tube | Active | SPST | 5 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
|
209-5LPSTFDSWITCH SLIDE DIP SPST 0.1A 20V |
2,093 |
|
Datasheet |
209 | Tube | Active | SPST | 5 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
209-5MSTDSWITCH SLIDE DIP SPST 0.1A 20V |
2,850 |
|
Datasheet |
209 | Tube | Active | SPST | 5 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|

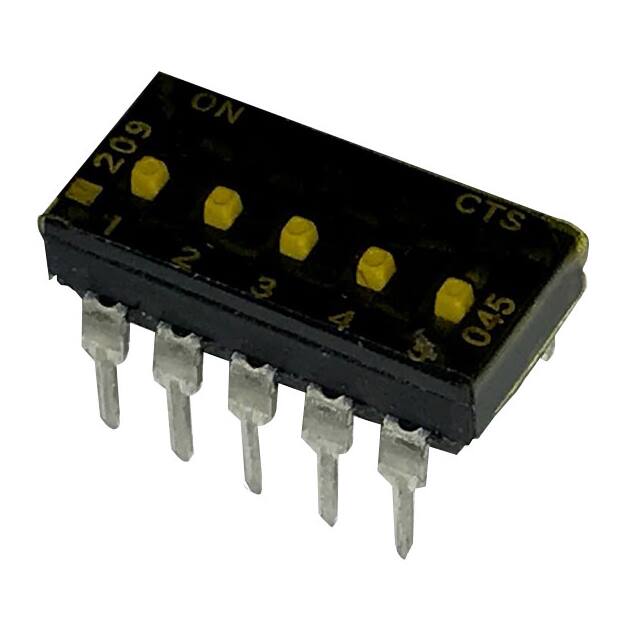

209-5MSTFSWITCH SLIDE DIP SPST 0.1A 20V |
2,969 |
|
Datasheet |
209 | Tube | Active | SPST | 5 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
209-5MSTFDSWITCH SLIDE DIP SPST 0.1A 20V |
1,297 |
|
Datasheet |
209 | Tube | Active | SPST | 5 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
|
219-5ESSWITCH SLIDE DIP SPST 0.1A 20V |
4,577 |
|
Datasheet |
219 | Tube | Active | SPST | 5 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.184" (4.67mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
219-5ESFSWITCH SLIDE DIP SPST 0.1A 20V |
1,997 |
|
Datasheet |
219 | Tube | Active | SPST | 5 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.184" (4.67mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-5LPSSWITCH SLIDE DIP SPST 0.1A 20V |
3,253 |
|
Datasheet |
219 | Tube | Active | SPST | 5 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-5LPSFSWITCH SLIDE DIP SPST 0.1A 20V |
1,273 |
|
Datasheet |
219 | Tube | Active | SPST | 5 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-5MSSWITCH SLIDE DIP SPST 0.1A 20V |
3,606 |
|
Datasheet |
219 | Tube | Active | SPST | 5 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-5MSFSWITCH SLIDE DIP SPST 0.1A 20V |
1,214 |
|
Datasheet |
219 | Tube | Active | SPST | 5 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
206-2ESWITCH SLIDE DIP SPST 0.05A 24V |
2,253 |
|
Datasheet |
206 | Tube | Active | SPST | 2 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.434" (11.02mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
219-4ESRSWITCH SLIDE DIP SPST 0.1A 20V |
2,622 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 4 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.184" (4.67mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-4ESRFSWITCH SLIDE DIP SPST 0.1A 20V |
1,351 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 4 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.184" (4.67mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-4LPSRSWITCH SLIDE DIP SPST 0.1A 20V |
1,890 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 4 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-4LPSRFSWITCH SLIDE DIP SPST 0.1A 20V |
4,396 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 4 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-4MSRSWITCH SLIDE DIP SPST 0.1A 20V |
3,313 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 4 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
219-4MSRFSWITCH SLIDE DIP SPST 0.1A 20V |
2,377 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 4 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
208-6SSWITCH SLIDE DIP SPST 0.05A 24V |
4,948 |
|
Datasheet |
208 | Tube | Active | SPST | 6 | 24VDC | Slide (Standard) | Raised | 50mA | - | Tin | 0.334" (8.48mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|

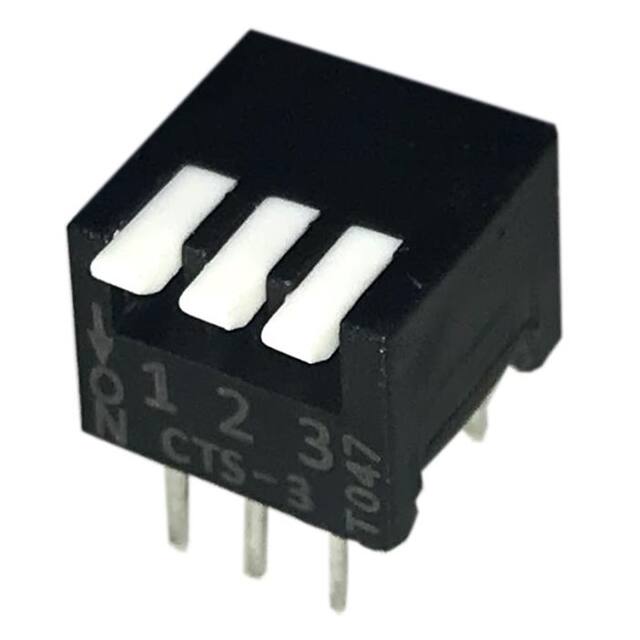

195-3MSSWITCH PIANO DIP SPST 0.05A 24V |
4,607 |
|
Datasheet |
195 | Tube | Active | SPST | 3 | 24VDC | Piano | Raised | 50mA | - | Tin | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
