| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SC-2010WSWITCH ROTARY DIP BCD 0.1A 5V |
2,437 |
|
Datasheet |
SC-2000 | Tray | Active | BCD | 10 | 5VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.154" (3.90mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
SC-1030WSW ROTARY DIP HEX COMP 0.1A 5V |
4,329 |
|
Datasheet |
SC | Tray | Active | Hexadecimal Complement | 16 | 5VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.154" (3.90mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
SC-1030TBSW ROTARY DIP HEX COMP 0.1A 5V |
1,335 |
|
Datasheet |
SC | Tape & Reel (TR) | Active | Hexadecimal Complement | 16 | 5VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.157" (4.00mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
SC-2230TBSW ROTARY DIP BCD COMP 0.1A 5V |
4,690 |
|
Datasheet |
SC-2000 | Tape & Reel (TR) | Active | BCD Complement | 10 | 5VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.157" (4.00mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
SC-2230WSW ROTARY DIP BCD COMP 0.1A 5V |
2,446 |
|
Datasheet |
SC-2000 | Tray | Active | BCD Complement | 10 | 5VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.154" (3.90mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
SC-1010TBSWITCH ROTARY DIP HEX 0.1A 5V |
1,158 |
|
Datasheet |
SC | Tape & Reel (TR) | Active | Hexadecimal | 16 | 5VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.157" (4.00mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
ADP04SSWITCH PIANO DIP SPST 0.025A 24V |
1,455 |
|
Datasheet |
ADP | Tube | Obsolete | SPST | 4 | 24VDC | Piano | Raised | 25mA | Copper Alloy | Gold | 0.303" (7.70mm) | Surface Mount, Right Angle | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
3-5435668-4SWITCH ROCKER DIP SPST 0.06A 5V |
2,798 |
|
Datasheet |
7100 | Tube | Active | SPST | 4 | 5VDC | Rocker | Flush, Recessed | 60mA | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole | PC Pin | -55°C ~ 105°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
|
ADE08SASWITCH SLIDE DIP SPST 0.1A 24V |
4,629 |
|
Datasheet |
ADE | Tube | Obsolete | SPST | 8 | 24VDC | Slide (Standard) | Raised | 100mA | Copper Alloy | Gold | 0.246" (6.25mm) | Surface Mount | J Lead | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
ADF10STSWITCH SLIDE DIP SPST 0.025A 24V |
1,749 |
|
Datasheet |
ADF | Tube | Obsolete | SPST | 10 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.177" (4.50mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
CFS-0501MBSWITCH SLIDE DIP SPST 0.1A 6V |
1,859 |
|
Datasheet |
CFS | Tube | Active | SPST | 5 | 6VDC | Slide (Standard) | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

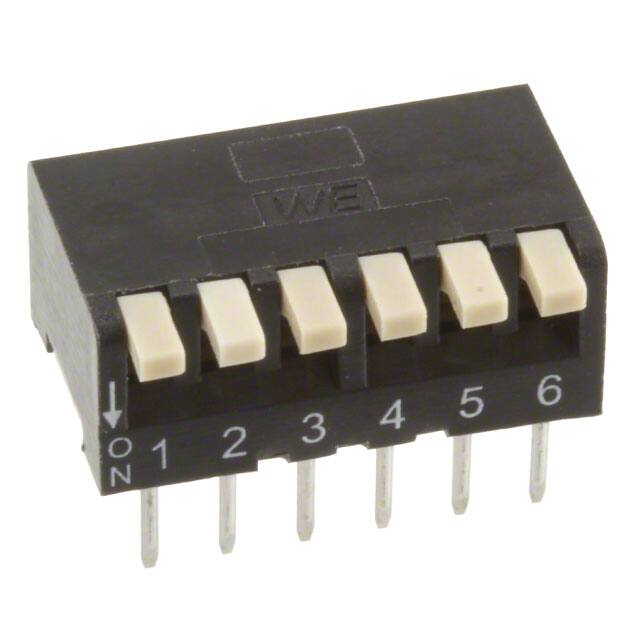

418317270906SWITCH PIANO DIP SPST 0.025A 24V |
3,047 |
|
Datasheet |
WS-DITU | Tube | Obsolete | SPST | 6 | 24VDC | Piano | Raised | 25mA | - | Gold | 0.272" (6.90mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
DM12SWITCH SLIDE DIP SPST 0.025A 24V |
4,659 |
|
Datasheet |
DM | Tube | Active | SPST | 12 | 24VDC | Slide (Standard) | Raised | 25mA | Copper Alloy | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
KAE12TAGTSWITCH SLIDE DIP SPST 0.025A 24V |
1,153 |
|
Datasheet |
KAE | Tube | Active | SPST | 12 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper | Gold | 0.142" (3.60mm) | Through Hole | PC Pin | -20°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
|
KAD10LGGTSwitches |
2,789 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
5435668-7SWITCH ROCKER DIP SPST |
1,489 |
|
Datasheet |
7100 | Tape & Reel (TR) | Active | SPST | 8 | - | Rocker | Flush, Recessed | - | - | - | - | Through Hole | - | - | - | - | No |
|
|
204-313STSWITCH SLIDE DIP 3PST 0.05A 24V |
2,077 |
|
Datasheet |
204 | Tube | Active | 3PST | 3 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
ADP06SWITCH PIANO DIP SPST 0.025A 24V |
4,917 |
|
Datasheet |
ADP | Tube | Obsolete | SPST | 6 | 24VDC | Piano | Raised | 25mA | Copper Alloy | Gold | 0.294" (7.47mm) | Through Hole, Right Angle | PC Pin | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
RDS6-4S-1065-1-DSWITCH ROTARY DIP SPST 0.15A 42V |
1,357 |
|
Datasheet |
RDS6-1065-D | Tube | Active | SPST | - | 42VDC | Rotary with Shaft | Raised | 150mA | Phosphor Bronze | Gold | 0.425" (10.80mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
RDS3-4S-1065-1-DSWITCH ROTARY DIP SPST 0.15A 42V |
3,034 |
|
Datasheet |
RDS3-1065-D | Tube | Active | SPST | - | 42VDC | Rotary with Shaft | Raised | 150mA | Phosphor Bronze | Gold | 0.425" (10.80mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
