| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADF08STTRSWITCH SLIDE DIP SPST 0.025A 24V |
2,050 |
|
Datasheet |
ADF | Tape & Reel (TR) | Obsolete | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.177" (4.50mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
418311170802SWITCH PIANO DIP SPST 0.025A 24V |
2,654 |
|
Datasheet |
WS-DISU | Tape & Reel (TR) | Obsolete | SPST | 2 | 24VDC | Piano | Flush, Recessed | 25mA | - | Gold | 0.275" (6.99mm) | Surface Mount, Right Angle | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
CFS-1002TBSWITCH SLIDE DIP SPST 0.1A 6V |
2,120 |
|
Datasheet |
CFS | Tape & Reel (TR) | Active | SPST | 10 | 6VDC | Slide (Standard) | Raised | 100mA | Copper Alloy | Gold | 0.169" (4.30mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
CFS-1003TBSWITCH SLIDE DIP SPST 0.1A 6V |
1,640 |
|
Datasheet |
CFS | Tape & Reel (TR) | Active | SPST | 10 | 6VDC | Slide (Standard) | Raised | 100mA | Copper Alloy | Gold | 0.185" (4.70mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
CFS-0503MCSWITCH SLIDE DIP SPST 0.1A 6V |
4,841 |
|
Datasheet |
CFS | Tube | Active | SPST | 5 | 6VDC | Slide (Standard) | Raised | 100mA | Copper Alloy | Gold | 0.217" (5.50mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
CFS-0503MBSWITCH SLIDE DIP SPST 0.1A 6V |
2,282 |
|
Datasheet |
CFS | Tube | Active | SPST | 5 | 6VDC | Slide (Standard) | Raised | 100mA | Copper Alloy | Gold | 0.185" (4.70mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
CFS-0500MCSWITCH SLIDE DIP SPST 0.1A 6V |
3,891 |
|
Datasheet |
CFS | Tube | Active | SPST | 5 | 6VDC | Slide (Standard) | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.177" (4.50mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|

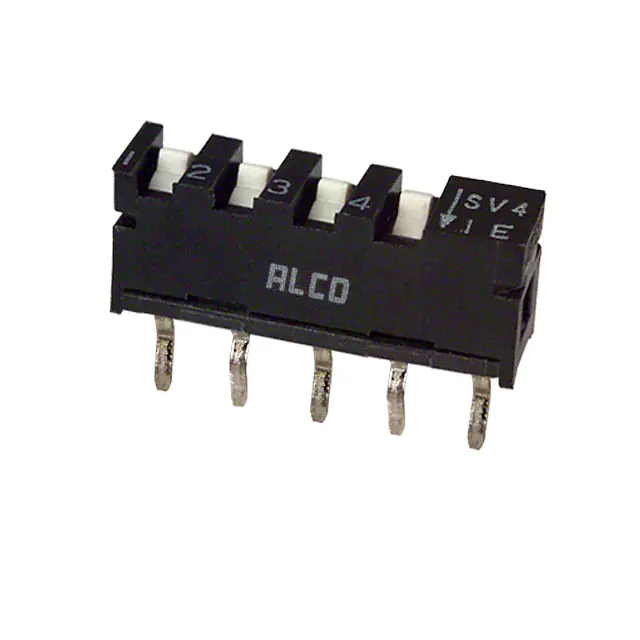

SSV04SWITCH SLIDE DIP SPST 0.4VA 20V |
3,609 |
|
Datasheet |
SSV | Tube | Obsolete | SPST | 4 | 20VAC/DC | Slide (Standard) | Flush, Recessed | 0.4VA | Beryllium Copper | Gold | 0.197" (5.00mm) | Through Hole | PC Pin | -30°C ~ 85°C | 0.100" (2.54mm), Full | Process Sealed | Yes |
|
|
BPA09RBSWITCH PIANO DIP SPST 100MA 5VDC |
1,370 |
|
Datasheet |
BPA | Bulk | Active | SPST | 9 | 5VDC | Piano | Raised | 100mA | Beryllium Copper | Gold | 0.287" (7.30mm) | Through Hole, Right Angle | PC Pin | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
5-5435640-1SWITCH ROCKER DIP SPST |
3,024 |
|
Datasheet |
7100 | Tube | Obsolete | SPST | 10 | - | Rocker | Raised | - | - | - | - | Through Hole | - | - | - | - | Yes |
|
3-5435668-5SWITCH ROCKER DIP SPST 0.06A 5V |
2,011 |
|
Datasheet |
7100 | Tube | Active | SPST | 5 | 5VDC | Rocker | Flush, Recessed | 60mA | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole | PC Pin | -55°C ~ 105°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
1-5435802-9SWITCH PIANO DIP SPST |
3,983 |
|
Datasheet |
7000 | Tape & Reel (TR) | Obsolete | SPST | 9 | - | Piano | Raised | - | - | - | - | Through Hole | - | - | - | - | Yes |
|
|
EMR04TVTRDIP SWITCH DM LOW PROFILE |
4,882 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
KAP1112ESWITCH PIANO DIP SPST 0.025A 24V |
3,464 |
|
Datasheet |
KAP | Tube | Active | SPST | 12 | 24VDC | Piano | Raised | 25mA | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
DHNF04FDIP SWITCH IKH HALF PITCH |
1,673 |
|
Datasheet |
DHN | Bulk | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | Gold | 0.059" (1.50mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | - | No |
|
|
RDS5-4S-1065-SMT-TR-67SWITCH ROTARY DIP SPST 0.15A 42V |
4,974 |
|
Datasheet |
RDS5-1065-SMT-67 | Tape & Reel (TR) | Active | SPST | - | 42VDC | Rotary for Tool | Flush, Recessed | 150mA | Phosphor Bronze | Gold | 0.268" (6.80mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
RDS6-4S-1065-SMT-TRSWITCH ROTARY DIP SPST 0.15A 42V |
2,853 |
|
Datasheet |
RDS6-1065-SMT | Tape & Reel (TR) | Active | SPST | - | 42VDC | Rotary for Tool | Flush, Recessed | 150mA | Phosphor Bronze | Gold | 0.268" (6.80mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
RDS1-4S-1065-SMT-TR-67SWITCH ROTARY DIP SPST 0.15A 42V |
2,343 |
|
Datasheet |
RDS1-1065-SMT-67 | Tape & Reel (TR) | Active | SPST | - | 42VDC | Rotary for Tool | Flush, Recessed | 150mA | Phosphor Bronze | Gold | 0.268" (6.80mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
CFP-0501TBSWITCH PIANO DIP SPST 0.1A 6V |
2,157 |
|
Datasheet |
CFP | Tape & Reel (TR) | Active | SPST | 5 | 6VDC | Piano | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.264" (6.70mm) | Surface Mount, Right Angle | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
CFP-0511TBSWITCH PIANO DIP SPST 0.1A 6V |
2,754 |
|
Datasheet |
CFP | Tape & Reel (TR) | Active | SPST | 5 | 6VDC | Piano | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.264" (6.70mm) | Surface Mount, Right Angle | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
