| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KAE12TGGTSWITCH SLIDE DIP SPST 0.025A 24V |
2,158 |
|
Datasheet |
KAE | Tube | Active | SPST | 12 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper | Gold | 0.148" (3.75mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
|
SDA06H0SBDRSWITCH SLIDE DIP SPST 100MA 5VDC |
3,798 |
|
Datasheet |
SDA | Tape & Reel (TR) | Active | SPST | 6 | 5VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
GDP02SWITCH PIANO DIP SPST 0.025A 24V |
3,515 |
|
Datasheet |
GDP | Tube | Obsolete | SPST | 2 | 24VDC | Piano | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.303" (7.70mm) | Through Hole, Right Angle | PC Pin | -30°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
|
ADPA05SWITCH PIANO DIP SPST 0.025A 24V |
1,183 |
|
Datasheet |
ADPA | Tube | Obsolete | SPST | 5 | 24VDC | Piano | Raised | 25mA | Copper Alloy | Gold | 0.294" (7.47mm) | Through Hole, Right Angle | PC Pin | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
ADF12SSWITCH SLIDE DIP SPST 0.025A 24V |
2,371 |
|
Datasheet |
ADF | Tube | Obsolete | SPST | 12 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.181" (4.60mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
IKE0403101DIP SWITCH IKH HALF PITCH |
3,304 |
|
Datasheet |
IKE | Bulk | Active | SPST | 4 | 24VDC | Slide (Standard) | Raised | 25mA | Copper | Gold | 0.134" (3.40mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
CS-4-14NASWITCH ROTARY DIP SP4T 0.1A 16V |
4,409 |
|
Datasheet |
CS-4 | Bulk | Active | SP4T | 4 | 16VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | J Lead | -25°C ~ 70°C | 0.051" (1.30mm) | - | Yes |
|
|
CS-4-14NBSWITCH ROTARY DIP SP4T 0.1A 16V |
3,132 |
|
Datasheet |
CS-4 | Bulk | Active | SP4T | 4 | 16VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | -25°C ~ 70°C | 0.051" (1.30mm) | - | Yes |
|
TDS08SGNNTR04SWITCH SLIDE DIP SPST 0.025A 24V |
1,435 |
|
Datasheet |
TDS | Tape & Reel (TR) | Active | SPST | 8 | 24VDC | Slide (Standard) | Raised | 25mA | Copper Alloy | Gold | 0.161" (4.10mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
CFS-0603MBSWITCH SLIDE DIP SPST 0.1A 6V |
4,779 |
|
Datasheet |
CFS | Tube | Active | SPST | 6 | 6VDC | Slide (Standard) | Raised | 100mA | Copper Alloy | Gold | 0.185" (4.70mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
CFS-0603MCSWITCH SLIDE DIP SPST 0.1A 6V |
2,589 |
|
Datasheet |
CFS | Tube | Active | SPST | 6 | 6VDC | Slide (Standard) | Raised | 100mA | Copper Alloy | Gold | 0.217" (5.50mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
NDA10TVDIP SWITCH DA RIGHT ANGLE |
1,609 |
|
Datasheet |
NDA | Bulk | Active | SPST | 10 | 24VDC | Slide (Standard) | Raised | 25mA | - | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | Yes |
|
|
4-1825059-0SWITCH STANDARD DIP SPST |
3,278 |
|
Datasheet |
ADF | Tape & Reel (TR) | Active | SPST | 8 | - | Standard | Flush, Recessed | - | - | - | - | Surface Mount | - | - | - | - | Yes |
|
KAN1102RSWITCH SLIDE DIP SPST 0.025A 24V |
2,564 |
|
Datasheet |
KAN | Tube | Active | SPST | 2 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | - | No |
|

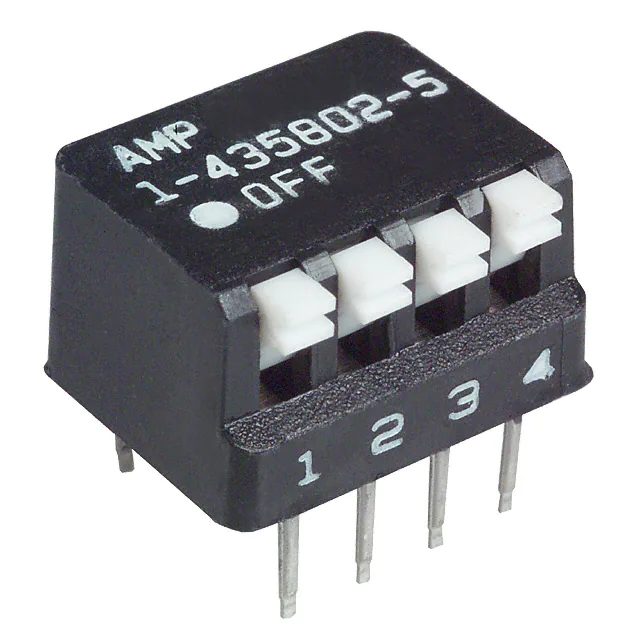

1-435802-5SWITCH PIANO DIP SPST 0.025A 24V |
1,986 |
|
Datasheet |
7000 | Tube | Active | SPST | 4 | 24VDC | Piano | Raised | 25mA | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole, Right Angle | PC Pin | -55°C ~ 105°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
|
RDS3-4S-1012-RA-254-DSWITCH ROTARY DIP SPST 0.15A 42V |
1,239 |
|
Datasheet |
RDS3-1012-RA | Tube | Active | SPST | - | 42VDC | Rotary for Tool | Flush, Recessed | 150mA | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
RDS6-4S-1011-RA-508-DSWITCH ROTARY DIP SPST 0.15A 42V |
3,237 |
|
Datasheet |
RDS6-1011-RA | Tape & Reel (TR) | Active | SPST | - | 42VDC | Rotary for Tool | Flush, Recessed | 150mA | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
RDS2-4S-1012-RA-508-D-67SWITCH ROTARY DIP SPST 0.15A 42V |
3,469 |
|
Datasheet |
RDS2-1012-RA-67 | Tube | Active | SPST | - | 42VDC | Rotary for Tool | Flush, Recessed | 150mA | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
RDS5-4S-1011-RA-508-D-67SWITCH ROTARY DIP SPST 0.15A 42V |
2,634 |
|
Datasheet |
RDS5-1011-RA-67 | Tube | Active | SPST | - | 42VDC | Rotary for Tool | Flush, Recessed | 150mA | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
RDS3-4S-1012-RA-508-DSWITCH ROTARY DIP SPST 0.15A 42V |
1,766 |
|
Datasheet |
RDS3-1012-RA | Tape & Reel (TR) | Active | SPST | - | 42VDC | Rotary for Tool | Flush, Recessed | 150mA | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
