| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFP-0512TBSWITCH PIANO DIP SPST 0.1A 6V |
2,301 |
|
Datasheet |
CFP | Tape & Reel (TR) | Active | SPST | 5 | 6VDC | Piano | Raised | 100mA | Copper Alloy | Gold | 0.264" (6.70mm) | Surface Mount, Right Angle | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
CFP-0502TBSWITCH PIANO DIP SPST 0.1A 6V |
2,244 |
|
Datasheet |
CFP | Tape & Reel (TR) | Active | SPST | 5 | 6VDC | Piano | Raised | 100mA | Copper Alloy | Gold | 0.264" (6.70mm) | Surface Mount, Right Angle | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
1-1393546-7SWITCH DIP SPDT |
3,316 |
|
Datasheet |
DIP-FIX | Bulk | Obsolete | SPDT | 4 | - | - | Raised | - | - | - | 0.319" (8.10mm) | Through Hole | PC Pin | - | 0.100" (2.54mm), Full | - | No |
|
GDS04SSWITCH SLIDE DIP SPST 0.025A 24V |
4,847 |
|
Datasheet |
GDS | Tube | Obsolete | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.114" (2.90mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|

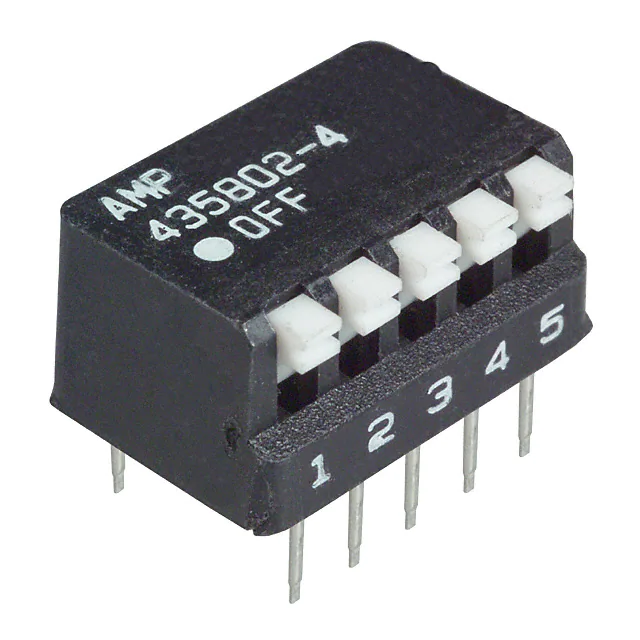

435802-4SWITCH PIANO DIP SPST 0.025A 24V |
1,291 |
|
Datasheet |
7000 | Tube | Obsolete | SPST | 5 | 24VDC | Piano | Raised | 25mA | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole, Right Angle | PC Pin | -55°C ~ 105°C | 0.100" (2.54mm), Full | - | No |
|
TDA06H0SK1RSWITCH SLIDE DIP SPST 0.025A 24V |
2,913 |
|
Datasheet |
TDA | Tape & Reel (TR) | Obsolete | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|
|
NDS10VDIP SWITCH ND STANDARD |
1,692 |
|
Datasheet |
NDS | Bulk | Active | SPST | 10 | 24VDC | Slide (Standard) | Raised | 25mA | - | Gold | 0.270" (6.85mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
DHN02TVDIP SWITCH IKH HALF PITCH |
2,724 |
|
Datasheet |
DHN | Bulk | Active | SPST | 2 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | Gold | 0.059" (1.50mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | - | No |
|
|
NDIR08STSWITCH SLIDE DIP SPST 0.025A 24V |
3,541 |
|
Datasheet |
NDI | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.173" (4.40mm) | Through Hole | PC Pin | -20°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
1825152-2SWITCH SLIDE DIP SPST 0.4VA 20V |
4,535 |
|
Datasheet |
SSV | Tube | Obsolete | SPST | 4 | 20VAC/DC | Slide (Standard) | Flush, Recessed | 0.4VA | Copper Alloy | Gold | 0.197" (5.00mm) | Through Hole | PC Pin | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
COM-08034SWITCH SLIDE DIP SPST |
3,054 |
|
Datasheet |
- | Bulk | Active | SPST | 8 | - | Slide (Standard) | Raised | - | - | - | 0.280" (7.10mm) | Through Hole | PC Pin | - | 0.100" (2.54mm), Full | - | No |
|
|
ADF08SASWITCH SLIDE DIP SPST 0.025A 24V |
4,663 |
|
Datasheet |
ADF | Tube | Obsolete | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.203" (5.15mm) | Surface Mount | J Lead | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
NDIR02SSWITCH SLIDE DIP SPST 0.025A 24V |
1,154 |
|
Datasheet |
NDI | Tube | Active | SPST | 2 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.173" (4.40mm) | Through Hole | PC Pin | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
CHP-040TASWITCH PIANO DIP SPST 0.1A 6V |
2,780 |
|
Datasheet |
CHP | Tape & Reel (TR) | Active | SPST | 4 | 6VDC | Piano | Raised | 100mA | Copper Alloy | Gold | 0.181" (4.60mm) | Surface Mount, Right Angle | J Lead | -40°C ~ 85°C | 0.050" (1.27mm), Half | - | No |
|
CHP-040TBSWITCH PIANO DIP SPST 0.1A 6V |
1,442 |
|
Datasheet |
CHP | Tape & Reel (TR) | Active | SPST | 4 | 6VDC | Piano | Raised | 100mA | Copper Alloy | Gold | 0.181" (4.60mm) | Surface Mount, Right Angle | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | - | No |
|
|
DR3MS-10R-TRSWITCH ROTARY DIP BCD 0.025A 24V |
1,868 |
|
Datasheet |
DR | Tape & Reel (TR) | Active | BCD | 10 | 24VDC | Rotary with Shaft | Raised | 25mA | Copper | Gold | 0.303" (7.70mm) | Surface Mount | Gull Wing | -25°C ~ 80°C | 0.100" (2.54mm), Full | - | No |
|
|
GDS02SSWITCH SLIDE DIP SPST 0.025A 24V |
4,013 |
|
Datasheet |
GDS | Tube | Obsolete | SPST | 2 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.114" (2.90mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
|
KAN1104RR-ONSWITCH SLIDE DIP SPST 0.025A 24V |
1,463 |
|
Datasheet |
KAN | Tape & Reel (TR) | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.064" (1.63mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | - | Yes |
|
|
1-1571999-7SWITCH PIANO DIP SPST |
2,277 |
|
Datasheet |
ADP | Tube | Active | SPST | 6 | - | Piano | Raised | - | - | - | - | Surface Mount | - | - | - | - | Yes |
|
|
RDS3-4S-1065-SMT-TRSWITCH ROTARY DIP SPST 0.15A 42V |
1,998 |
|
Datasheet |
RDS3-1065-SMT | Tape & Reel (TR) | Active | SPST | - | 42VDC | Rotary for Tool | Flush, Recessed | 150mA | Phosphor Bronze | Gold | 0.268" (6.80mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
