DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KR03ESWITCH SLIDE DIP SPST 0.025A 24V |
635 |
|
Datasheet |
KR | Tube | Active | SPST | 3 | 24VDC | Slide (Standard) | Raised | 25mA | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
A6FR-5101SWITCH PIANO DIP SPST 0.025A 24V |
131 |
|
Datasheet |
A6FR | Tube | Active | SPST | 5 | 24VDC | Piano | Flush, Recessed | 25mA | - | - | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|
KJ02RTRSWITCH SLIDE DIP SPST 0.025A 24V |
888 |
|
Datasheet |
KJ | Tape & Reel (TR) | Active | SPST | 2 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.140" (3.55mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
CFS-0202MASWITCH SLIDE DIP SPST 0.1A 6V |
211 |
|
Datasheet |
CFS | Tube | Active | SPST | 2 | 6VDC | Slide (Standard) | Raised | 100mA | Copper Alloy | Gold | 0.178" (4.52mm) | Surface Mount | J Lead | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
208-12SWITCH SLIDE DIP SPST 0.05A 24V |
727 |
|
Datasheet |
208 | Tube | Active | SPST | 12 | 24VDC | Slide (Standard) | Raised | 50mA | - | Tin | 0.334" (8.48mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
210-12MSSWITCH SLIDE DIP SPST 0.1A 20V |
2,544 |
|
Datasheet |
210 | Tube | Active | SPST | 12 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
206-8LPSTSWITCH SLIDE DIP SPST 0.05A 24V |
1,248 |
|
Datasheet |
206 | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 50mA | - | Gold | 0.299" (7.60mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
DS02C-254-1L-06BESWITCH PIANO DIP SPST 0.025A 24V |
762 |
|
Datasheet |
DS02-254 | Tube | Active | SPST | 6 | 24VDC | Piano | Raised | 25mA | Copper Alloy | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
DS01C-254-L-12BESWITCH SLIDE DIP SPST 0.025A 24V |
542 |
|
Datasheet |
DS01-254 | Tube | Active | SPST | 12 | 24VDC | Slide (Standard) | Raised | 25mA | Copper Alloy | Gold | 0.264" (6.70mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
DS04-254-2-07BK-SMTSWITCH SLIDE DIP SPST 0.025A 24V |
822 |
|
Datasheet |
DS04-254-SMT | Tube | Active | SPST | 7 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.167" (4.25mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

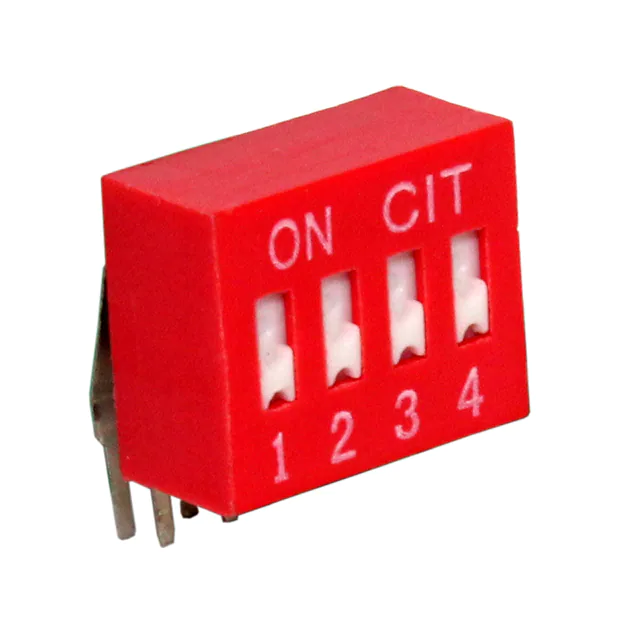

KR04RSWITCH SLIDE DIP SPST 0.025A 24V |
764 |
|
Datasheet |
KR | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
KR04ESWITCH SLIDE DIP SPST 0.025A 24V |
709 |
|
Datasheet |
KR | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Raised | 25mA | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
KAS1102ESWITCH SLIDE DIP SPST 0.025A 24V |
1,336 |
|
Datasheet |
KAS | Tube | Active | SPST | 2 | 24VDC | Slide (Standard) | Raised | 25mA | Phosphor Bronze | Gold | 0.275" (6.99mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
DS04-254-2-06BK-SMT-TRSWITCH SLIDE DIP SPST 0.025A 24V |
597 |
|
Datasheet |
DS04-254-SMT | Tape & Reel (TR) | Active | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.167" (4.25mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
206-7STSWITCH SLIDE DIP SPST 0.05A 24V |
4,454 |
|
Datasheet |
206 | Tube | Active | SPST | 7 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
DS04-254-2L-08BKSWITCH SLIDE DIP SPST 0.025A 24V |
861 |
|
Datasheet |
DS04-254 | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.144" (3.66mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
204-4STRSWITCH SLIDE DIP SPST 0.05A 24V |
20,503 |
|
Datasheet |
204 | Tape & Reel (TR) | Active | SPST | 4 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
KAE04LGGTSWITCH SLIDE DIP SPST 0.025A 24V |
8,977 |
|
Datasheet |
KAE | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Raised | 25mA | Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

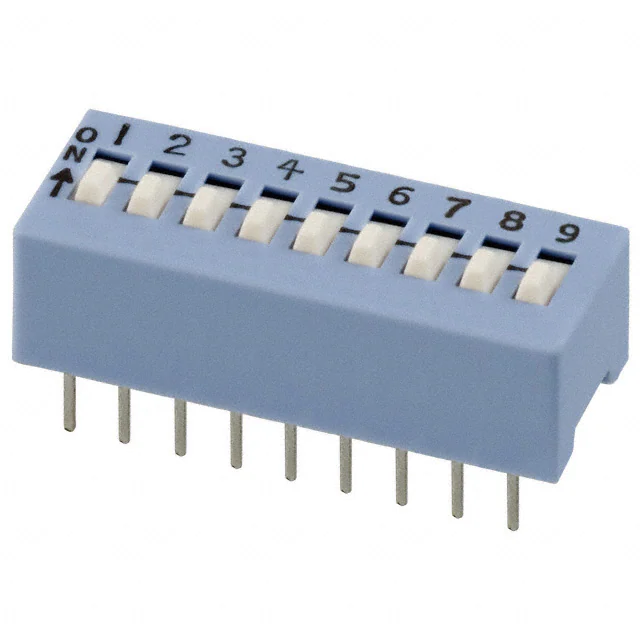

206-9SWITCH SLIDE DIP SPST 0.05A 24V |
912 |
|
Datasheet |
206 | Tube | Active | SPST | 9 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
DS04-254-2-08BK-SMTSWITCH SLIDE DIP SPST 0.025A 24V |
538 |
|
Datasheet |
DS04-254-SMT | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.167" (4.25mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
