DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

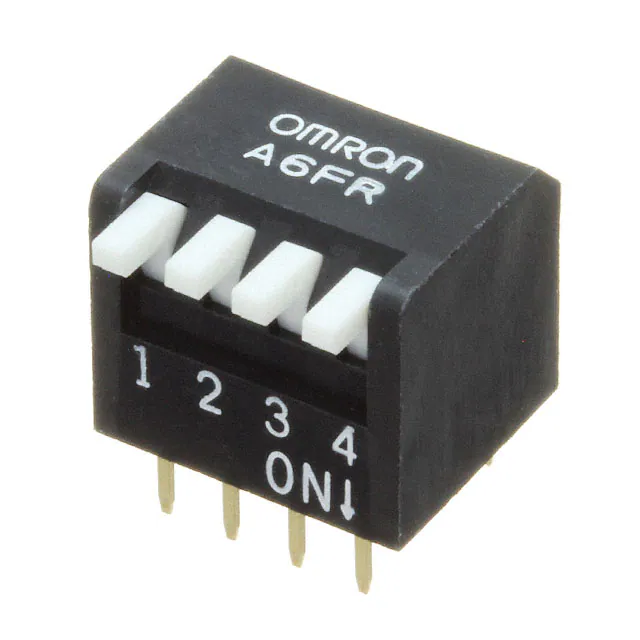

A6FR-4104SWITCH PIANO DIP SPST 0.025A 24V |
1,066 |
|
Datasheet |
A6FR | Tube | Active | SPST | 4 | 24VDC | Piano | Raised | 25mA | - | - | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|
206-10STSWITCH SLIDE DIP SPST 0.05A 24V |
149 |
|
Datasheet |
206 | Tube | Active | SPST | 10 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
KAE05TGGTSWITCH SLIDE DIP SPST 0.025A 24V |
3,611 |
|
Datasheet |
KAE | Tube | Active | SPST | 5 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper | Gold | 0.148" (3.75mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
DS04-254-1L-10BKSWITCH SLIDE DIP SPST 0.025A 24V |
338 |
|
Datasheet |
DS04-254 | Tube | Active | SPST | 10 | 24VDC | Slide (Standard) | Raised | 25mA | Copper Alloy | Gold | 0.166" (4.21mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

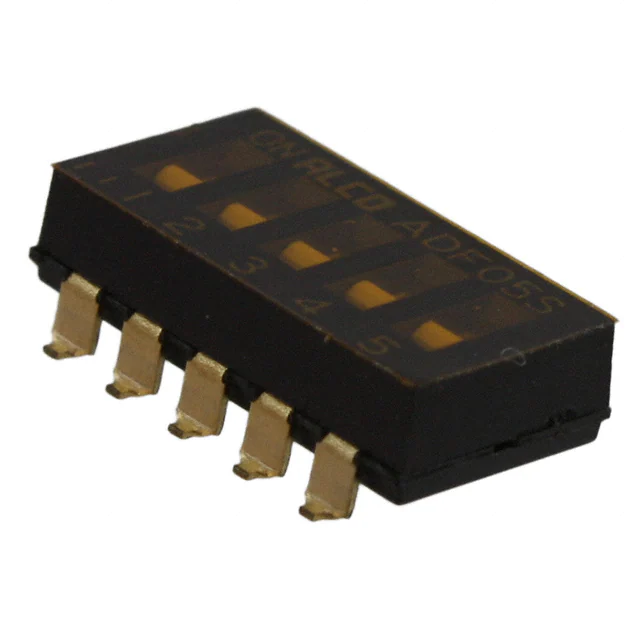

2-1825059-3SWITCH SLIDE DIP SPST 0.025A 24V |
19,924 |
|
Datasheet |
ADF | Tube | Active | SPST | 5 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.177" (4.50mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
DS04-254-2-10BK-SMTSWITCH SLIDE DIP SPST 0.025A 24V |
625 |
|
Datasheet |
DS04-254-SMT | Tube | Active | SPST | 10 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.167" (4.25mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
7829H-1-051LFSWITCH ROTARY DIP SPDT 0.1A 16V |
103 |
|
Datasheet |
7829 | Tube | Active | SPDT | 2 | 16VAC/DC | Rotary for Tool | Raised | 100mA | - | - | 0.180" (4.57mm) | Through Hole | PC Pin | -55°C ~ 125°C | - | - | Yes |
|
DS04-254-1-07BK-SMTSWITCH SLIDE DIP SPST 0.025A 24V |
506 |
|
Datasheet |
DS04-254-SMT | Tube | Active | SPST | 7 | 24VDC | Slide (Standard) | Raised | 25mA | Copper Alloy | Gold | 0.189" (4.80mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
KAS2104ETSWITCH SLIDE DIP SPST 0.025A 24V |
1,265 |
|
Datasheet |
KAS | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Raised | 25mA | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
KAS1108RTSWITCH SLIDE DIP SPST 0.025A 24V |
1,051 |
|
Datasheet |
KAS | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Phosphor Bronze | Gold | 0.236" (6.00mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|

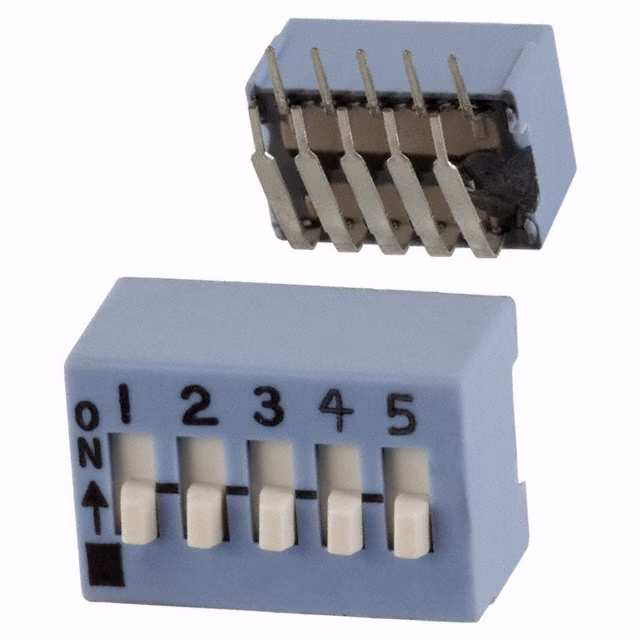

206-5RASTSWITCH SLIDE DIP SPST 0.05A 24V |
777 |
|
Datasheet |
206RA | Tube | Active | SPST | 5 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
204-213STSWITCH SLIDE DIP DPST 0.05A 24V |
3,882 |
|
Datasheet |
204 | Tube | Active | DPST | 3 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
DS02C-254-1L-10BESWITCH PIANO DIP SPST 0.025A 24V |
1,696 |
|
Datasheet |
DS02-254 | Tube | Active | SPST | 10 | 24VDC | Piano | Raised | 25mA | Copper Alloy | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

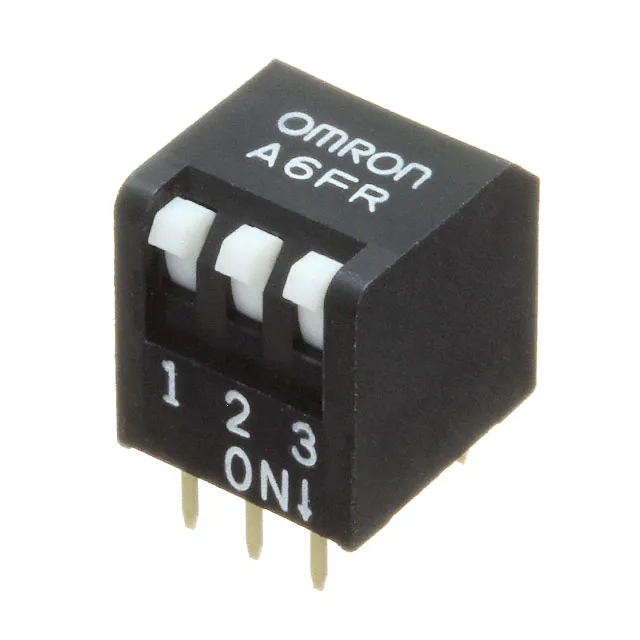

A6FR-3101SWITCH PIANO DIP SPST 0.025A 24V |
324 |
|
Datasheet |
A6FR | Tube | Active | SPST | 3 | 24VDC | Piano | Flush, Recessed | 25mA | - | - | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|
204-10STSWITCH SLIDE DIP SPST 0.05A 24V |
2,769 |
|
Datasheet |
204 | Tube | Active | SPST | 10 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
KAE02TGGTSWITCH SLIDE DIP SPST 0.025A 24V |
1,015 |
|
Datasheet |
KAE | Tube | Active | SPST | 2 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper | Gold | 0.148" (3.75mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
KJ06RTTSWITCH SLIDE DIP SPST 0.025A 24V |
480 |
|
Datasheet |
KJ | Tube | Active | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.140" (3.55mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
DS03-254-06BESWITCH SLIDE DIP SPST 0.025A 24V |
444 |
|
Datasheet |
DS03-254 | Tube | Active | SPST | 6 | 24VDC | Slide (Standard) | Raised | 25mA | Copper Alloy | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
CFS-0602TBSWITCH SLIDE DIP SPST 0.1A 6V |
626 |
|
Datasheet |
CFS | Tape & Reel (TR) | Active | SPST | 6 | 6VDC | Slide (Standard) | Raised | 100mA | Copper Alloy | Gold | 0.169" (4.30mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
1825057-6SWITCH SLIDE DIP SPST 0.1A 24V |
8,395 |
|
Datasheet |
ADE | Tube | Active | SPST | 7 | 24VDC | Slide (Standard) | Raised | 100mA | Copper Alloy | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
