DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

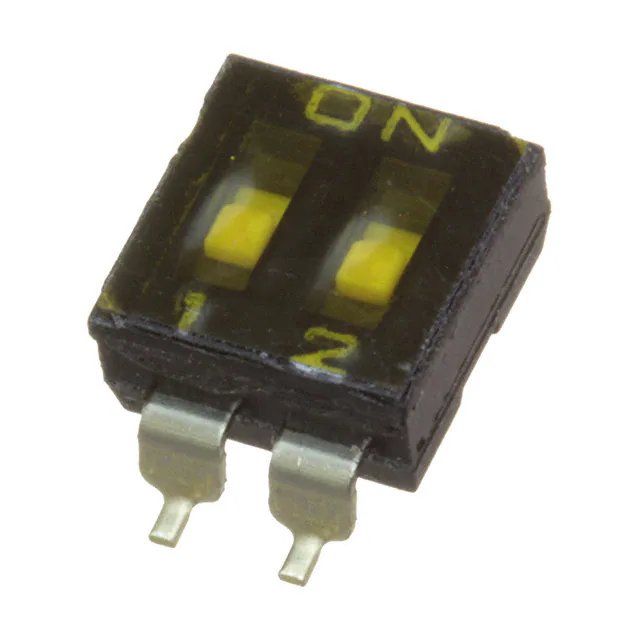

DMR02TSWITCH SLIDE DIP SPST 0.025A 24V |
747 |
|
Datasheet |
DM | Tube | Active | SPST | 2 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
EDS04SNNNTU04QSWITCH SLIDE DIP SPST 0.025A 24V |
700 |
|
Datasheet |
EDS | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Raised | 25mA | Copper Alloy | Gold | 0.152" (3.85mm) | Surface Mount | J Lead | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
A6T-1102SWITCH SLIDE DIP SPST 0.025A 24V |
1,422 |
|
Datasheet |
A6T | Tube | Active | SPST | 1 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | - | 0.142" (3.60mm) | Through Hole | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
KAS1104RTSWITCH SLIDE DIP SPST 0.025A 24V |
2,094 |
|
Datasheet |
KAS | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Phosphor Bronze | Gold | 0.236" (6.00mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|

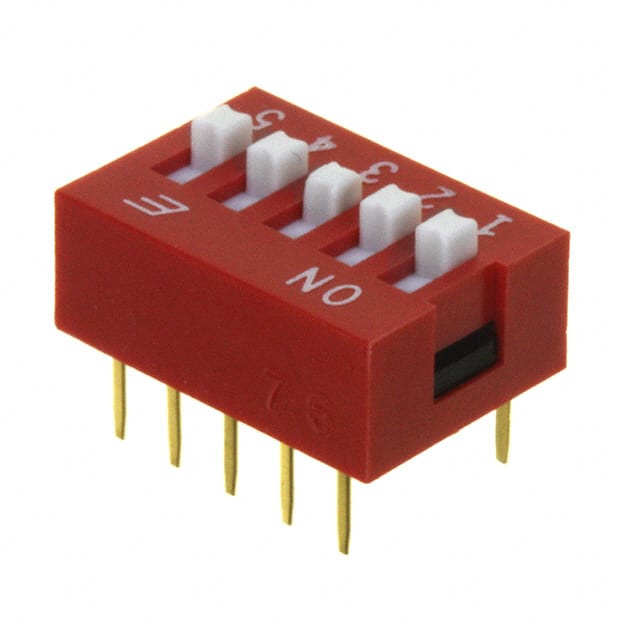

KAS1105ESWITCH SLIDE DIP SPST 0.025A 24V |
1,195 |
|
Datasheet |
KAS | Tube | Active | SPST | 5 | 24VDC | Slide (Standard) | Raised | 25mA | Phosphor Bronze | Gold | 0.275" (6.99mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

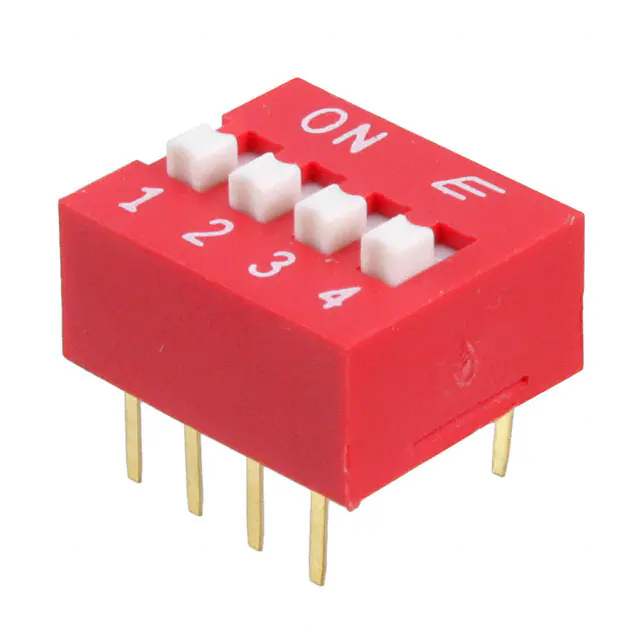

KAS1104ETSWITCH SLIDE DIP SPST 0.025A 24V |
669 |
|
Datasheet |
KAS | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Raised | 25mA | Phosphor Bronze | Gold | 0.275" (6.99mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
7814G-1-051ESWITCH ROTARY DIP SPDT 0.1A 16V |
651 |
|
Datasheet |
7814 | Tape & Reel (TR) | Active | SPDT | 2 | 16VAC/DC | Rotary for Tool | Flush, Recessed | 100mA | - | - | 0.100" (2.54mm) | Surface Mount | Gull Wing | -55°C ~ 125°C | - | - | No |
|
CFS-0400MBSWITCH SLIDE DIP SPST 0.1A 6V |
564 |
|
Datasheet |
CFS | Tube | Active | SPST | 4 | 6VDC | Slide (Standard) | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
1825002-9SWITCH SLIDE DIP SPST 0.025A 24V |
2,076 |
|
Datasheet |
ADF | Tube | Active | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.189" (4.80mm) | Through Hole | PC Pin | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
A6T-4102SWITCH SLIDE DIP SPST 0.025A 24V |
743 |
|
Datasheet |
A6T | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | - | 0.142" (3.60mm) | Through Hole | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
1-1825190-0SWITCH SHUNT DIP PROGRAMMABLE |
4,935 |
|
Datasheet |
7600 | Tube | Active | Programmable | 12 | - | Breakable (Shunt) | Flush, Recessed | - | Copper Alloy | Tin | 0.079" (2.00mm) | Through Hole | PC Pin | -55°C ~ 105°C | 0.100" (2.54mm), Full | - | Yes |
|

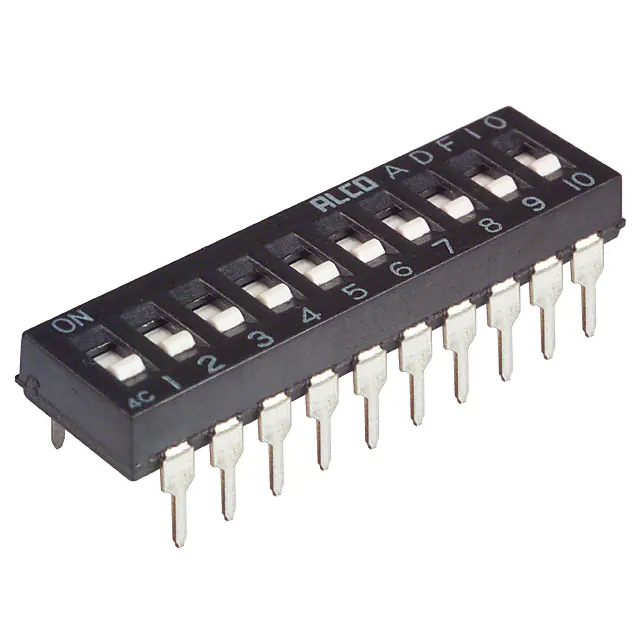

1-1825002-7SWITCH SLIDE DIP SPST 0.025A 24V |
2,244 |
|
Datasheet |
ADF | Tube | Active | SPST | 10 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.189" (4.80mm) | Through Hole | PC Pin | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
194-10MSTSWITCH PIANO DIP SPST 0.05A 24V |
1,111 |
|
Datasheet |
194 | Tube | Active | SPST | 10 | 24VDC | Piano | Raised | 50mA | - | Gold | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|

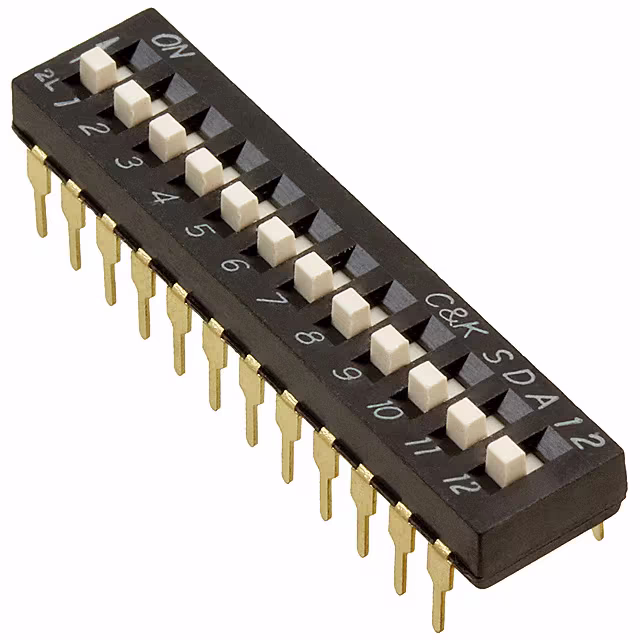

SDA12H1BDSWITCH SLIDE DIP SPST 0.025A 24V |
750 |
|
Datasheet |
SDA | Tube | Active | SPST | 12 | 24VDC | Slide (Standard) | Raised | 25mA | Beryllium Copper | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
A6T-2101SWITCH SLIDE DIP SPST 0.025A 24V |
290 |
|
Datasheet |
A6T | Tray | Active | SPST | 2 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | - | 0.142" (3.60mm) | Through Hole | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|
KAP1102ESWITCH PIANO DIP SPST 0.025A 24V |
813 |
|
Datasheet |
KAP | Tube | Active | SPST | 2 | 24VDC | Piano | Raised | 25mA | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
CFS-0801TBSWITCH SLIDE DIP SPST 0.1A 6V |
4,853 |
|
Datasheet |
CFS | Tape & Reel (TR) | Active | SPST | 8 | 6VDC | Slide (Standard) | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
CFS-0802TBSWITCH SLIDE DIP SPST 0.1A 6V |
1,673 |
|
Datasheet |
CFS | Tape & Reel (TR) | Active | SPST | 8 | 6VDC | Slide (Standard) | Raised | 100mA | Copper Alloy | Gold | 0.169" (4.30mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
EDS03SGRNTR04QSWITCH SLIDE DIP SPST 0.025A 24V |
370 |
|
Datasheet |
EDS | Tape & Reel (TR) | Active | SPST | 3 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.134" (3.40mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
DM04SWITCH SLIDE DIP SPST 0.025A 24V |
1,625 |
|
Datasheet |
DM | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Raised | 25mA | Copper Alloy | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
