| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DM08SWITCH SLIDE DIP SPST 0.025A 24V |
3,080 |
|
Datasheet |
DM | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Raised | 25mA | Copper Alloy | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
EDS01SGRSTR04QSWITCH SLIDE DIP SPST 0.025A 24V |
2,590 |
|
Datasheet |
EDS | Tape & Reel (TR) | Active | SPST | 1 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.134" (3.40mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
DMR08TSWITCH SLIDE DIP SPST 0.025A 24V |
932 |
|
Datasheet |
DM | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
A6SN-3101SWITCH SLIDE DIP SPST 0.025A 24V |
146 |
|
Datasheet |
A6SN | Tube | Active | SPST | 3 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | - | 0.175" (4.45mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
A6T-3104SWITCH SLIDE DIP SPST 0.025A 24V |
247 |
|
Datasheet |
A6T | Tube | Active | SPST | 3 | 24VDC | Slide (Standard) | Raised | 25mA | - | - | 0.165" (4.20mm) | Through Hole | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|
EDS03SGNNTR04QSWITCH SLIDE DIP SPST 0.025A 24V |
3,048 |
|
Datasheet |
EDS | Tape & Reel (TR) | Active | SPST | 3 | 24VDC | Slide (Standard) | Raised | 25mA | Copper Alloy | Gold | 0.150" (3.80mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

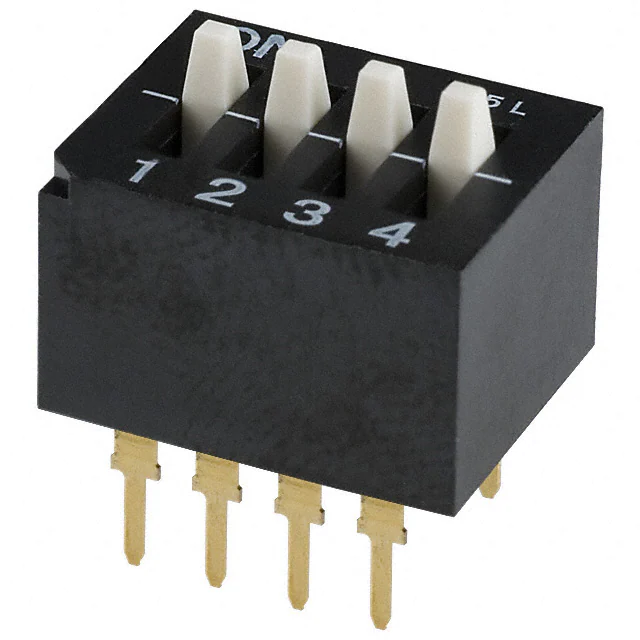

CES-0402MCSWITCH SLIDE DIP SPST 0.1A 6V |
10,054 |
|
Datasheet |
CES | Tube | Active | SPST | 4 | 6VDC | Slide (Standard) | Raised | 100mA | Copper Alloy | Gold | 0.472" (12.00mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
BPA04RBSWITCH PIANO DIP SPST 0.1A 5V |
187 |
|
Datasheet |
BPA | Tube | Active | SPST | 4 | 5VDC | Piano | Raised | 100mA | Beryllium Copper | Gold | 0.287" (7.30mm) | Through Hole, Right Angle | PC Pin | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
A6TR-0104SWITCH PIANO DIP SPST 0.025A 24V |
167 |
|
Datasheet |
A6TR | Tube | Active | SPST | 10 | 24VDC | Piano | Raised | 25mA | - | Gold | 0.197" (5.00mm) | Through Hole, Right Angle | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|

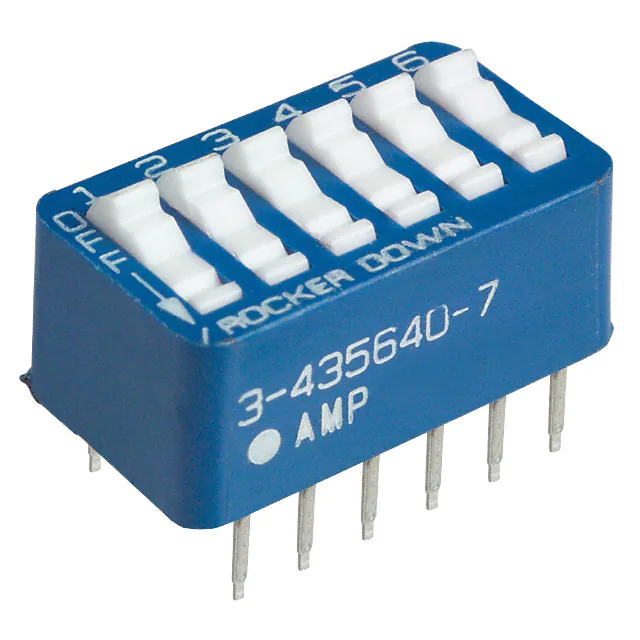

3-5435640-7SWITCH ROCKER DIP SPST 0.06A 5V |
2,822 |
|
Datasheet |
7100 | Tube | Active | SPST | 6 | 5VDC | Rocker | Raised | 60mA | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | -55°C ~ 105°C | 0.100" (2.54mm), Full | Sealed | Yes |
|
1-1825002-4SWITCH SLIDE DIP SPST 0.025A 24V |
11,322 |
|
Datasheet |
ADF | Bulk | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.189" (4.80mm) | Through Hole | PC Pin | -30°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
A6S-2101-HSWITCH SLIDE DIP SPST 0.025A 24V |
278 |
|
Datasheet |
A6S-H | Tube | Active | SPST | 2 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|
A6HF-2102-PSWITCH SLIDE DIP SPST 0.025A 24V |
1,775 |
|
Datasheet |
A6HF | Tape & Reel (TR) | Active | SPST | 2 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|
SDA04H0BDSWITCH SLIDE DIP SPST 0.025A 24V |
990 |
|
Datasheet |
SDA | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.183" (4.65mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
A6S-3102-PHSWITCH SLIDE DIP SPST 0.025A 24V |
3,578 |
|
Datasheet |
A6S-H | Tape & Reel (TR) | Active | SPST | 3 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
|
KE08RTGRSWITCH SLIDE DIP SPST 0.025A 24V |
3,690 |
|
Datasheet |
KE | Tape & Reel (TR) | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | - | Yes |
|
CFS-0500MBSWITCH SLIDE DIP SPST 0.1A 6V |
134 |
|
Datasheet |
CFS | Tube | Active | SPST | 5 | 6VDC | Slide (Standard) | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
A6S-5102-PHSWITCH SLIDE DIP SPST 0.025A 24V |
1,584 |
|
Datasheet |
A6S-H | Tape & Reel (TR) | Active | SPST | 5 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
418121270812SWITCH SLIDE DIP SPST 0.025A 24V |
571 |
|
Datasheet |
WS-DISV | Tape & Reel (TR) | Active | SPST | 12 | 24VDC | Slide (Standard) | Raised | 25mA | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
A6T-5104SWITCH SLIDE DIP SPST 0.025A 24V |
173 |
|
Datasheet |
A6T | Tube | Active | SPST | 5 | 24VDC | Slide (Standard) | Raised | 25mA | - | - | 0.165" (4.20mm) | Through Hole | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
