| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6SR-6104SWITCH PIANO DIP SPST 0.025A 24V |
126 |
|
Datasheet |
A6SR | Tube | Active | SPST | 6 | 24VDC | Piano | Raised | 25mA | - | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|

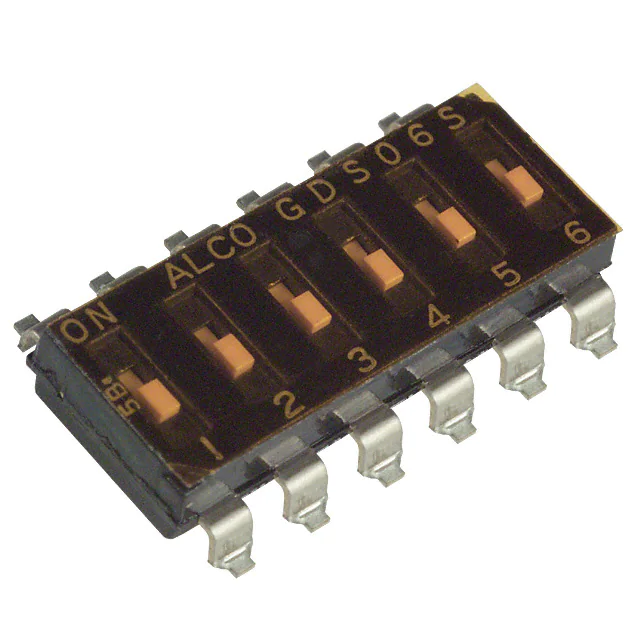

1-1825006-1SWITCH SLIDE DIP SPST 0.025A 24V |
11,378 |
|
Datasheet |
GDS | Tube | Active | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.114" (2.90mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
SDA06H0BDSWITCH SLIDE DIP SPST 0.025A 24V |
1,246 |
|
Datasheet |
SDA | Tube | Active | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.183" (4.65mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
SDA06H1BDSWITCH SLIDE DIP SPST 0.025A 24V |
874 |
|
Datasheet |
SDA | Tube | Active | SPST | 6 | 24VDC | Slide (Standard) | Raised | 25mA | Beryllium Copper | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
A6S-3101-PHSWITCH SLIDE DIP SPST 0.025A 24V |
438 |
|
Datasheet |
A6S-H | Tape & Reel (TR) | Active | SPST | 3 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|

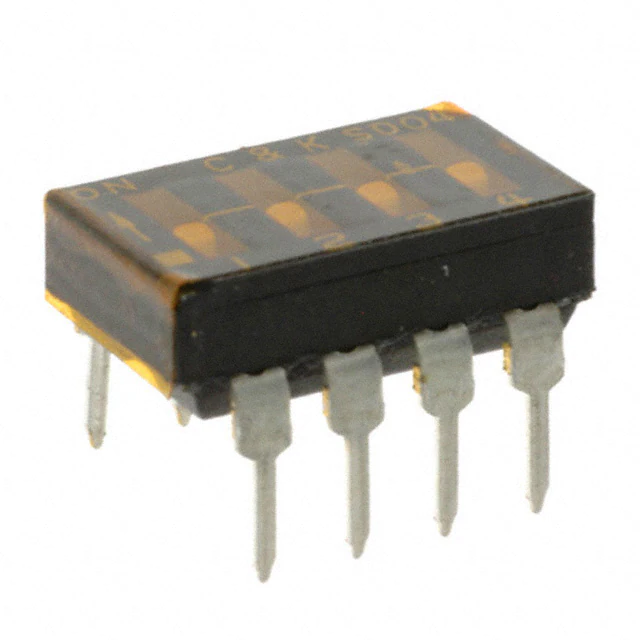

SD04H0BSWITCH SLIDE DIP SPST 0.1A 25V |
167 |
|
Datasheet |
SD | Tube | Active | SPST | 4 | 25VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.178" (4.52mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
A6SN-4101SWITCH SLIDE DIP SPST 0.025A 24V |
8,916 |
|
Datasheet |
A6SN | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | - | 0.175" (4.45mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|

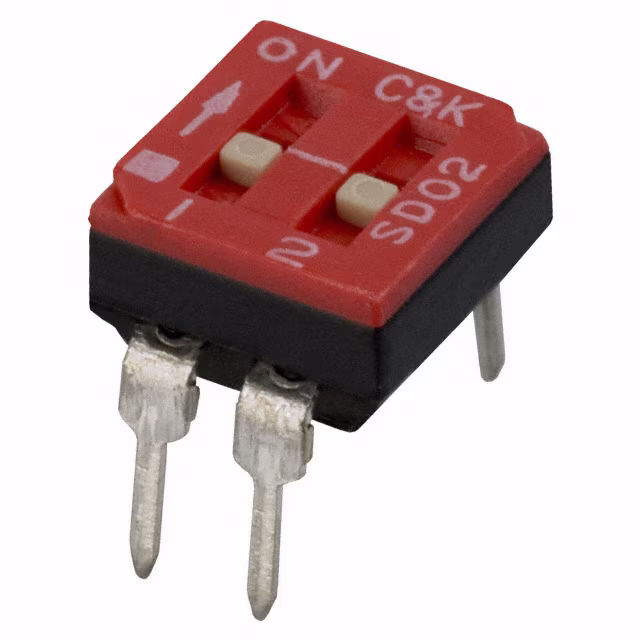

SD02H0BSWITCH SLIDE DIP SPST 0.1A 25V |
1,581 |
|
Datasheet |
SD | Tube | Active | SPST | 2 | 25VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.178" (4.52mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|

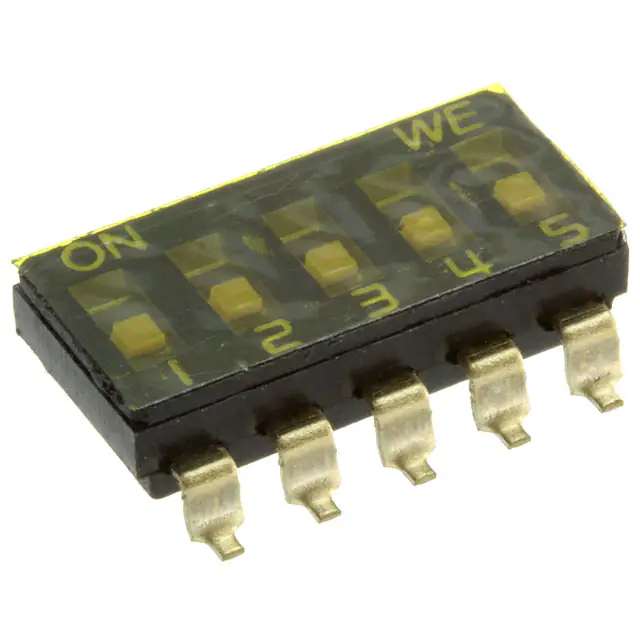

418121160805SWITCH SLIDE DIP SPST 0.025A 24V |
1,518 |
|
Datasheet |
WS-DISV | Tape & Reel (TR) | Active | SPST | 5 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | Gold | 0.138" (3.50mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
SDA04H0BSWITCH SLIDE DIP SPST 0.025A 24V |
1,000 |
|
Datasheet |
SDA | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.183" (4.65mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
CFS-0800MCSWITCH SLIDE DIP SPST 0.1A 6V |
557 |
|
Datasheet |
CFS | Tube | Active | SPST | 8 | 6VDC | Slide (Standard) | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.177" (4.50mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
A6RS-102RF-PSWITCH ROTARY DIP BCD 0.025A 24V |
1,582 |
|
Datasheet |
A6RS | Tape & Reel (TR) | Active | BCD | 10 | 24VDC | Rotary for Tool | Flush, Recessed | 25mA | - | - | 0.185" (4.70mm) | Surface Mount | Gull Wing | -25°C ~ 80°C | 0.100" (2.54mm), Full | - | No |
|
RDS-10S-7229-R-JSMTSWITCH ROTARY DIP BCD 0.1A 50V |
1,589 |
|
Datasheet |
RDS-7229-JSMT | Tube | Active | BCD | 10 | 50VDC | Rotary with Shaft | Raised | 100mA | Copper Alloy | Gold | 0.236" (6.00mm) | Surface Mount | J Lead | -40°C ~ 85°C | 0.100" (2.54mm), Full | IP67 - Dust Tight, Waterproof | No |
|
RDS-10S-7229-S-JSMTSWITCH ROTARY DIP BCD 0.1A 50V |
1,536 |
|
Datasheet |
RDS-7229-JSMT | Tube | Active | BCD | 10 | 50VDC | Rotary with Shaft | Raised | 100mA | Copper Alloy | Gold | 0.236" (6.00mm) | Surface Mount | J Lead | -40°C ~ 85°C | 0.100" (2.54mm), Full | IP67 - Dust Tight, Waterproof | No |
|
A6T-8104SWITCH SLIDE DIP SPST 0.025A 24V |
7,601 |
|
Datasheet |
A6T | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Raised | 25mA | - | - | 0.165" (4.20mm) | Through Hole | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|
DS05-127-2-10BK-SMT-TRSWITCH SLIDE DIP SPST 0.025A 24V |
2,633 |
|
Datasheet |
DS05-127-SMT | Tape & Reel (TR) | Active | SPST | 10 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.094" (2.40mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | - | No |
|

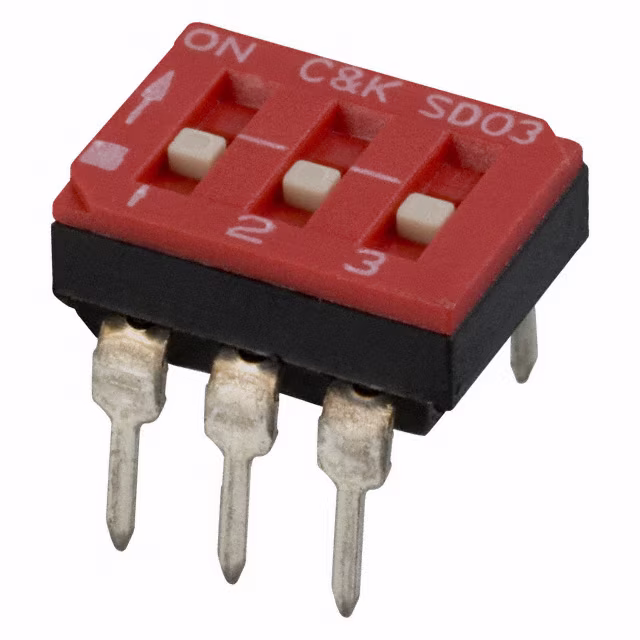

SD03H0BSWITCH SLIDE DIP SPST 0.1A 25V |
1,154 |
|
Datasheet |
SD | Tube | Active | SPST | 3 | 25VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.178" (4.52mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
S-8031SW ROTARY DIP OCT COMP 0.1A 5V |
3,110 |
|
Datasheet |
S-8000 | Bulk | Active | Octal Complement | 8 | 5VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.283" (7.20mm) | Through Hole, Right Angle | PC Pin | -25°C ~ 70°C | 0.100" (2.54mm), Full | - | Yes |
|
A6E-2101-NSWITCH SLIDE DIP SPST 0.025A 24V |
130 |
|
Datasheet |
A6E-N | Tube | Active | SPST | 2 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | Gold | 0.230" (5.85mm) | Through Hole | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|
A6S-5104-HSWITCH SLIDE DIP SPST 0.025A 24V |
1,143 |
|
Datasheet |
A6S-H | Tube | Active | SPST | 5 | 24VDC | Slide (Standard) | Raised | 25mA | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
