| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RDS-10S-74385-SMTSWITCH ROTARY DIP BCD 0.1A 42V |
366 |
|
Datasheet |
RDS-74385-SMT | Tube | Active | BCD | 10 | 42VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.152" (3.85mm) | Surface Mount | Gull Wing | -60°C ~ 125°C | 0.100" (2.54mm), Full | IP67 - Dust Tight, Waterproof | No |
|
JS0108AP4-SSWITCH SLIDE DIP SPST 0.025A 24V |
321 |
|
Datasheet |
JS | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Raised | 25mA | Beryllium Copper | Gold | 0.162" (4.11mm) | Through Hole | PC Pin | -25°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|
A6S-8102-PHSWITCH SLIDE DIP SPST 0.025A 24V |
2,977 |
|
Datasheet |
A6S-H | Tape & Reel (TR) | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
RDS-16S-1055-SMTSWITCH ROTARY DIP HEX 0.025A 24V |
781 |
|
Datasheet |
RDS-1055-SMT | Tube | Active | Hexadecimal | 16 | 24VDC | Rotary for Tool | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.217" (5.50mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

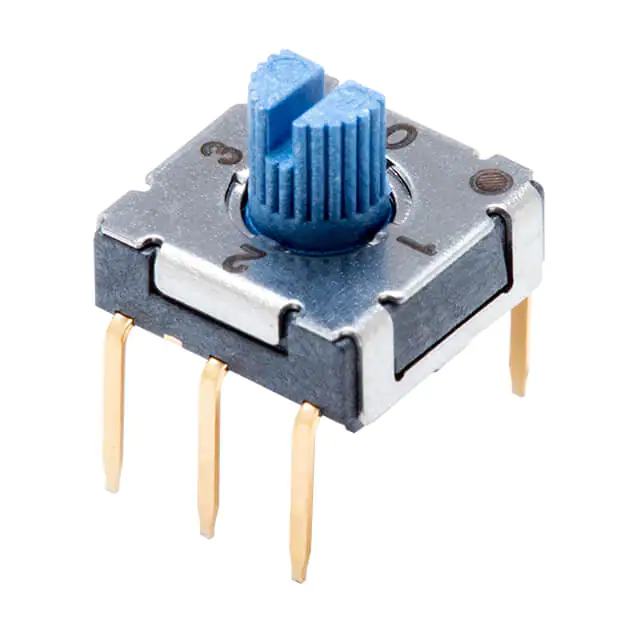

RDS-4S-7229-S-DSWITCH ROTARY DIP BCD 0.1A 50V |
442 |
|
Datasheet |
RDS-7229-D | Tube | Active | BCD | 4 | 50VDC | Rotary with Shaft | Raised | 100mA | Copper Alloy | Gold | 0.232" (5.90mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | IP67 - Dust Tight, Waterproof | No |
|
RDS-16S-1045-SMTSWITCH ROTARY DIP HEX 0.025A 24V |
409 |
|
Datasheet |
RDS-1045-SMT | Tube | Active | Hexadecimal | 16 | 24VDC | Rotary for Tool | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.177" (4.50mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

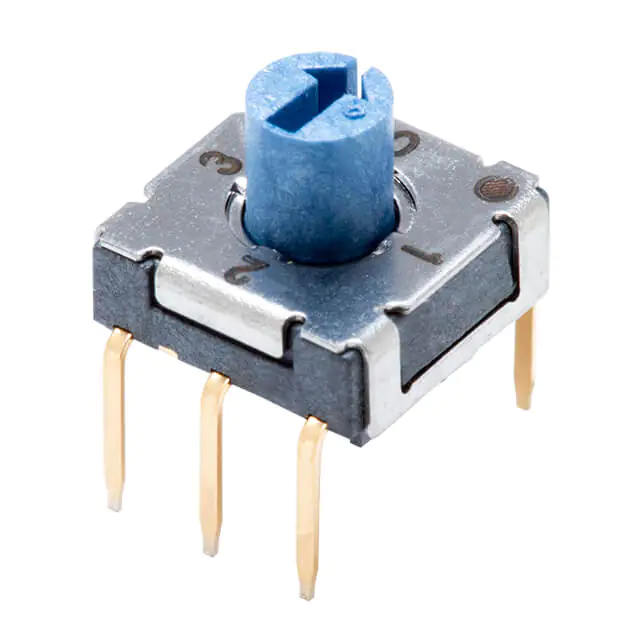

RDS-4S-7229-R-DSWITCH ROTARY DIP BCD 0.1A 50V |
385 |
|
Datasheet |
RDS-7229-D | Tube | Active | BCD | 4 | 50VDC | Rotary with Shaft | Raised | 100mA | Copper Alloy | Gold | 0.232" (5.90mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | IP67 - Dust Tight, Waterproof | No |
|
RDS-16S-7229-S-DSWITCH ROTARY DIP HEX 0.1A 50V |
271 |
|
Datasheet |
RDS-7229-D | Tube | Active | Hexadecimal | 16 | 50VDC | Rotary with Shaft | Raised | 100mA | Copper Alloy | Gold | 0.232" (5.90mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | IP67 - Dust Tight, Waterproof | No |
|
A6TR-8101SWITCH PIANO DIP SPST 0.025A 24V |
276 |
|
Datasheet |
A6TR | Tube | Active | SPST | 8 | 24VDC | Piano | Flush, Recessed | 25mA | - | Gold | 0.197" (5.00mm) | Through Hole, Right Angle | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|
RDS-16S-74385-45A-SMTSWITCH ROTARY DIP HEX 0.1A 42V |
1,233 |
|
Datasheet |
RDS-74385-45A-SMT | Tube | Active | Hexadecimal | 16 | 42VDC | Rotary with Shaft | Raised | 100mA | Copper Alloy | Gold | 0.329" (8.35mm) | Surface Mount | Gull Wing | -60°C ~ 125°C | 0.100" (2.54mm), Full | IP67 - Dust Tight, Waterproof | No |
|
RDS-10S-74385-45A-SMTSWITCH ROTARY DIP BCD 0.1A 42V |
525 |
|
Datasheet |
RDS-74385-45A-SMT | Tube | Active | BCD | 10 | 42VDC | Rotary with Shaft | Raised | 100mA | Copper Alloy | Gold | 0.329" (8.35mm) | Surface Mount | Gull Wing | -60°C ~ 125°C | 0.100" (2.54mm), Full | IP67 - Dust Tight, Waterproof | No |
|
A6HF-2102SWITCH SLIDE DIP SPST 0.025A 24V |
190 |
|
Datasheet |
A6HF | Tube | Active | SPST | 2 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|
RD10RA16RTTSWITCH ROTARY DIP HEX 0.15A 50V |
190 |
|
Datasheet |
RD10 | Tube | Active | Hexadecimal | 16 | 50VDC | Rotary for Tool | Flush, Recessed | 150mA | Copper Alloy | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
RD10RA16CTTSW ROTARY DIP HEX COMP 0.15A 50V |
169 |
|
Datasheet |
RD10 | Tube | Active | Hexadecimal Complement | 16 | 50VDC | Rotary for Tool | Flush, Recessed | 150mA | Copper Alloy | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
A6S-8102-HSWITCH SLIDE DIP SPST 0.025A 24V |
3,768 |
|
Datasheet |
A6S-H | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
A6SN-6104SWITCH SLIDE DIP SPST 0.025A 24V |
1,425 |
|
Datasheet |
A6SN | Tube | Active | SPST | 6 | 24VDC | Slide (Standard) | Raised | 25mA | - | - | 0.214" (5.45mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
A6HF-4102-PMSWITCH SLIDE DIP SPST 0.025A 24V |
1,108 |
|
Datasheet |
A6HF | Tape & Reel (TR) | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|

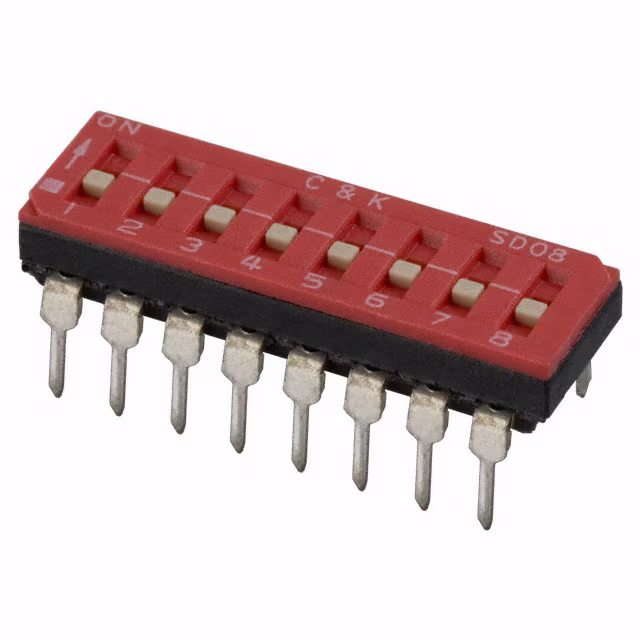

SD08H0BSWITCH SLIDE DIP SPST 0.1A 25V |
230 |
|
Datasheet |
SD | Tube | Active | SPST | 8 | 25VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.178" (4.52mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
|
RD10RA10RTTSWITCH ROTARY DIP BCD 0.15A 50V |
190 |
|
Datasheet |
RD10 | Tube | Active | BCD | 10 | 50VDC | Rotary for Tool | Flush, Recessed | 150mA | Copper Alloy | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
A6TN-9104SWITCH SLIDE DIP SPST 0.025A 24V |
164 |
|
Datasheet |
A6TN | Tube | Active | SPST | 9 | 24VDC | Slide (Standard) | Raised | 25mA | - | - | 0.228" (5.80mm) | Through Hole | PC Pin | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
