DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
90HBW08PRTSWITCH SLIDE DIP SPST 0.025A 24V |
4,187 |
|
Datasheet |
90HB | Tape & Reel (TR) | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.190" (4.83mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
FR02KC16P-RSW ROTARY DIP HEX COMP 0.1A 5V |
382 |
|
Datasheet |
FR02 | Tape & Reel (TR) | Active | Hexadecimal Complement | 16 | 5VDC | Rotary with Shaft | Raised | 100mA | Copper Alloy | Gold | 0.430" (10.92mm) | Surface Mount | Gull Wing | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

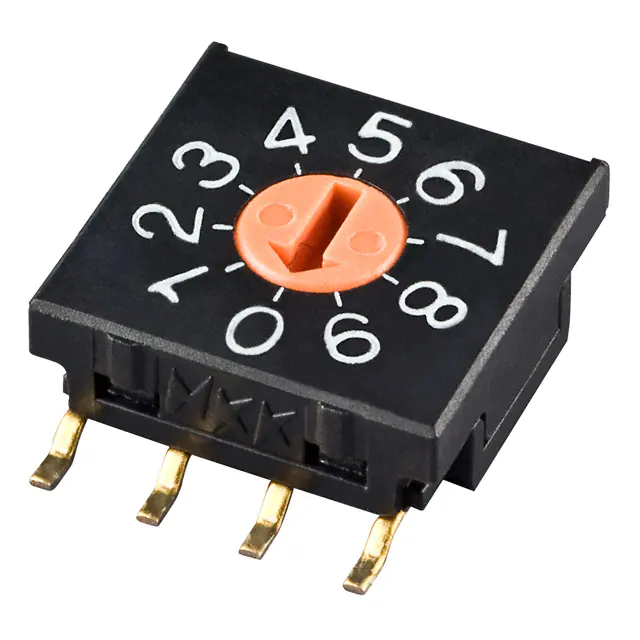

FR02FR10P-RSWITCH ROTARY DIP BCD 0.1A 5V |
828 |
|
Datasheet |
FR02 | Tape & Reel (TR) | Active | BCD | 10 | 5VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.154" (3.90mm) | Surface Mount | Gull Wing | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
A6RV-162RFSWITCH ROTARY DIP HEX 0.025A 24V |
779 |
|
Datasheet |
A6RV | Tube | Active | Hexadecimal | 16 | 24VDC | Rotary for Tool | Flush, Recessed | 25mA | - | - | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | -25°C ~ 80°C | 0.100" (2.54mm), Full | Sealed | No |
|
90HBJ04PTSWITCH SLIDE DIP SPST 0.025A 24V |
1,891 |
|
Datasheet |
90HB | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.220" (5.59mm) | Surface Mount | J Lead | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
78J04TSWITCH SLIDE DIP SPDT 0.15A 30V |
2,827 |
|
Datasheet |
78 | Tube | Active | SPDT | 4 | 30VDC | Slide (Standard) | Raised | 150mA | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

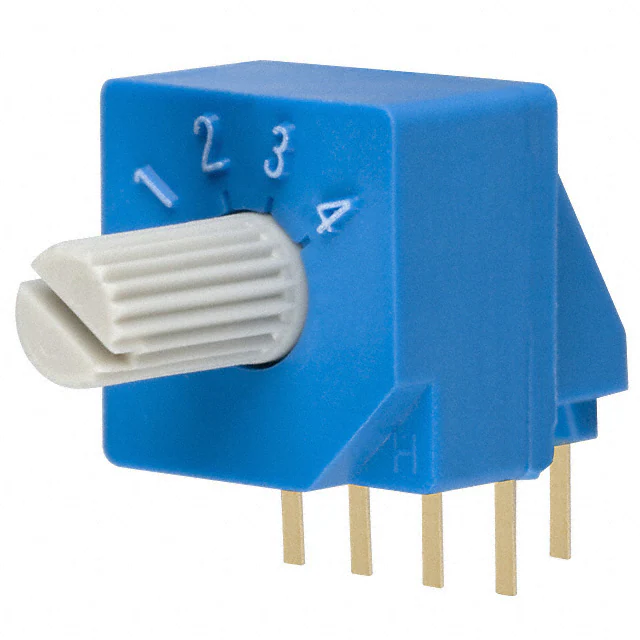

S-2151SWITCH ROTARY DIP SP4T 0.1A 5V |
191 |
|
Datasheet |
S-2050 | Bulk | Active | SP4T | 4 | 5VDC | Rotary with Shaft | Raised | 100mA | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | -25°C ~ 70°C | 0.100" (2.54mm), Full | - | Yes |
|
P65SMT703SWITCH ROTARY DIP HEX 0.2A 50V |
2,936 |
|
Datasheet |
P65 | Tube | Active | Hexadecimal | 16 | 50VDC | Rotary for Tool | Flush, Recessed | 200mA | Copper Alloy | Gold | 0.268" (6.80mm) | Surface Mount | Gull Wing | -60°C ~ 125°C | 0.100" (2.54mm), Full | - | Yes |
|
94HAB10WRTSWITCH ROTARY DIP BCD 0.1A 50V |
6,551 |
|
Datasheet |
94H | Tape & Reel (TR) | Active | BCD | 10 | 50VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.225" (5.72mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Sealed | Yes |
|
RTE1602N44SWITCH ROTARY DIP HEX 0.1A 30V |
940 |
|
Datasheet |
RTE | Tube | Active | Hexadecimal | 16 | 30VDC | Rotary with Shaft | Raised | 100mA | Bronze | Gold | 0.321" (8.15mm) | Through Hole | PC Pin | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

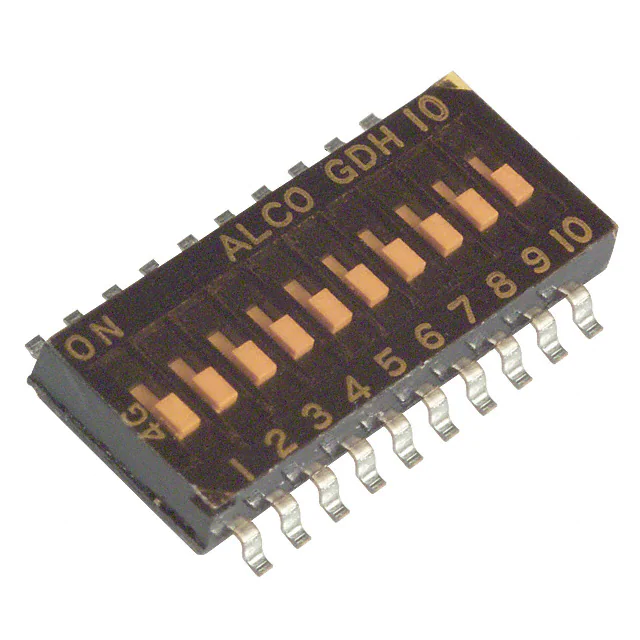

1-1571983-3SWITCH SLIDE DIP SPST 0.025A 24V |
19,656 |
|
Datasheet |
GDH | Tube | Active | SPST | 10 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|
78J02TSWITCH SLIDE DIP SPDT 0.15A 30V |
235 |
|
Datasheet |
78 | Tube | Active | SPDT | 2 | 30VDC | Slide (Standard) | Raised | 150mA | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
90HBW02PRTSWITCH SLIDE DIP SPST 0.025A 24V |
7,836 |
|
Datasheet |
90HB | Tape & Reel (TR) | Active | SPST | 2 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.190" (4.83mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
97R08STSWITCH SLIDE DIP SPST 0.025A 24V |
4,226 |
|
Datasheet |
97 | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.061" (1.55mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|
94HAB08WTSWITCH ROTARY DIP OCTAL 0.1A 50V |
1,132 |
|
Datasheet |
94H | Tube | Active | Octal | 8 | 50VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.225" (5.72mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Sealed | Yes |
|
94HAB08TSWITCH ROTARY DIP OCTAL 0.1A 50V |
1,545 |
|
Datasheet |
94H | Tube | Active | Octal | 8 | 50VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.225" (5.72mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Sealed | Yes |
|
A6R-161RFSWITCH ROTARY DIP HEX 0.025A 24V |
240 |
|
Datasheet |
A6R | Tube | Active | Hexadecimal | 16 | 24VDC | Rotary for Tool | Flush, Recessed | 25mA | - | - | 0.177" (4.50mm) | Through Hole | PC Pin | -25°C ~ 80°C | 0.100" (2.54mm), Full | Sealed | No |
|

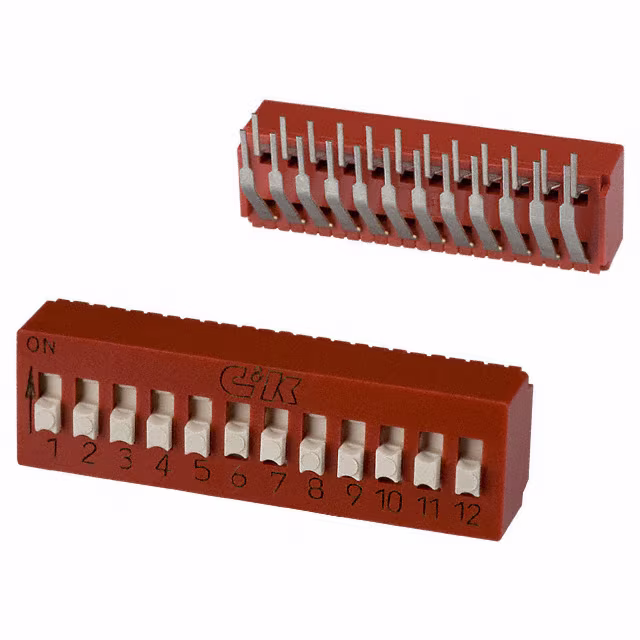

BD12AVSWITCH SLIDE DIP SPST 0.1A 5V |
218 |
|
Datasheet |
BD | Tube | Active | SPST | 12 | 5VDC | Slide (Standard) | Raised | 100mA | Phosphor Bronze | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
90HBW06PRTSWITCH SLIDE DIP SPST 0.025A 24V |
5,920 |
|
Datasheet |
90HB | Tape & Reel (TR) | Active | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.190" (4.83mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
428521320816SWITCH ROTARY DIP HEX 0.15A 24V |
1,743 |
|
Datasheet |
WS-ROSV | Tape & Reel (TR) | Active | Hexadecimal | 16 | 24VDC | Rotary for Tool | Flush, Recessed | 150mA | - | Gold | 0.268" (6.80mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | IP67 - Dust Tight, Waterproof | Yes |
