DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6SN-8104SWITCH SLIDE DIP SPST 0.025A 24V |
6,044 |
|
Datasheet |
A6SN | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Raised | 25mA | - | - | 0.214" (5.45mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
76RSB04STSWITCH ROCKER DIP SPST 0.15A 30V |
2,916 |
|
Datasheet |
76 | Tube | Active | SPST | 4 | 30VDC | Rocker | Flush, Recessed | 150mA | Copper Alloy | Gold | 0.292" (7.41mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
90B02STSWITCH SLIDE DIP SPST 0.025A 24V |
3,710 |
|
Datasheet |
90B | Tube | Active | SPST | 2 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.195" (4.95mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
RTF16R2JSWITCH ROTARY DIP HEX 0.1A 5V |
860 |
|
Datasheet |
RTF | Tube | Active | Hexadecimal | 16 | 5VDC | Rotary for Tool | Flush, Recessed | 100mA | Phosphor Bronze | Gold | 0.118" (3.00mm) | Surface Mount | J Lead | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
76SB05STSWITCH ROCKER DIP SPST 0.15A 30V |
4,306 |
|
Datasheet |
76 | Tube | Active | SPST | 5 | 30VDC | Rocker | Raised | 150mA | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
A6RS-102RS-PSWITCH ROTARY DIP BCD 0.025A 24V |
681 |
|
Datasheet |
A6RS | Tape & Reel (TR) | Active | BCD | 10 | 24VDC | Rotary with Shaft | Raised | 25mA | - | - | 0.472" (12.00mm) | Surface Mount | Gull Wing | -25°C ~ 80°C | 0.100" (2.54mm), Full | - | No |
|
76SB06TSWITCH ROCKER DIP SPST 0.15A 30V |
5,432 |
|
Datasheet |
76 | Tube | Active | SPST | 6 | 30VDC | Rocker | Raised | 150mA | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
A6RS-162RFSWITCH ROTARY DIP HEX 0.025A 24V |
3,664 |
|
Datasheet |
A6RS | Tube | Active | Hexadecimal | 16 | 24VDC | Rotary for Tool | Flush, Recessed | 25mA | - | - | 0.185" (4.70mm) | Surface Mount | Gull Wing | -25°C ~ 80°C | 0.100" (2.54mm), Full | - | No |
|
78B10TSWITCH SLIDE DIP SPST 0.15A 30V |
310 |
|
Datasheet |
78 | Tube | Active | SPST | 10 | 30VDC | Slide (Standard) | Raised | 150mA | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
DRS7016CSWITCH ROTARY DIP HEX 0.03A 15V |
529 |
|
Datasheet |
DR | Tube | Active | Hexadecimal | 16 | 15VDC | Rotary for Tool | Flush, Recessed | 30mA | - | Gold | 0.161" (4.10mm) | Through Hole | PC Pin | -25°C ~ 85°C | 0.100" (2.54mm), Full | Process Sealed | Yes |
|
P25SMT101SWITCH ROTARY DIP BCD 0.1A 42V |
991 |
|
Datasheet |
P25 | Tube | Active | BCD | 10 | 42VDC | Rotary for Tool | Flush, Recessed | 100mA | - | Gold | 0.098" (2.50mm) | Surface Mount | Gull Wing | -50°C ~ 125°C | 0.100" (2.54mm), Full | - | Yes |
|
A6D-8103SWITCH SLIDE DIP SPST 0.03A 30V |
306 |
|
Datasheet |
A6D | Tube | Active | SPST | 8 | 30VDC | Slide (Standard) | Raised | 30mA | - | Gold | 0.213" (5.40mm) | Through Hole | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | IP64 - Dust Tight, Water Resistant | Yes |
|
1825008-2SWITCH ROTARY DIP BCD 0.4VA 20V |
2,067 |
|
Datasheet |
DRD | Tube | Active | BCD | 10 | 20VAC/DC | Rotary for Tool | Flush, Recessed | 0.4VA | Copper Alloy | Gold | 0.413" (10.50mm) | Through Hole, Right Angle | PC Pin | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|

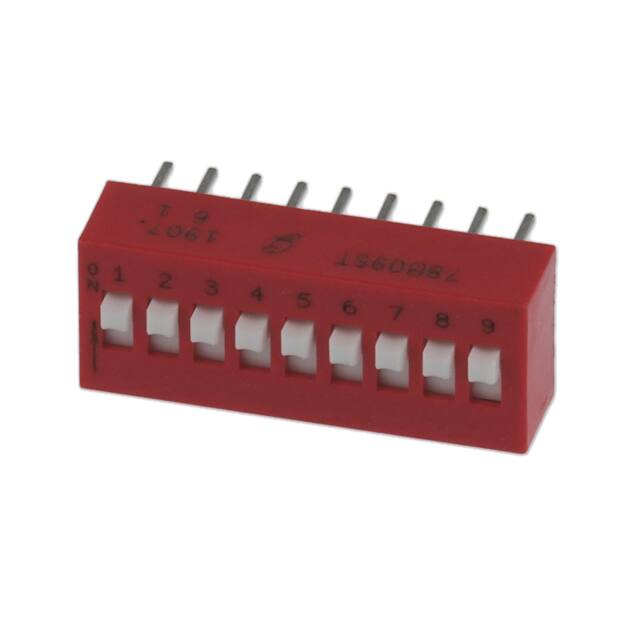

78B09STSWITCH SLIDE DIP SPST 0.15A 30V |
5,290 |
|
Datasheet |
78 | Tube | Active | SPST | 9 | 30VDC | Slide (Standard) | Raised | 150mA | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
|
76SB06STSWITCH ROCKER DIP SPST 0.15A 30V |
2,083 |
|
Datasheet |
76 | Tube | Active | SPST | 6 | 30VDC | Rocker | Raised | 150mA | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
78RB08STSWITCH SLIDE DIP SPST 0.15A 30V |
4,678 |
|
Datasheet |
78 | Tube | Active | SPST | 8 | 30VDC | Slide (Standard) | Flush, Recessed | 150mA | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
78F01TSWITCH SLIDE DIP DPST 0.15A 30V |
1,257 |
|
Datasheet |
78 | Tube | Active | DPST | 1 | 30VDC | Slide (Standard) | Raised | 150mA | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
94HAB10WTSWITCH ROTARY DIP BCD 0.1A 50V |
11,510 |
|
Datasheet |
94H | Tube | Active | BCD | 10 | 50VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.225" (5.72mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Sealed | Yes |
|
76PSB05TSWITCH PIANO DIP SPST 0.15A 30V |
3,658 |
|
Datasheet |
76 | Tube | Active | SPST | 5 | 30VDC | Piano | Raised | 150mA | Copper Alloy | Gold | 0.301" (7.65mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
76PSB03STSWITCH PIANO DIP SPST 0.15A 30V |
7,016 |
|
Datasheet |
76 | Tube | Active | SPST | 3 | 30VDC | Piano | Raised | 150mA | Copper Alloy | Gold | 0.301" (7.65mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
