DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

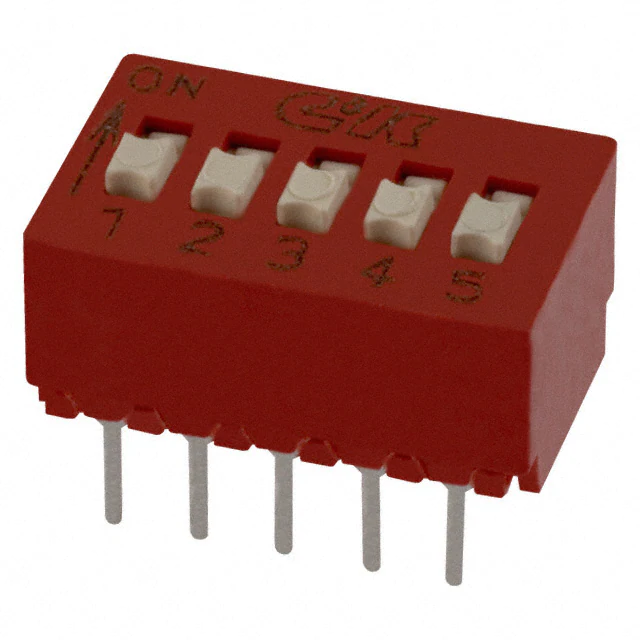

BD05SWITCH SLIDE DIP SPST 0.1A 5V |
1,835 |
|
Datasheet |
BD | Tube | Active | SPST | 5 | 5VDC | Slide (Standard) | Raised | 100mA | Phosphor Bronze | Gold | 0.297" (7.54mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|

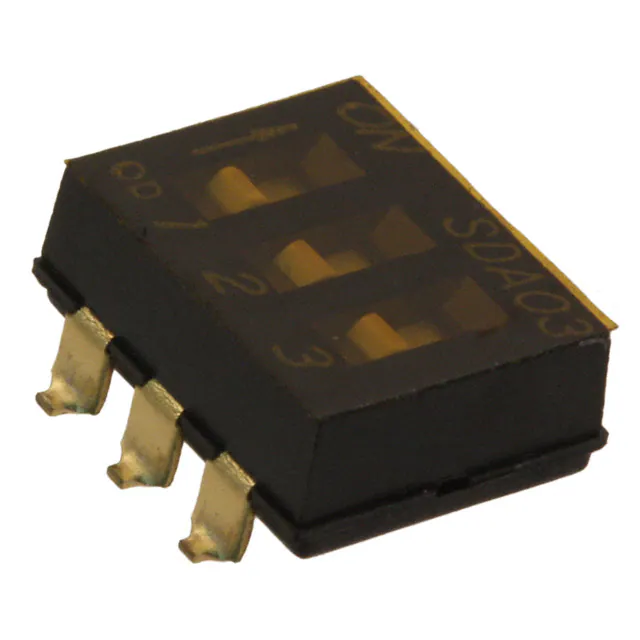

SDA03H0SBRSWITCH SLIDE DIP SPST 0.025A 24V |
11,340 |
|
Datasheet |
SDA | Tape & Reel (TR) | Active | SPST | 3 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
KAN1106RTSWITCH SLIDE DIP SPST 0.025A 24V |
4,804 |
|
Datasheet |
KAN | Tube | Active | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|
418121270808SWITCH SLIDE DIP SPST 0.025A 24V |
9,190 |
|
Datasheet |
WS-DISV | Tape & Reel (TR) | Active | SPST | 8 | 24VDC | Slide (Standard) | Raised | 25mA | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

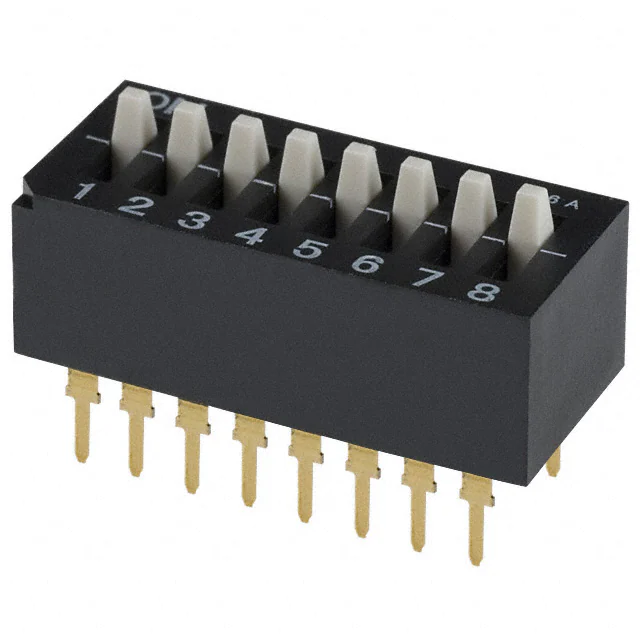

CES-0802MCSWITCH SLIDE DIP SPST 0.1A 6V |
2,769 |
|
Datasheet |
CES | Tube | Active | SPST | 8 | 6VDC | Slide (Standard) | Raised | 100mA | Copper Alloy | Gold | 0.472" (12.00mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
DHN04TVSWITCH SLIDE DIP SPST 0.025A 24V |
1,908 |
|
Datasheet |
DHN | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Phosphor Bronze | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|

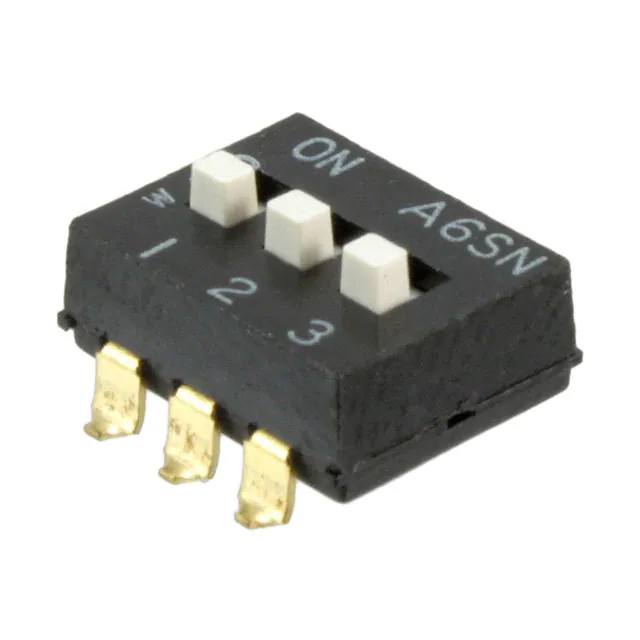

A6SN-3104SWITCH SLIDE DIP SPST 0.025A 24V |
180 |
|
Datasheet |
A6SN | Tube | Active | SPST | 3 | 24VDC | Slide (Standard) | Raised | 25mA | - | - | 0.214" (5.45mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
BPA03BSWITCH PIANO DIP SPST 0.1A 5V |
918 |
|
Datasheet |
BPA | Tube | Active | SPST | 3 | 5VDC | Piano | Raised | 100mA | Beryllium Copper | Gold | 0.287" (7.30mm) | Through Hole, Right Angle | PC Pin | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|

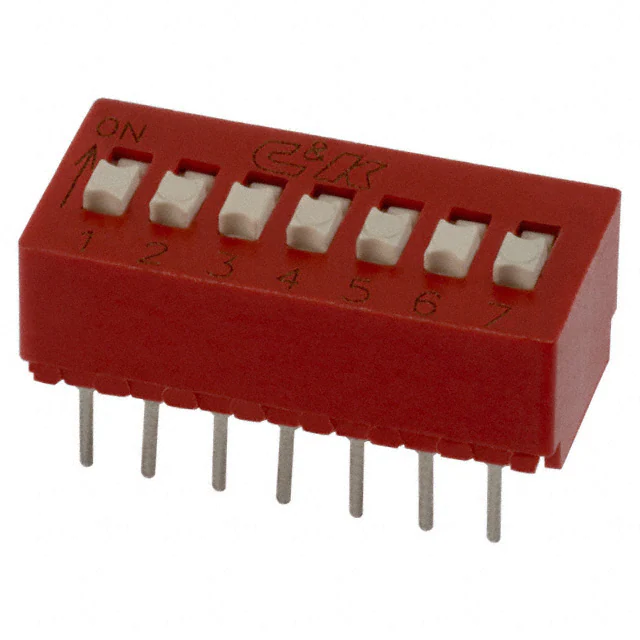

BD07SWITCH SLIDE DIP SPST 0.1A 5V |
793 |
|
Datasheet |
BD | Tube | Active | SPST | 7 | 5VDC | Slide (Standard) | Raised | 100mA | Phosphor Bronze | Gold | 0.297" (7.54mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|

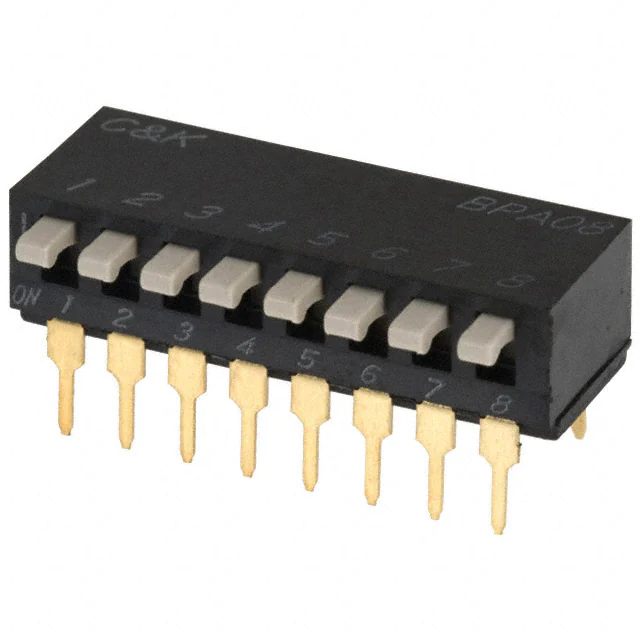

BPA08BSWITCH PIANO DIP SPST 0.1A 5V |
7,967 |
|
Datasheet |
BPA | Tube | Active | SPST | 8 | 5VDC | Piano | Raised | 100mA | Beryllium Copper | Gold | 0.287" (7.30mm) | Through Hole, Right Angle | PC Pin | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|

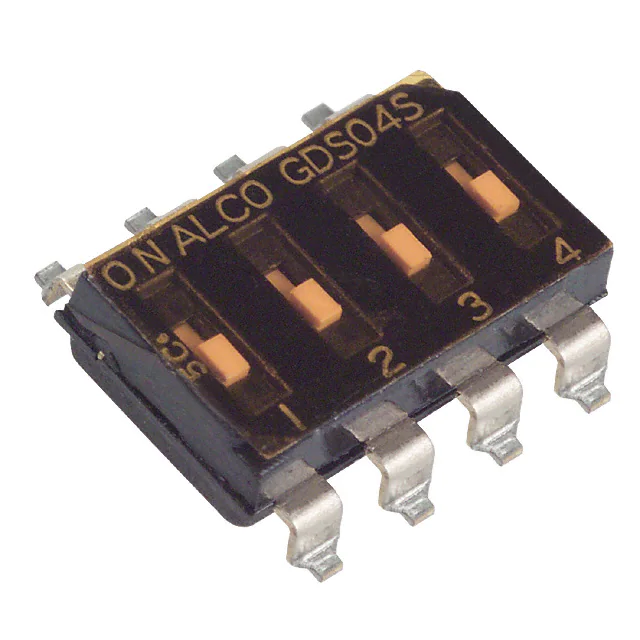

1825006-7SWITCH SLIDE DIP SPST 0.025A 24V |
9,234 |
|
Datasheet |
GDS | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.114" (2.90mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
A6S-5102-HSWITCH SLIDE DIP SPST 0.025A 24V |
707 |
|
Datasheet |
A6S-H | Tube | Active | SPST | 5 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
A6H-2101-R100SWITCH SLIDE DIP SPST 0.025A 24V |
1,170 |
|
Datasheet |
A6H | Tape & Reel (TR) | Active | SPST | 2 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | - | 0.061" (1.55mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.050" (1.27mm), Half | - | No |
|
RTE1602V44SWITCH ROTARY DIP HEX 0.1A 30V |
2,918 |
|
Datasheet |
RTE | Bulk | Active | Hexadecimal | 16 | 30VDC | Rotary with Shaft | Raised | 100mA | Bronze | Gold | 0.335" (8.50mm) | Through Hole, Right Angle | PC Pin | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

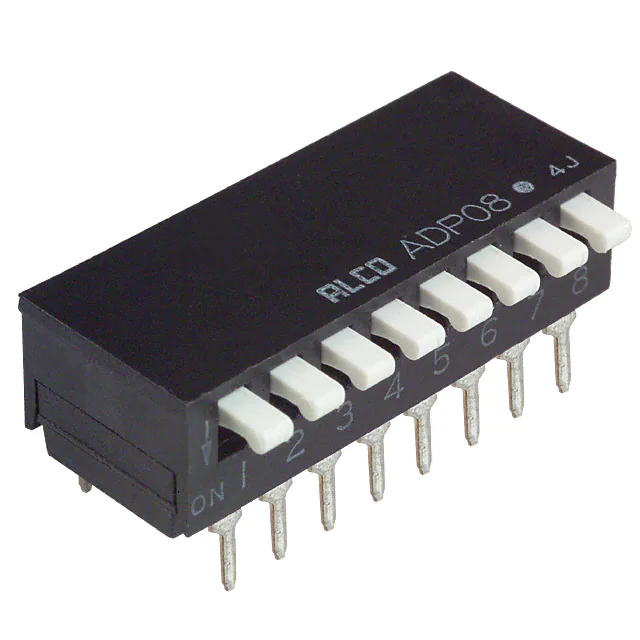

2-1571999-6SWITCH PIANO DIP SPST 0.025A 24V |
1,231 |
|
Datasheet |
ADP | Tube | Active | SPST | 8 | 24VDC | Piano | Raised | 25mA | Copper Alloy | Gold | 0.287" (7.30mm) | Through Hole, Right Angle | PC Pin | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|

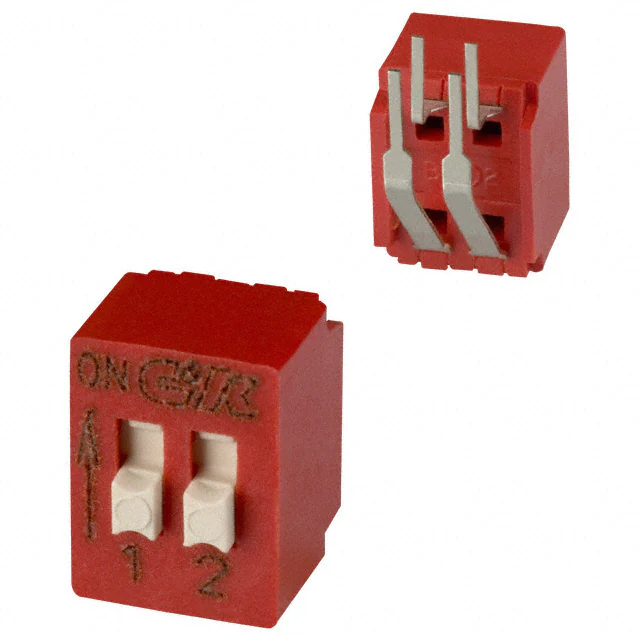

BD02AVSWITCH SLIDE DIP SPST 0.1A 5V |
4,651 |
|
Datasheet |
BD | Tube | Active | SPST | 2 | 5VDC | Slide (Standard) | Raised | 100mA | Phosphor Bronze | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|

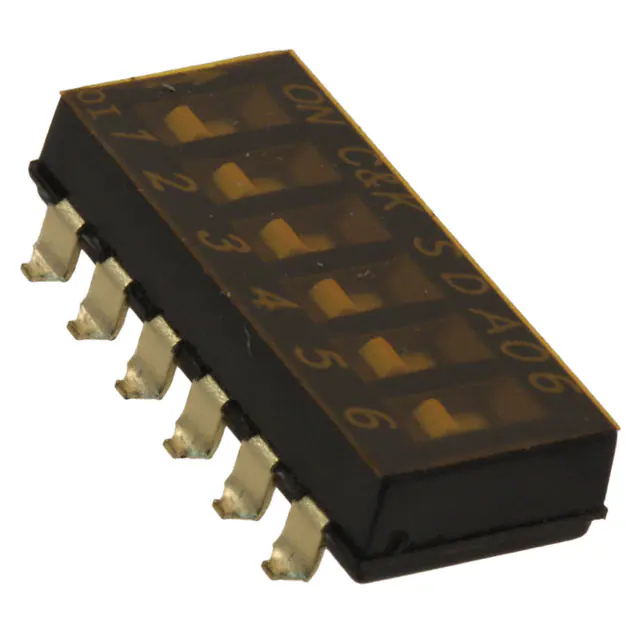

SDA06H0SBRSWITCH SLIDE DIP SPST 0.025A 24V |
4,583 |
|
Datasheet |
SDA | Tape & Reel (TR) | Active | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
S-2031ASW ROTARY DIP BCD COMP 0.1A 5V |
1,355 |
|
Datasheet |
S-2000A | Bulk | Active | BCD Complement | 10 | 5VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
BD04AVSWITCH SLIDE DIP SPST 0.1A 5V |
2,819 |
|
Datasheet |
BD | Tube | Active | SPST | 4 | 5VDC | Slide (Standard) | Raised | 100mA | Phosphor Bronze | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
A6S-8104-HSWITCH SLIDE DIP SPST 0.025A 24V |
74,405 |
|
Datasheet |
A6S-H | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Raised | 25mA | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
