DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KAS1108ETSWITCH SLIDE DIP SPST 0.025A 24V |
1,758 |
|
Datasheet |
KAS | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Raised | 25mA | Phosphor Bronze | Gold | 0.275" (6.99mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
SDA02H1SBDRSWITCH SLIDE DIP SPST 0.025A 24V |
35,986 |
|
Datasheet |
SDA | Tape & Reel (TR) | Active | SPST | 2 | 24VDC | Slide (Standard) | Raised | 25mA | Beryllium Copper | Gold | 0.214" (5.45mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
1825057-9SWITCH SLIDE DIP SPST 0.1A 24V |
6,819 |
|
Datasheet |
ADE | Tube | Active | SPST | 10 | 24VDC | Slide (Standard) | Raised | 100mA | Copper Alloy | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
A6S-4101-HSWITCH SLIDE DIP SPST 0.025A 24V |
2,695 |
|
Datasheet |
A6S-H | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|

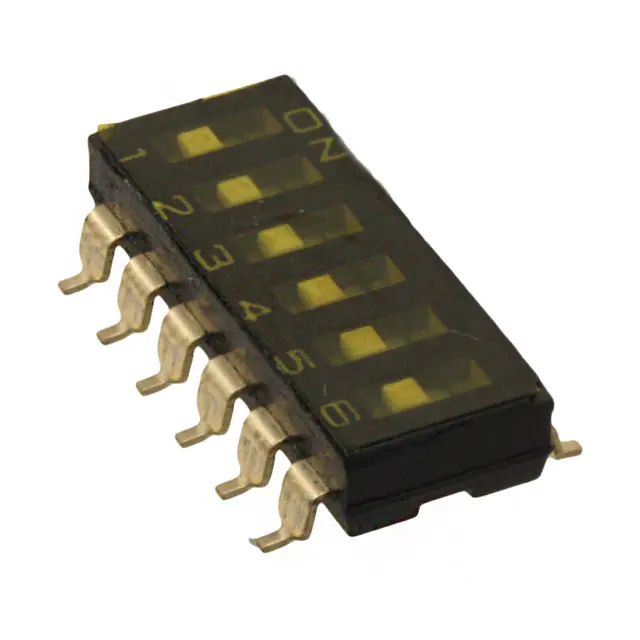

A6S-6102-PHSWITCH SLIDE DIP SPST 0.025A 24V |
3,792 |
|
Datasheet |
A6S-H | Tape & Reel (TR) | Active | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|

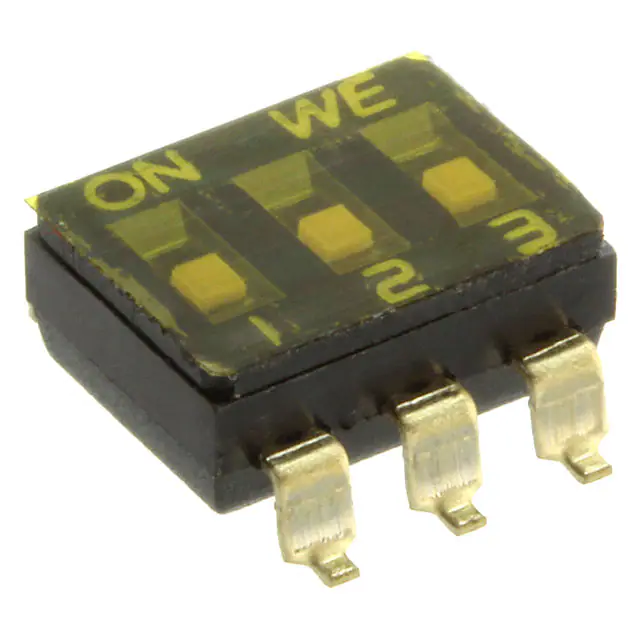

418121160803SWITCH SLIDE DIP SPST 0.025A 24V |
1,391 |
|
Datasheet |
WS-DISV | Tape & Reel (TR) | Active | SPST | 3 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | Gold | 0.138" (3.50mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|

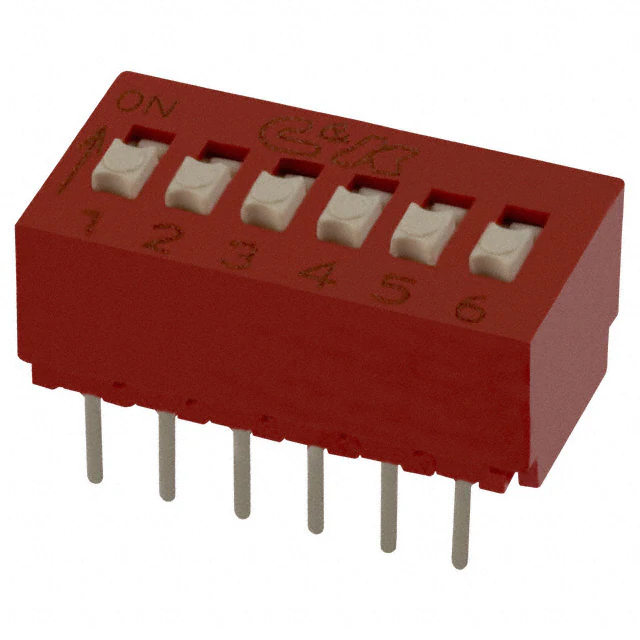

BD06SWITCH SLIDE DIP SPST 0.1A 5V |
10,366 |
|
Datasheet |
BD | Tube | Active | SPST | 6 | 5VDC | Slide (Standard) | Raised | 100mA | Phosphor Bronze | Gold | 0.297" (7.54mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|

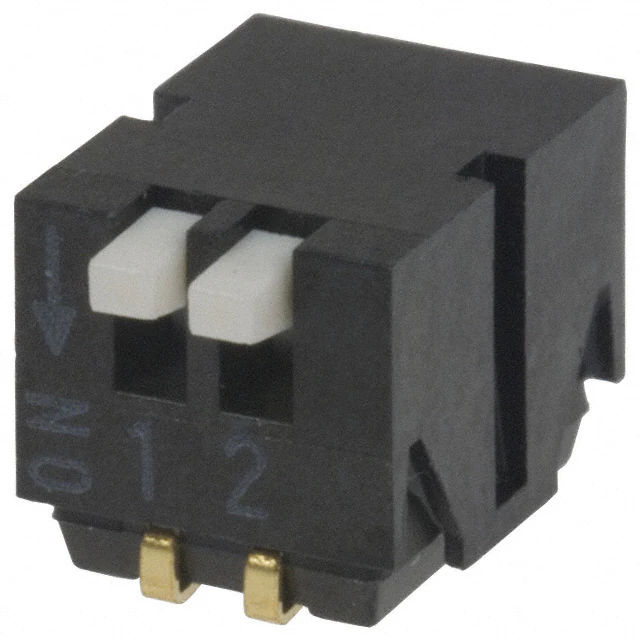

CHP-021TASWITCH PIANO DIP SPST 0.1A 6V |
2,153 |
|
Datasheet |
CHP | Tape & Reel (TR) | Active | SPST | 2 | 6VDC | Piano | Raised | 100mA | Copper Alloy | Gold | 0.181" (4.60mm) | Surface Mount, Right Angle | J Lead | -40°C ~ 85°C | 0.050" (1.27mm), Half | - | No |
|
KAD08LHGTSWITCH SLIDE DIP SPST 0.1A 50V |
133 |
|
Datasheet |
KAD | Tube | Active | SPST | 8 | 50VDC | Slide (Standard) | Raised | 100mA | - | Gold | 0.146" (3.70mm) | Through Hole | PC Pin | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
A6SR-8104-PSWITCH PIANO DIP SPST 0.025A 24V |
4,969 |
|
Datasheet |
A6SR | Tape & Reel (TR) | Active | SPST | 8 | 24VDC | Piano | Raised | 25mA | - | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|

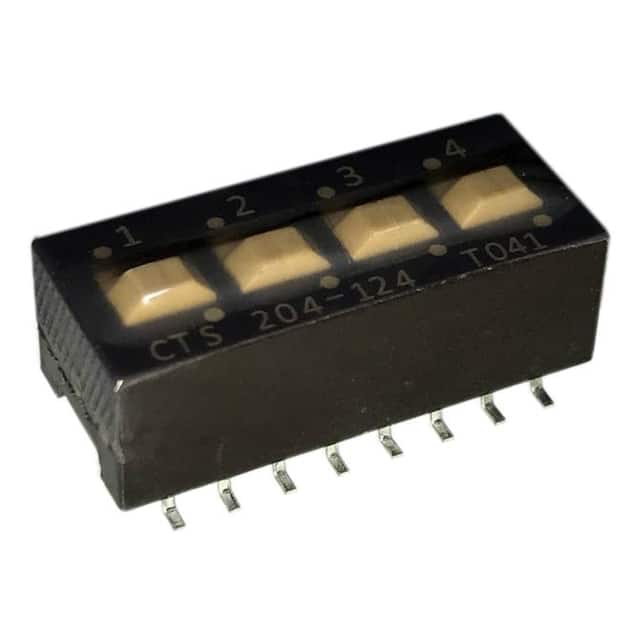

204-124STSWITCH SLIDE DIP SPDT 0.05A 24V |
1,257 |
|
Datasheet |
204 | Tube | Active | SPDT | 4 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
|
A6SN-3101-PSWITCH SLIDE DIP SPST 0.025A 24V |
2,036 |
|
Datasheet |
A6SN | Tape & Reel (TR) | Active | SPST | 3 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | - | 0.175" (4.45mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
A6S-1102-HSWITCH SLIDE DIP SPST 0.025A 24V |
2,886 |
|
Datasheet |
A6S-H | Tube | Active | SPST | 1 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
418217270902ASWITCH SLIDE DIP SPST 0.025A 24V |
322 |
|
Datasheet |
WS-DITU | Tube | Active | SPST | 2 | 24VDC | Slide (Standard) | Raised | 25mA | Copper Alloy | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

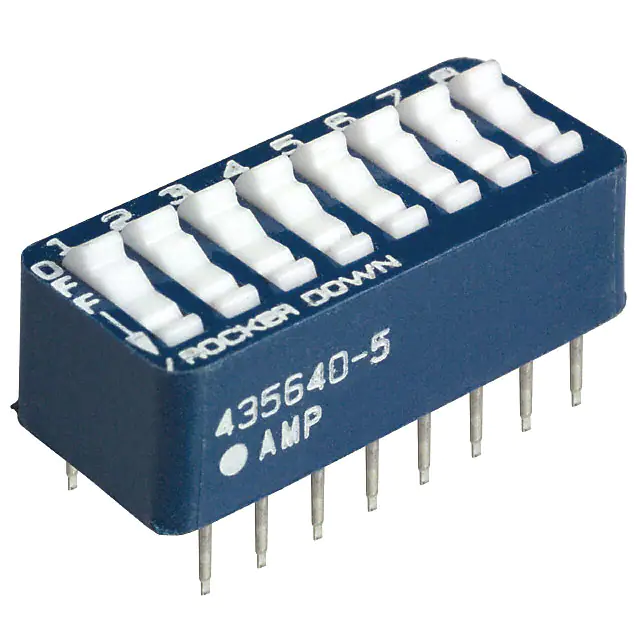

5435640-5SWITCH ROCKER DIP SPST 0.06A 5V |
5,074 |
|
Datasheet |
7100 | Tube | Active | SPST | 8 | 5VDC | Rocker | Raised | 60mA | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | -55°C ~ 105°C | 0.100" (2.54mm), Full | - | No |
|
418121160804SWITCH SLIDE DIP SPST 0.025A 24V |
3,256 |
|
Datasheet |
WS-DISV | Tape & Reel (TR) | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | Gold | 0.138" (3.50mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
SDA04H1SBDRSWITCH SLIDE DIP SPST 0.025A 24V |
43,070 |
|
Datasheet |
SDA | Tape & Reel (TR) | Active | SPST | 4 | 24VDC | Slide (Standard) | Raised | 25mA | Beryllium Copper | Gold | 0.214" (5.45mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

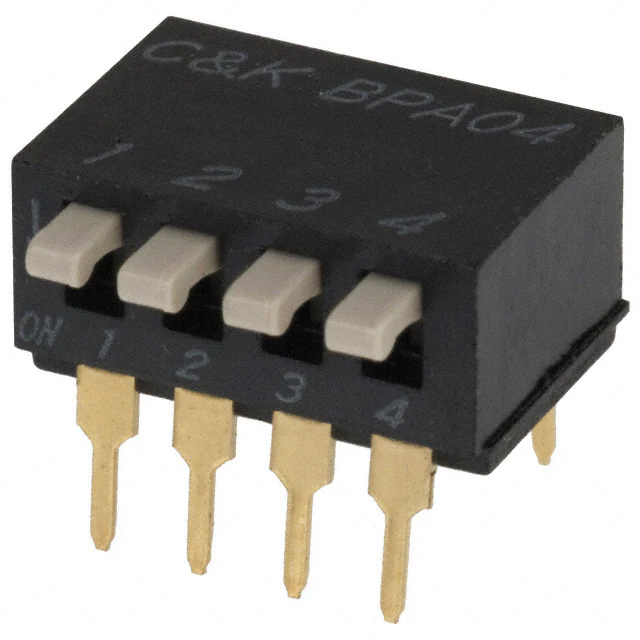

BPA04BSWITCH PIANO DIP SPST 0.1A 5V |
21,519 |
|
Datasheet |
BPA | Tube | Active | SPST | 4 | 5VDC | Piano | Raised | 100mA | Beryllium Copper | Gold | 0.287" (7.30mm) | Through Hole, Right Angle | PC Pin | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|

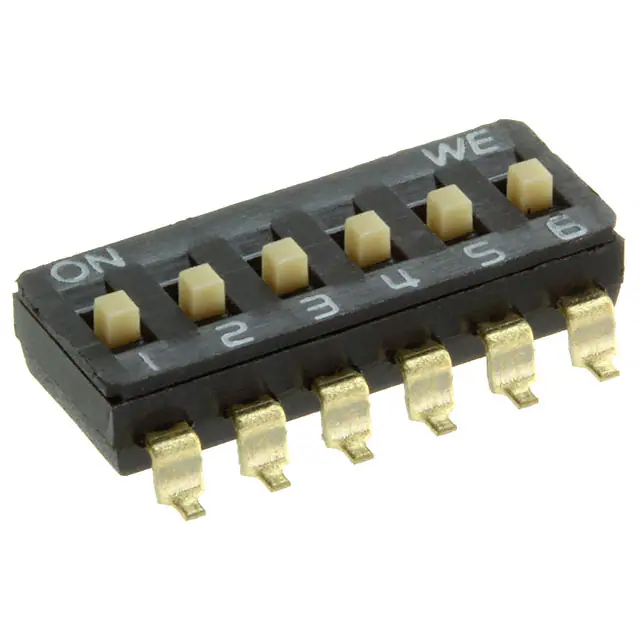

418121270806SWITCH SLIDE DIP SPST 0.025A 24V |
1,815 |
|
Datasheet |
WS-DISV | Tape & Reel (TR) | Active | SPST | 6 | 24VDC | Slide (Standard) | Raised | 25mA | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
418217270904ASWITCH SLIDE DIP SPST 0.025A 24V |
3,483 |
|
Datasheet |
WS-DITU | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Raised | 25mA | Copper Alloy | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
