DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
194-5MSTSWITCH PIANO DIP SPST 0.05A 24V |
747 |
|
Datasheet |
194 | Tube | Active | SPST | 5 | 24VDC | Piano | Raised | 50mA | - | Gold | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
193-4MSSWITCH PIANO DIP SPST 0.05A 24V |
700 |
|
Datasheet |
193 | Tube | Active | SPST | 4 | 24VDC | Piano | Raised | 50mA | - | Gold | 0.359" (9.12mm) | Surface Mount, Right Angle | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|

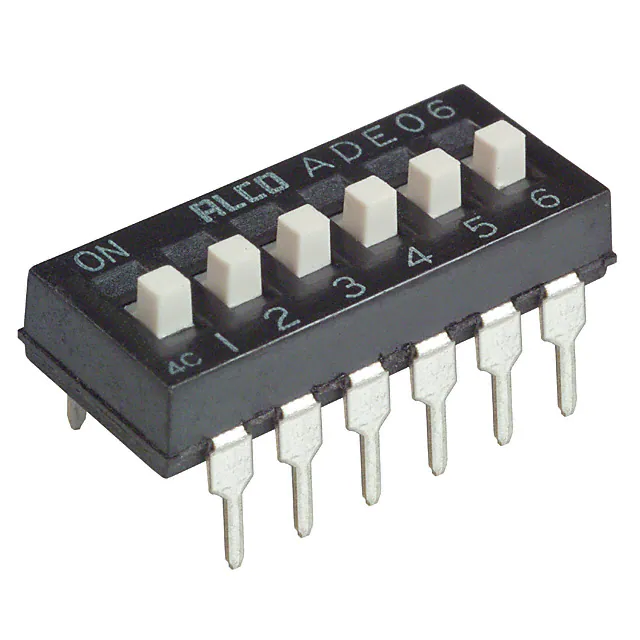

1825057-5SWITCH SLIDE DIP SPST 0.1A 24V |
23,129 |
|
Datasheet |
ADE | Bulk | Active | SPST | 6 | 24VDC | Slide (Standard) | Raised | 100mA | Copper Alloy | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
CHS-01ASWITCH SLIDE DIP SPST 0.1A 6V |
3,772 |
|
Datasheet |
CHS | Bulk | Active | SPST | 1 | 6VDC | Slide (Standard) | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | J Lead | -40°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|
KJ01RTRSWITCH SLIDE DIP SPST 0.025A 24V |
3,727 |
|
Datasheet |
KJ | Tape & Reel (TR) | Active | SPST | 1 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.140" (3.55mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|

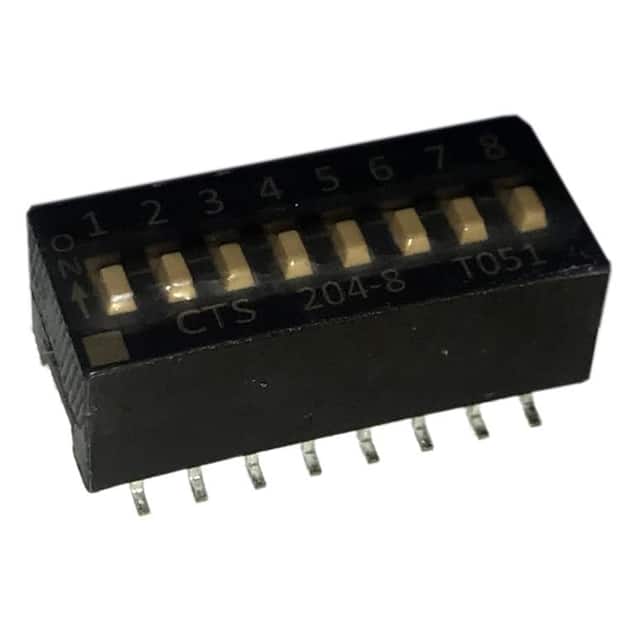

204-8STSWITCH SLIDE DIP SPST 0.05A 24V |
2,763 |
|
Datasheet |
204 | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
DS02C-254-1L-08BESWITCH PIANO DIP SPST 0.025A 24V |
980 |
|
Datasheet |
DS02-254 | Tube | Active | SPST | 8 | 24VDC | Piano | Raised | 25mA | Copper Alloy | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
DS04-254-1-06BK-SMTSWITCH SLIDE DIP SPST 0.025A 24V |
731 |
|
Datasheet |
DS04-254-SMT | Tube | Active | SPST | 6 | 24VDC | Slide (Standard) | Raised | 25mA | Copper Alloy | Gold | 0.189" (4.80mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
A6T-1101SWITCH SLIDE DIP SPST 0.025A 24V |
564 |
|
Datasheet |
A6T | Tray | Active | SPST | 1 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | - | 0.142" (3.60mm) | Through Hole | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|
DS05-127-2-02BK-SMT-TRSWITCH SLIDE DIP SPST 0.025A 24V |
388 |
|
Datasheet |
DS05-127-SMT | Tape & Reel (TR) | Active | SPST | 2 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.094" (2.40mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | - | No |
|
CFS-0401TBSWITCH SLIDE DIP SPST 0.1A 6V |
32,418 |
|
Datasheet |
CFS | Tape & Reel (TR) | Active | SPST | 4 | 6VDC | Slide (Standard) | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
CFS-0403TBSWITCH SLIDE DIP SPST 0.1A 6V |
1,716 |
|
Datasheet |
CFS | Tape & Reel (TR) | Active | SPST | 4 | 6VDC | Slide (Standard) | Raised | 100mA | Copper Alloy | Gold | 0.185" (4.70mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
CFS-0300TASWITCH SLIDE DIP SPST 0.1A 6V |
3,591 |
|
Datasheet |
CFS | Tape & Reel (TR) | Active | SPST | 3 | 6VDC | Slide (Standard) | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.154" (3.90mm) | Surface Mount | J Lead | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
|
193-4MSRSWITCH PIANO DIP SPST 0.05A 24V |
323 |
|
Datasheet |
193 | Tape & Reel (TR) | Active | SPST | 4 | 24VDC | Piano | Raised | 50mA | - | Gold | 0.359" (9.12mm) | Surface Mount, Right Angle | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
194-8MSTSWITCH PIANO DIP SPST 0.05A 24V |
1,276 |
|
Datasheet |
194 | Tube | Active | SPST | 8 | 24VDC | Piano | Raised | 50mA | - | Gold | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
1825190-7SWITCH SHUNT DIP PROGRAMMABLE |
8,840 |
|
Datasheet |
7600 | Tube | Active | Programmable | 8 | - | Breakable (Shunt) | Flush, Recessed | - | Copper Alloy | Tin | 0.079" (2.00mm) | Through Hole | PC Pin | -55°C ~ 105°C | 0.100" (2.54mm), Full | - | Yes |
|
CFS-0400TASWITCH SLIDE DIP SPST 0.1A 6V |
2,766 |
|
Datasheet |
CFS | Tape & Reel (TR) | Active | SPST | 4 | 6VDC | Slide (Standard) | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.154" (3.90mm) | Surface Mount | J Lead | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
A6FR-4101SWITCH PIANO DIP SPST 0.025A 24V |
1,972 |
|
Datasheet |
A6FR | Tube | Active | SPST | 4 | 24VDC | Piano | Flush, Recessed | 25mA | - | - | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|

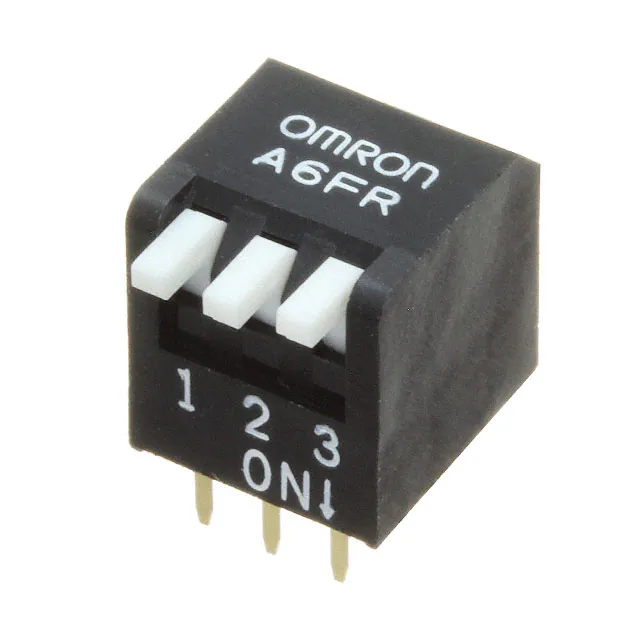

A6FR-3104SWITCH PIANO DIP SPST 0.025A 24V |
1,576 |
|
Datasheet |
A6FR | Tube | Active | SPST | 3 | 24VDC | Piano | Raised | 25mA | - | - | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|
194-6MSTSWITCH PIANO DIP SPST 0.05A 24V |
753 |
|
Datasheet |
194 | Tube | Active | SPST | 6 | 24VDC | Piano | Raised | 50mA | - | Gold | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
