DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DS01C-254-S-09BESWITCH SLIDE DIP SPST 0.025A 24V |
736 |
|
Datasheet |
DS01-254 | Tube | Active | SPST | 9 | 24VDC | Slide (Standard) | Raised | 25mA | Copper Alloy | Gold | 0.264" (6.70mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
DS04-254-1-04BK-SMTSWITCH SLIDE DIP SPST 0.025A 24V |
215 |
|
Datasheet |
DS04-254-SMT | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Raised | 25mA | Copper Alloy | Gold | 0.189" (4.80mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

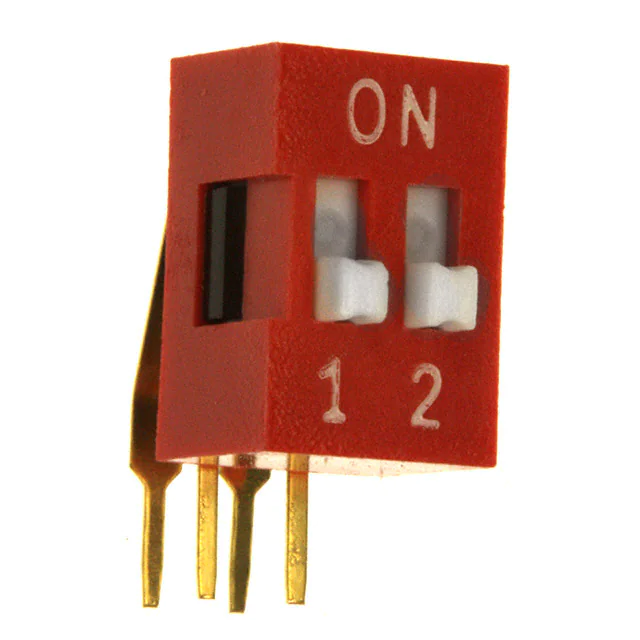

KAS2102ESWITCH SLIDE DIP SPST 0.025A 24V |
1,372 |
|
Datasheet |
KAS | Tube | Active | SPST | 2 | 24VDC | Slide (Standard) | Raised | 25mA | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
206-6SWITCH SLIDE DIP SPST 0.05A 24V |
10,010 |
|
Datasheet |
206 | Tube | Active | SPST | 6 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
DS01C-254-L-10BESWITCH SLIDE DIP SPST 0.025A 24V |
957 |
|
Datasheet |
DS01-254 | Tube | Active | SPST | 10 | 24VDC | Slide (Standard) | Raised | 25mA | Copper Alloy | Gold | 0.264" (6.70mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
CFS-0202TBSWITCH SLIDE DIP SPST 0.1A 6V |
4,886 |
|
Datasheet |
CFS | Tape & Reel (TR) | Active | SPST | 2 | 6VDC | Slide (Standard) | Raised | 100mA | Copper Alloy | Gold | 0.169" (4.30mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
CFS-0203TBSWITCH SLIDE DIP SPST 0.1A 6V |
2,531 |
|
Datasheet |
CFS | Tape & Reel (TR) | Active | SPST | 2 | 6VDC | Slide (Standard) | Raised | 100mA | Copper Alloy | Gold | 0.185" (4.70mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

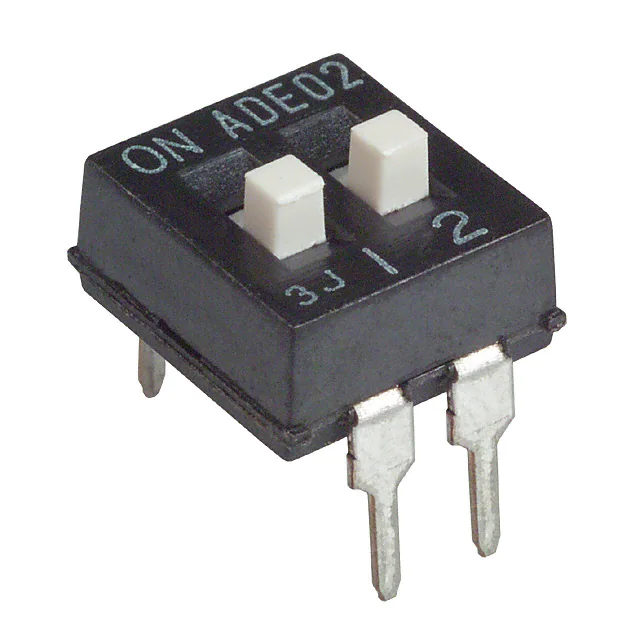

1825057-1SWITCH SLIDE DIP SPST 0.1A 24V |
100,850 |
|
Datasheet |
ADE | Tube | Active | SPST | 2 | 24VDC | Slide (Standard) | Raised | 100mA | Copper Alloy | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
418117270904SWITCH SLIDE DIP SPST 0.025A 24V |
652 |
|
Datasheet |
WS-DITV | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Raised | 25mA | - | Gold | 0.189" (4.80mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
219-4MSTRFSWITCH SLIDE DIP SPST 0.1A 20V |
397 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 4 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
195-6MSTSWITCH PIANO DIP SPST 0.05A 24V |
5,214 |
|
Datasheet |
195 | Tube | Active | SPST | 6 | 24VDC | Piano | Raised | 50mA | - | Tin | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
.jpg)
|
219-6LPSTSWITCH SLIDE DIP SPST 0.1A 20V |
104 |
|
Datasheet |
219 | Tube | Active | SPST | 6 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
418117270902SWITCH SLIDE DIP SPST 0.025A 24V |
818 |
|
Datasheet |
WS-DITV | Tube | Active | SPST | 2 | 24VDC | Slide (Standard) | Raised | 25mA | - | Gold | 0.189" (4.80mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
208-8STSWITCH SLIDE DIP SPST 0.05A 24V |
925 |
|
Datasheet |
208 | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Raised | 50mA | - | Tin | 0.334" (8.48mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
219-7LPSTRSWITCH SLIDE DIP SPST 0.1A 20V |
18,399 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 7 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
219-12LPSTSWITCH SLIDE DIP SPST 0.1A 20V |
11,256 |
|
Datasheet |
219 | Tube | Active | SPST | 12 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
1825057-4SWITCH SLIDE DIP SPST 0.1A 24V |
13,982 |
|
Datasheet |
ADE | Tube | Active | SPST | 5 | 24VDC | Slide (Standard) | Raised | 100mA | Copper Alloy | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
DS04-254-1-05BK-SMTSWITCH SLIDE DIP SPST 0.025A 24V |
1,600 |
|
Datasheet |
DS04-254-SMT | Tube | Active | SPST | 5 | 24VDC | Slide (Standard) | Raised | 25mA | Copper Alloy | Gold | 0.189" (4.80mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
208-10SWITCH SLIDE DIP SPST 0.05A 24V |
1,179 |
|
Datasheet |
208 | Tube | Active | SPST | 10 | 24VDC | Slide (Standard) | Raised | 50mA | - | Tin | 0.334" (8.48mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
194-2MSTSWITCH PIANO DIP SPST 0.05A 24V |
621 |
|
Datasheet |
194 | Tube | Active | SPST | 2 | 24VDC | Piano | Raised | 50mA | - | Gold | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
