DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
206-7SWITCH SLIDE DIP SPST 0.05A 24V |
8,365 |
|
Datasheet |
206 | Tube | Active | SPST | 7 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
DS01C-254-L-06BESWITCH SLIDE DIP SPST 0.025A 24V |
1,816 |
|
Datasheet |
DS01-254 | Tube | Active | SPST | 6 | 24VDC | Slide (Standard) | Raised | 25mA | Copper Alloy | Gold | 0.264" (6.70mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
DS03-254-02BESWITCH SLIDE DIP SPST 0.025A 24V |
1,376 |
|
Datasheet |
DS03-254 | Tube | Active | SPST | 2 | 24VDC | Slide (Standard) | Raised | 25mA | Copper Alloy | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
DS04-254-2-04BK-SMT-TRSWITCH SLIDE DIP SPST 0.025A 24V |
7,502 |
|
Datasheet |
DS04-254-SMT | Tape & Reel (TR) | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.167" (4.25mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
DS04-254-1-01BK-SMTSWITCH SLIDE DIP SPST 0.025A 24V |
5,180 |
|
Datasheet |
DS04-254-SMT | Tube | Active | SPST | 1 | 24VDC | Slide (Standard) | Raised | 25mA | Copper Alloy | Gold | 0.189" (4.80mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
1825360-3SWITCH SLIDE DIP SPST 0.1A 24V |
35,922 |
|
Datasheet |
ADE | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Raised | 100mA | Copper Alloy | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
206-3SWITCH SLIDE DIP SPST 0.05A 24V |
3,028 |
|
Datasheet |
206 | Tube | Active | SPST | 3 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
210-6MSSWITCH SLIDE DIP SPST 0.1A 20V |
1,528 |
|
Datasheet |
210 | Tube | Active | SPST | 6 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|

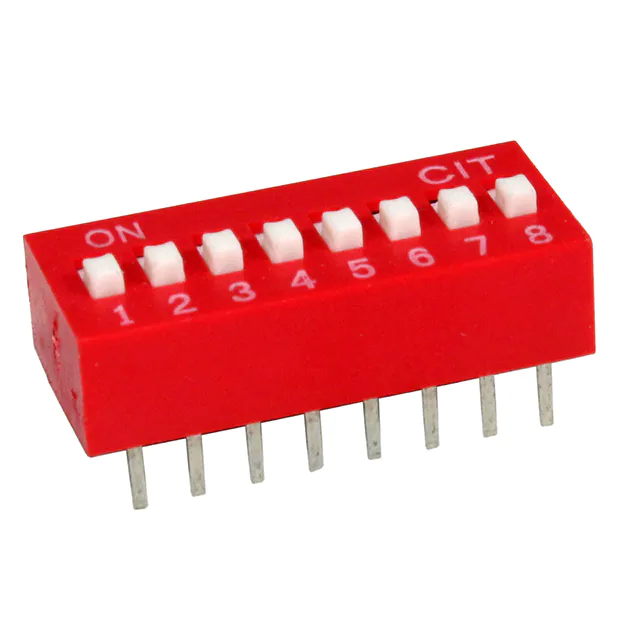

KG08ESWITCH SLIDE DIP SPST 0.025A 24V |
3,878 |
|
Datasheet |
KG | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Raised | 25mA | Phosphor Bronze | Gold | 0.258" (6.55mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
209-4LPSTSWITCH SLIDE DIP SPST 0.1A 20V |
2,077 |
|
Datasheet |
209 | Tube | Active | SPST | 4 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|

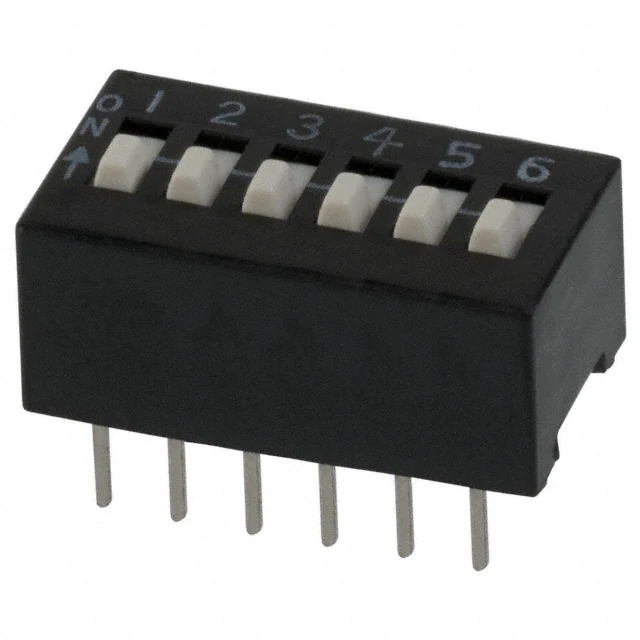

208-6SWITCH SLIDE DIP SPST 0.05A 24V |
2,045 |
|
Datasheet |
208 | Tube | Active | SPST | 6 | 24VDC | Slide (Standard) | Raised | 50mA | - | Tin | 0.334" (8.48mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
CFS-0103TBSWITCH SLIDE DIP SPST 0.1A 6V |
3,113 |
|
Datasheet |
CFS | Tape & Reel (TR) | Active | SPST | 1 | 6VDC | Slide (Standard) | Raised | 100mA | Copper Alloy | Gold | 0.185" (4.70mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
210-8MSSWITCH SLIDE DIP SPST 0.1A 20V |
2,850 |
|
Datasheet |
210 | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
ADEN02STU04SWITCH SLIDE DIP SPST 0.025A 24V |
3,709 |
|
Datasheet |
ADE | Tube | Active | SPST | 2 | 24VDC | Slide (Standard) | Raised | 25mA | Beryllium Copper | Gold | 0.179" (4.55mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

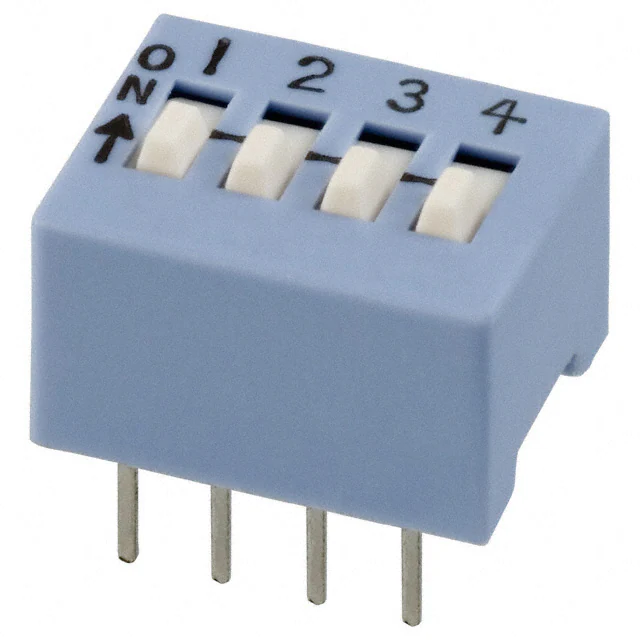

206-4SWITCH SLIDE DIP SPST 0.05A 24V |
1,583 |
|
Datasheet |
206 | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
206-5SWITCH SLIDE DIP SPST 0.05A 24V |
7,642 |
|
Datasheet |
206 | Tube | Active | SPST | 5 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
204-6STSWITCH SLIDE DIP SPST 0.05A 24V |
28,220 |
|
Datasheet |
204 | Tube | Active | SPST | 6 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
206-3STSWITCH SLIDE DIP SPST 0.05A 24V |
7,031 |
|
Datasheet |
206 | Tube | Active | SPST | 3 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
219-4LPSTRFSWITCH SLIDE DIP SPST 0.1A 20V |
3,334 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 4 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
DS01C-254-L-09BESWITCH SLIDE DIP SPST 0.025A 24V |
936 |
|
Datasheet |
DS01-254 | Tube | Active | SPST | 9 | 24VDC | Slide (Standard) | Raised | 25mA | Copper Alloy | Gold | 0.264" (6.70mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
