DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
206-211STSWITCH SLIDE DIP DPST 0.05A 24V |
5,280 |
|
Datasheet |
206 | Tube | Active | DPST | 1 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
204-2STSWITCH SLIDE DIP SPST 0.05A 24V |
1,353 |
|
Datasheet |
204 | Tube | Active | SPST | 2 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
194-3MSTSWITCH PIANO DIP SPST 0.05A 24V |
3,050 |
|
Datasheet |
194 | Tube | Active | SPST | 3 | 24VDC | Piano | Raised | 50mA | - | Gold | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
DS04-254-2-06BK-SMTSWITCH SLIDE DIP SPST 0.025A 24V |
1,008 |
|
Datasheet |
DS04-254-SMT | Tube | Active | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.167" (4.25mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
418117270903SWITCH SLIDE DIP SPST 0.025A 24V |
259 |
|
Datasheet |
WS-DITV | Tube | Active | SPST | 3 | 24VDC | Slide (Standard) | Raised | 25mA | - | Gold | 0.189" (4.80mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
1825058-1SWITCH SLIDE DIP SPST 0.1A 24V |
3,579 |
|
Datasheet |
ADE | Bulk | Active | SPST | 2 | 24VDC | Slide (Standard) | Raised | 100mA | Copper Alloy | Gold | 0.217" (5.50mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
CJS-1200ASWITCH SLIDE SPDT 100MA 6V |
142 |
|
Datasheet |
CJS | Bulk | Active | SPDT | - | - | Flush | - | 100mA | Copper Alloy | Gold | - | Surface Mount | J Lead | -40°C ~ 85°C | - | Tape Seal | - |
|
204-5STSWITCH SLIDE DIP SPST 0.05A 24V |
10,472 |
|
Datasheet |
204 | Tube | Active | SPST | 5 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
.jpg)
|
219-6LPSTRSWITCH SLIDE DIP SPST 0.1A 20V |
3,263 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 6 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|

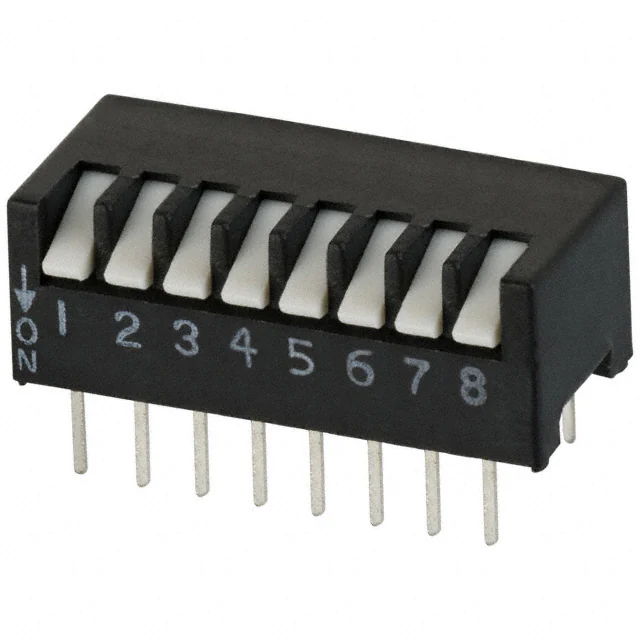

195-8MSTSWITCH PIANO DIP SPST 0.05A 24V |
8,691 |
|
Datasheet |
195 | Tube | Active | SPST | 8 | 24VDC | Piano | Raised | 50mA | - | Tin | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|

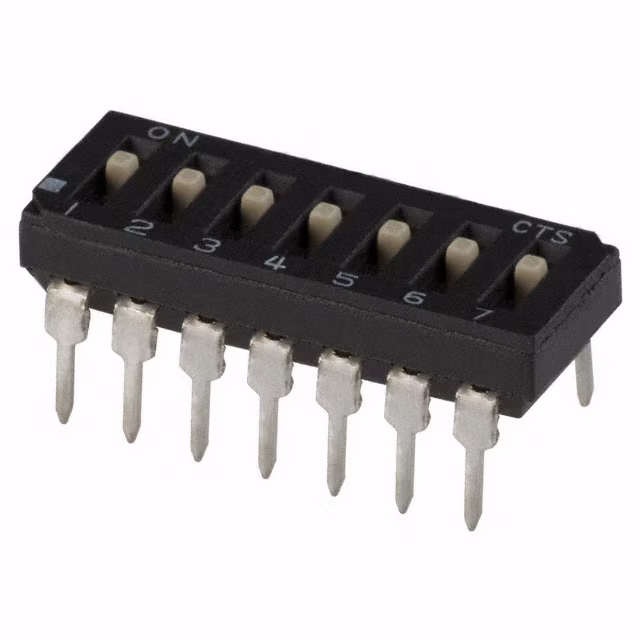

209-7LPSTSWITCH SLIDE DIP SPST 0.1A 20V |
1,313 |
|
Datasheet |
209 | Tube | Active | SPST | 7 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
219-7LPSTRFSWITCH SLIDE DIP SPST 0.1A 20V |
5,562 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 7 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
219-7MSTSWITCH SLIDE DIP SPST 0.1A 20V |
2,424 |
|
Datasheet |
219 | Tube | Active | SPST | 7 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
DS04-254-1L-08BKSWITCH SLIDE DIP SPST 0.025A 24V |
718 |
|
Datasheet |
DS04-254 | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Raised | 25mA | Copper Alloy | Gold | 0.166" (4.21mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

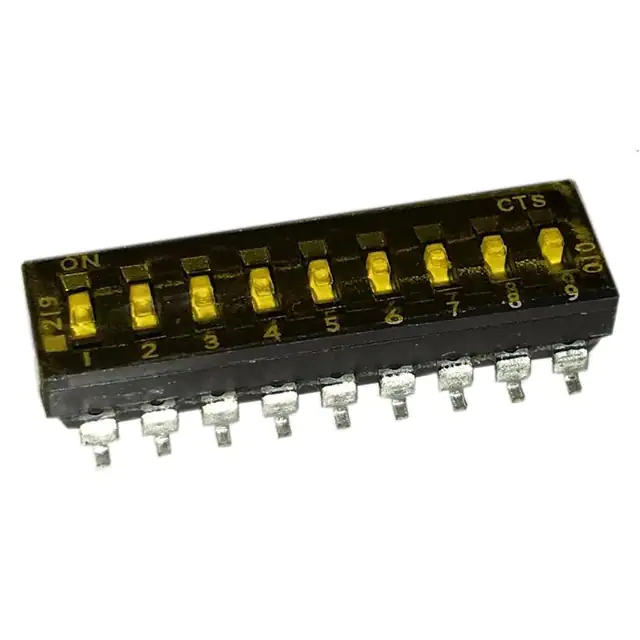

219-9LPSTSWITCH SLIDE DIP SPST 0.1A 20V |
7,247 |
|
Datasheet |
219 | Tube | Active | SPST | 9 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
SDA02H1BDSWITCH SLIDE DIP SPST 0.025A 24V |
33,248 |
|
Datasheet |
SDA | Tube | Active | SPST | 2 | 24VDC | Slide (Standard) | Raised | 25mA | Beryllium Copper | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

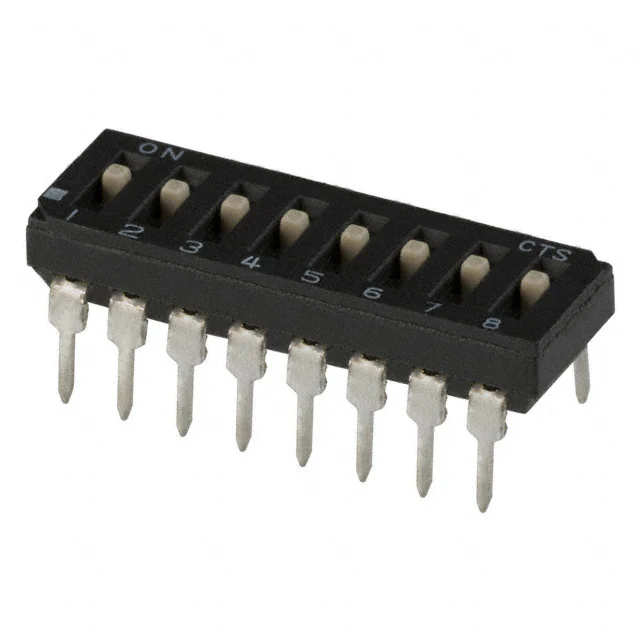

209-8MSSWITCH SLIDE DIP SPST 0.1A 20V |
999 |
|
Datasheet |
209 | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|

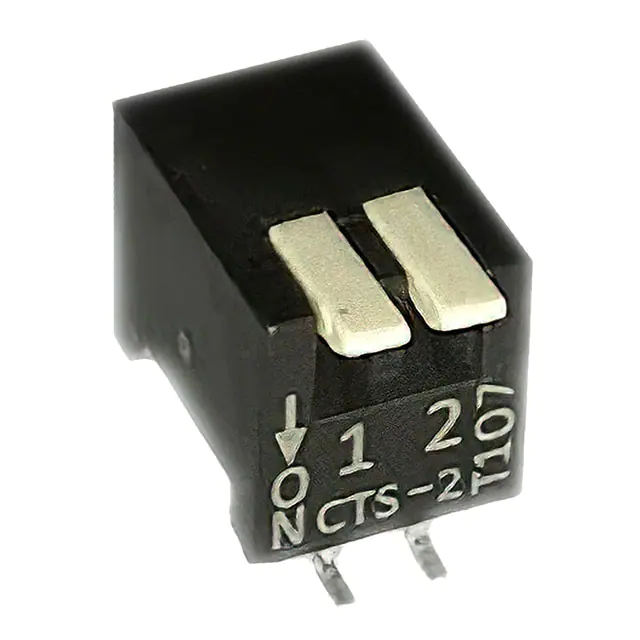

193-2MSSWITCH PIANO DIP SPST 0.05A 24V |
277 |
|
Datasheet |
193 | Tube | Active | SPST | 2 | 24VDC | Piano | Raised | 50mA | - | Gold | 0.359" (9.12mm) | Surface Mount, Right Angle | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
|
209-8LPSTSWITCH SLIDE DIP SPST 0.1A 20V |
2,892 |
|
Datasheet |
209 | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
DS03-254-04BESWITCH SLIDE DIP SPST 0.025A 24V |
2,087 |
|
Datasheet |
DS03-254 | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Raised | 25mA | Copper Alloy | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
