DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KAS2102ETSWITCH SLIDE DIP SPST 0.025A 24V |
23,250 |
|
Datasheet |
KAS | Tube | Active | SPST | 2 | 24VDC | Slide (Standard) | Raised | 25mA | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
206-214SWITCH SLIDE DIP DPST 0.05A 24V |
848 |
|
Datasheet |
206 | Tube | Active | DPST | 4 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
.jpg)
|
219-10MSTRSWITCH SLIDE DIP SPST 0.1A 20V |
3,605 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 10 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
DS04-254-1-08BK-SMTSWITCH SLIDE DIP SPST 0.025A 24V |
407 |
|
Datasheet |
DS04-254-SMT | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Raised | 25mA | Copper Alloy | Gold | 0.189" (4.80mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
418117270906SWITCH SLIDE DIP SPST 0.025A 24V |
468 |
|
Datasheet |
WS-DITV | Tube | Active | SPST | 6 | 24VDC | Slide (Standard) | Raised | 25mA | - | Gold | 0.189" (4.80mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
4-1825059-1SWITCH SLIDE DIP SPST 0.025A 24V |
27,675 |
|
Datasheet |
ADF | Bulk | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.177" (4.50mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
A6T-1104SWITCH SLIDE DIP SPST 0.025A 24V |
5,042 |
|
Datasheet |
A6T | Tray | Active | SPST | 1 | 24VDC | Slide (Standard) | Raised | 25mA | - | - | 0.165" (4.20mm) | Through Hole | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|
KAS2104ESWITCH SLIDE DIP SPST 0.025A 24V |
3,511 |
|
Datasheet |
KAS | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Raised | 25mA | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
KC1901ASWITCH ROTARY DIP SP9T 0.1A 16V |
2,034 |
|
Datasheet |
KC1901 | Bulk | Active | SP9T | 9 | 16VDC | Rotary with Shaft | Raised | 100mA | Copper Alloy | Silver | 0.386" (9.80mm) | Through Hole | PC Pin | - | 0.100" (2.54mm), Full | - | No |
|
SDA03H1BDSWITCH SLIDE DIP SPST 0.025A 24V |
1,716 |
|
Datasheet |
SDA | Tube | Active | SPST | 3 | 24VDC | Slide (Standard) | Raised | 25mA | Beryllium Copper | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
1-1825059-7SWITCH SLIDE DIP SPST 0.025A 24V |
13,840 |
|
Datasheet |
ADF | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.177" (4.50mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|

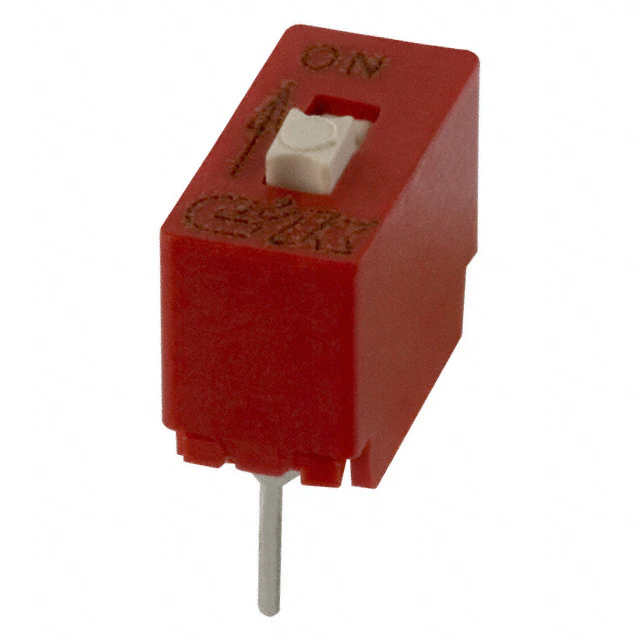

BD01SWITCH SLIDE DIP SPST 0.1A 5V |
944 |
|
Datasheet |
BD | Tube | Active | SPST | 1 | 5VDC | Slide (Standard) | Raised | 100mA | Phosphor Bronze | Gold | 0.297" (7.54mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|

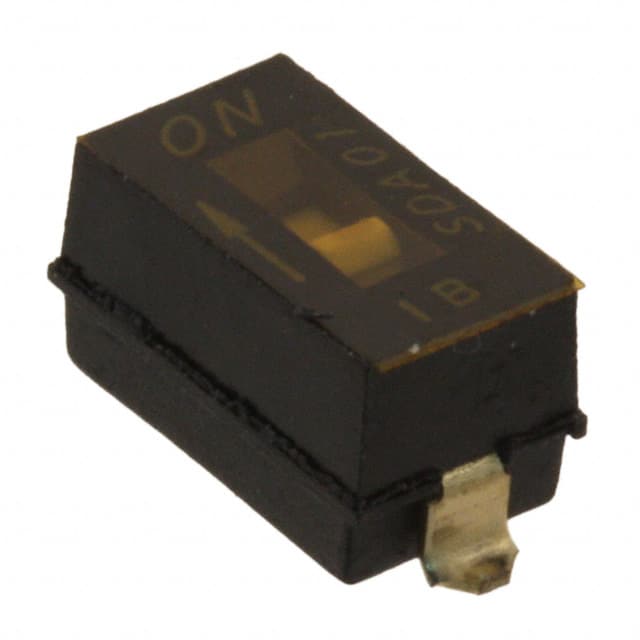

SDA01H0SBSWITCH SLIDE DIP SPST 0.025A 24V |
67,343 |
|
Datasheet |
SDA | Tube | Active | SPST | 1 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
SDA01H0BDSWITCH SLIDE DIP SPST 0.025A 24V |
10,928 |
|
Datasheet |
SDA | Tube | Active | SPST | 1 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.183" (4.65mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

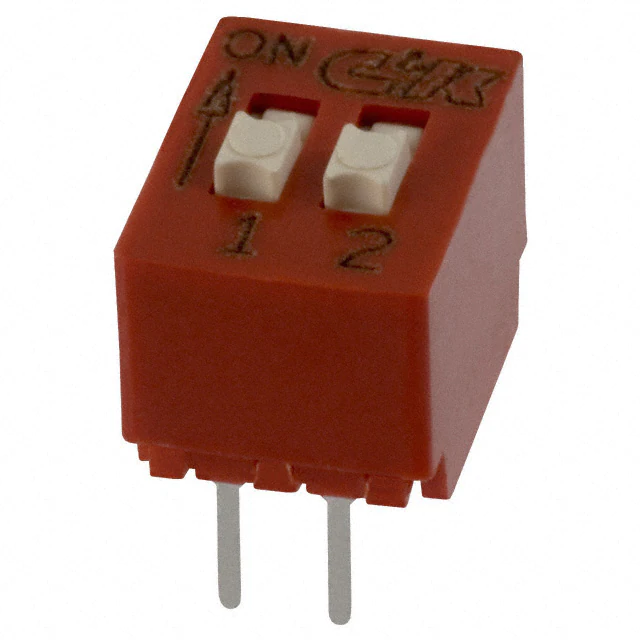

BD02SWITCH SLIDE DIP SPST 0.1A 5V |
3,303 |
|
Datasheet |
BD | Tube | Active | SPST | 2 | 5VDC | Slide (Standard) | Raised | 100mA | Phosphor Bronze | Gold | 0.297" (7.54mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
DS03-254-08BESWITCH SLIDE DIP SPST 0.025A 24V |
178 |
|
Datasheet |
DS03-254 | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Raised | 25mA | Copper Alloy | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
219-12MSTSWITCH SLIDE DIP SPST 0.1A 20V |
1,644 |
|
Datasheet |
219 | Tube | Active | SPST | 12 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
A6FR-6104SWITCH PIANO DIP SPST 0.025A 24V |
303 |
|
Datasheet |
A6FR | Tube | Active | SPST | 6 | 24VDC | Piano | Raised | 25mA | - | - | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|
206-8RASTSWITCH SLIDE DIP SPST 0.05A 24V |
2,107 |
|
Datasheet |
206RA | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
DS05-127-2-06BK-SMT-TRSWITCH SLIDE DIP SPST 0.025A 24V |
1,557 |
|
Datasheet |
DS05-127-SMT | Tape & Reel (TR) | Active | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.094" (2.40mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | - | No |
